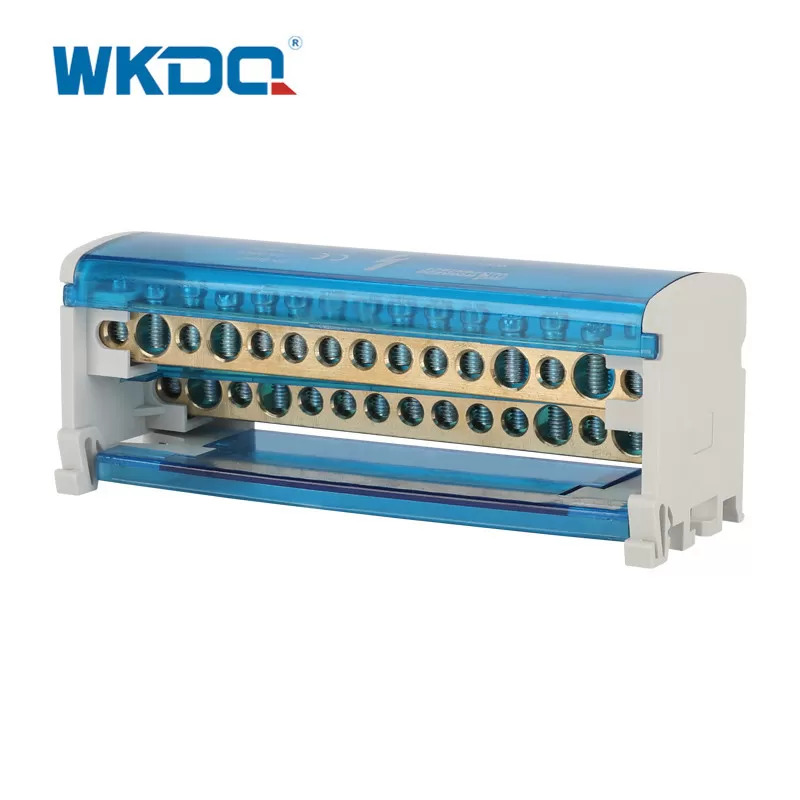

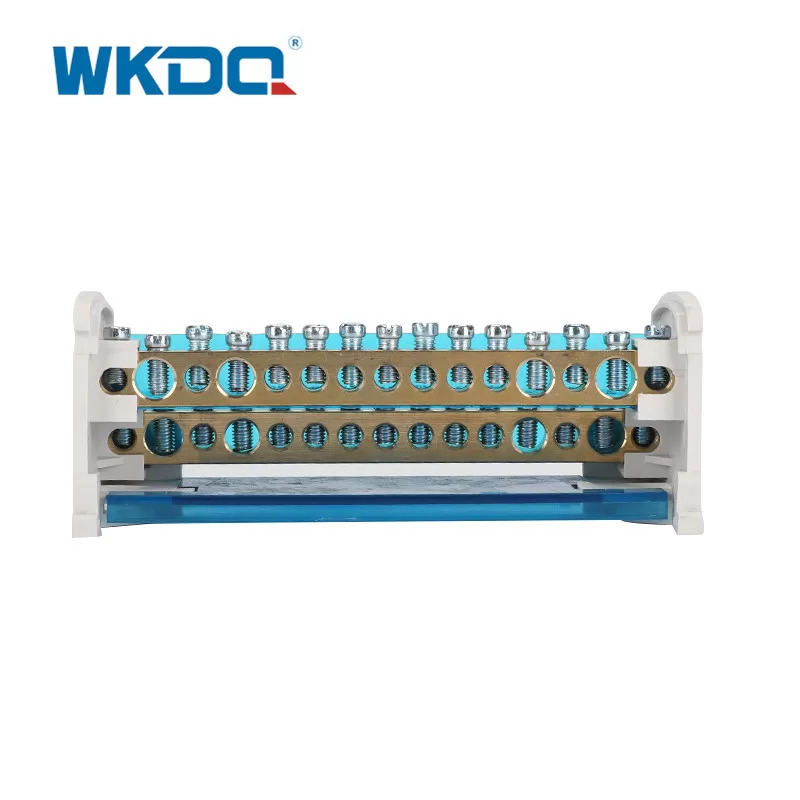

Universal Electric Wire Connector Power Distribution Terminal UK215 Saving Space
  • Universal Electric Wire Connector Power Distribution Terminal UK215 Saving SpaceUniversal Electric Wire Connector Power Distribution Terminal UK215 Saving Space
  • Universal Electric Wire Connector Power Distribution Terminal UK215 Saving SpaceUniversal Electric Wire Connector Power Distribution Terminal UK215 Saving Space
  • Universal Electric Wire Connector Power Distribution Terminal UK215 Saving SpaceUniversal Electric Wire Connector Power Distribution Terminal UK215 Saving Space
  • Universal Electric Wire Connector Power Distribution Terminal UK215 Saving SpaceUniversal Electric Wire Connector Power Distribution Terminal UK215 Saving Space

Universal Electric Wire Connector Power Distribution Terminal UK215 Saving Space

Place of Origin: China
Brand Name: WONKEDQ,WKDQ
Certification: CE, RoHs, CQC,etc
Model Number: WKH 215
Packaging Details: Box
Delivery Time: 2-7 days
Payment Terms: T/T, Paypal, Western Union, etc

Send Inquiry

Product Description
Origin: Made In China Logo: LOGO Can Be Customized
Color: Grey Blue Connecting: Screw Terminal Blocks
Type: One Pole In, Multiple Output Material: Inflaming Retarding PA66
Design: Saving Space
High Light: terminal block distributor , connection distribution block


Distribution blocks are used in various industries:

Heating/cooling for operating heaters, cooling systems and ventilation equipment.

Power distribution control in the form of voltage transformers, uninterrupted power supply units and distribution cabinets.

Solar, wind and turbine as the power supply to distribute energy.

Electrical vehicles for charging stations.

Electronic automation, including elevators, lifting equipment and conveyor systems.

Connection bars: brass

Rated insulation voltage: 500V

High safety.

Brass Conductor.

Simple and quick operating.

Professional power design.

Convenient single pole or multi-poles distribution.

Panel space saving: save up to 50 % rail space.

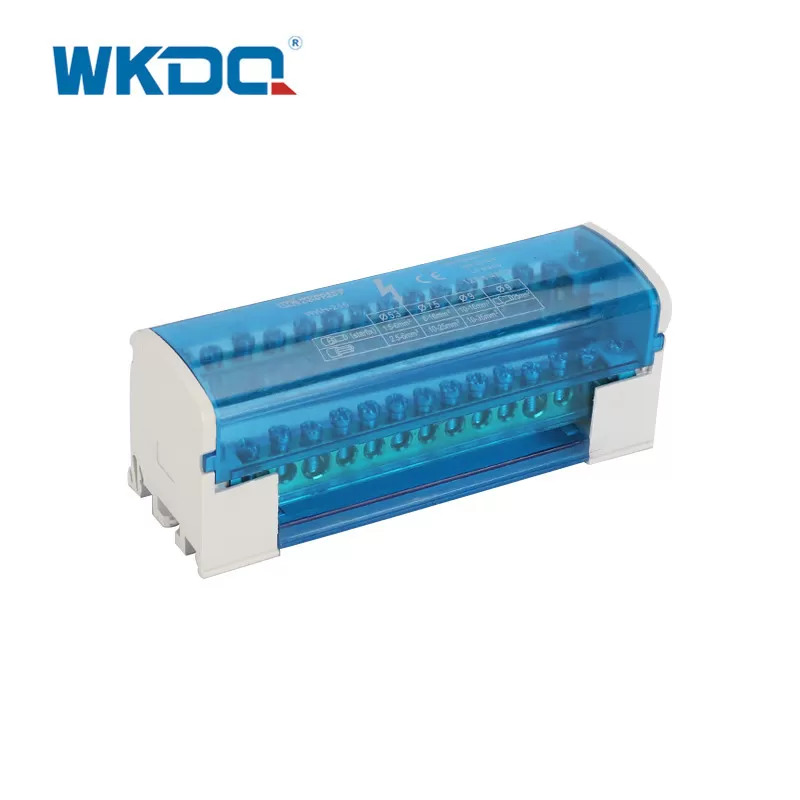

Waterproof IP 20 with removable transparent cover.

Separate incoming and outgoing,distinguish internal cable clearly.

There are fence between the terminals to prevent contact and short circuit.

Increased productivity thanks to reduced wiring, inventories, hardware and assembly costs.

Single or multiple pole configurations in the most compact footprint. Allows users to build smaller or higher density panels.

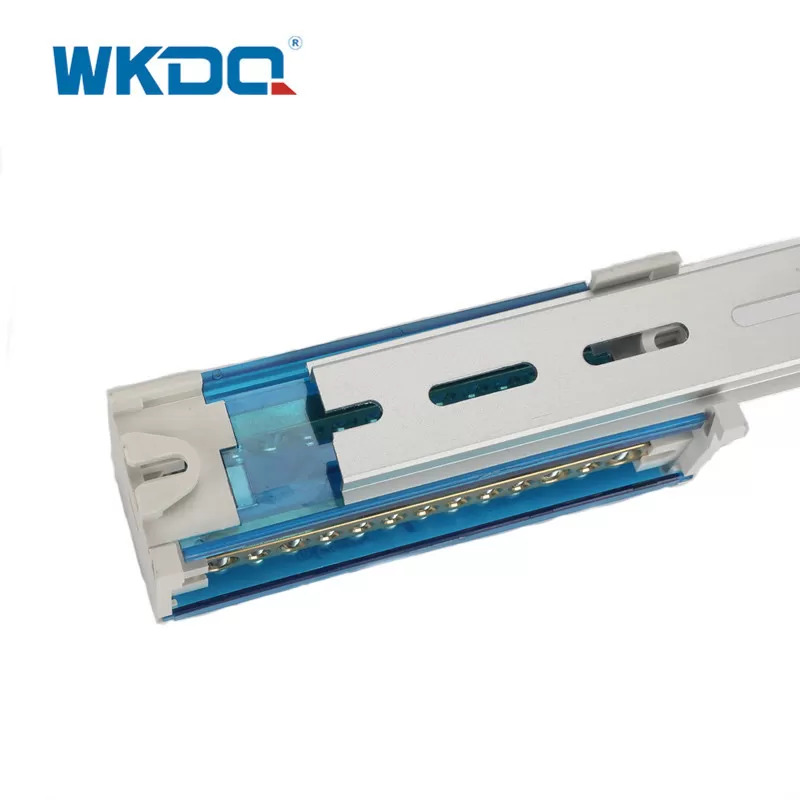

Easy and ergonomic mounting on DIN Rail

Faster to wire than conventional busbar systems, for a cleaner and more professional installation


TECHNICAL PARAMETERS

Model No. WKH 215
Color Blue and Gray
Length/Height/Wide (mm) 134/50/45
Connection method Screw connection
Material Flame resistant Nylon PA66, brass conductor
Rated Voltage/Current 500V/125A
Quantity of Hole 2X15
Dimension for Brass Conductor 6.5*12mm
Mounting Type DIN Rail NS 35
Standard IEC 60947-7-1
LOGO WonkeDQ, LOGO can be customized
Certification CE/RoHS/CQC/ISO 9001
