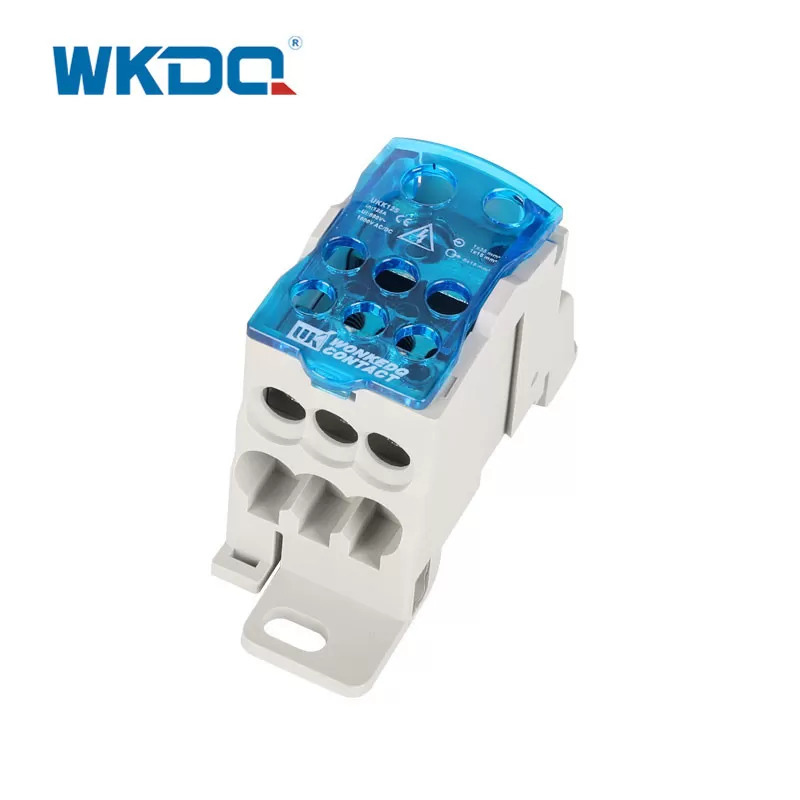

Din Rail UKK 125A Unipolar Mini Electrical Power Distribution Terminal Block , Screw Connector Block In Blue and Grey
Place of Origin: China
Brand Name: WONKEDQ，WKDQ
Certification: CE, RoHs, CQC,etc
Model Number: UKK 125A
Packaging Details: Box
Delivery Time: 2-7 days
Payment Terms: T/T, Paypal, Western Union, etc
Send Inquiry
Product Description
| Place Of Origin: | China | Logo: | Customized Logo Is Available |
| Color: | Grey+Blue | Connecting: | Screw Terminal Blocks |
| Type: | DIN Rail Terminal Blocks. | ||
| High Light: | power distribution terminal block , connection distribution block | ||
Electrical power distribution terminal blocks are extensively utilized for distributing power in various applications. They offer a convenient, cost-effective, and safe solution for distributing power from a single input source to multiple outputs. These terminal blocks come equipped with a removable main cover, providing easy access for maintenance and installation purposes. With high conductivity and excellent electrical contacts, they ensure efficient power distribution with minimal energy loss.Simple and Safety Operating.
Compact design.
High safety.
Blue and Grey color.
Standard specification.
Profession power design.
Safe and stable performance.
Made from safe and high quality material.
Brass crimping frame for better conductivity.
Reasonable Design save the installation space.

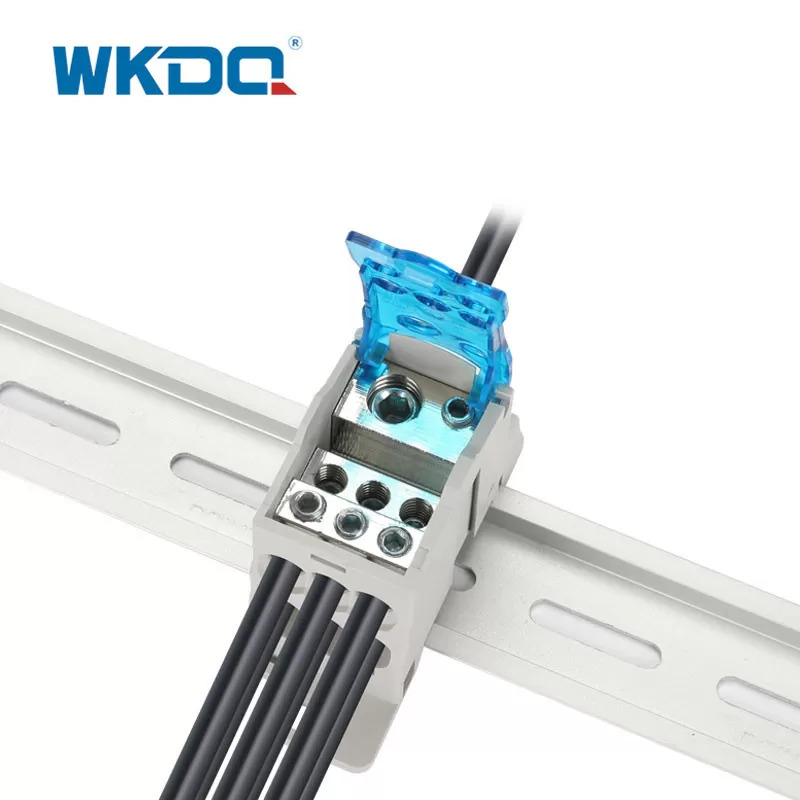

Install on 35mm wide DIN rail or chassis mounting with screws.
With Dust-proof and insulation cover.

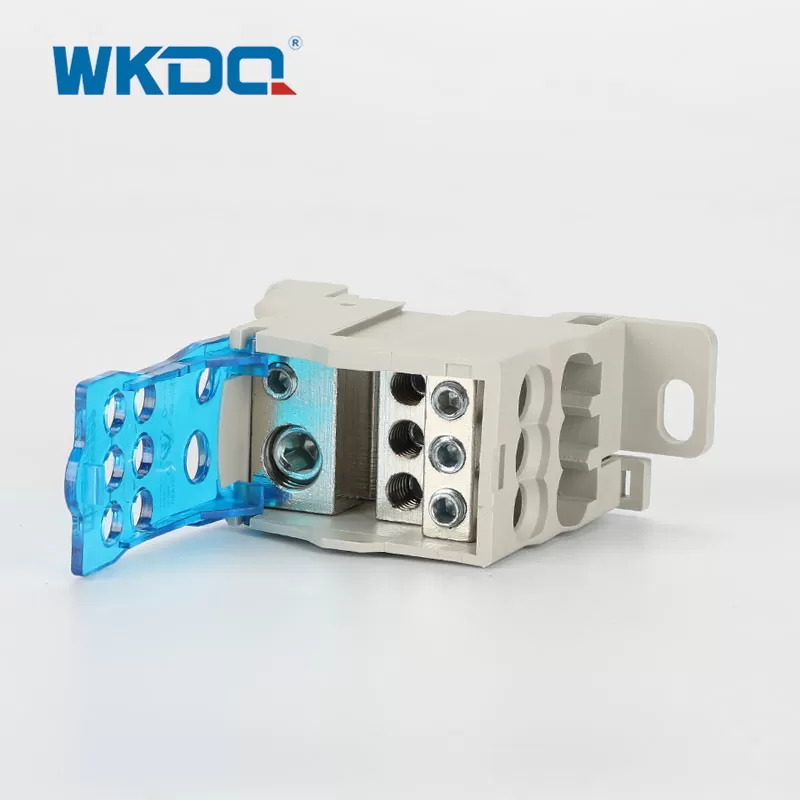

Hinged design with safety removable cover.
TECHNICAL PARAMETERS
| Model No. | UKK 125A |
| Color | Blue and Gray |
| Length/Height/Wide (mm) | 29.4/47/74 |
| Connection method | Screw connection |
| Material | Flame resistant Nylon PA66, brass conductor |
| Rated Voltage/Current | 690V/125A |
| Entry Specification | 1X16 /1X35mm² |
| Output Specification | 6X16 mm² |
| Mounting Type | DIN Rail NS 35 |
| Standard | IEC 60947-7-1 |
| LOGO | WonkeDQ, LOGO can be customized |
| Certification | CE/RoHS/CQC/ISO 9001 |
Hot Tags: Din Rail UKK 125A Unipolar Mini Electrical Power Distribution Terminal Block , Screw Connector Block In Blue and Grey, Manufacturers, Suppliers, China, Factory, Free Sample, In stock, Customized
