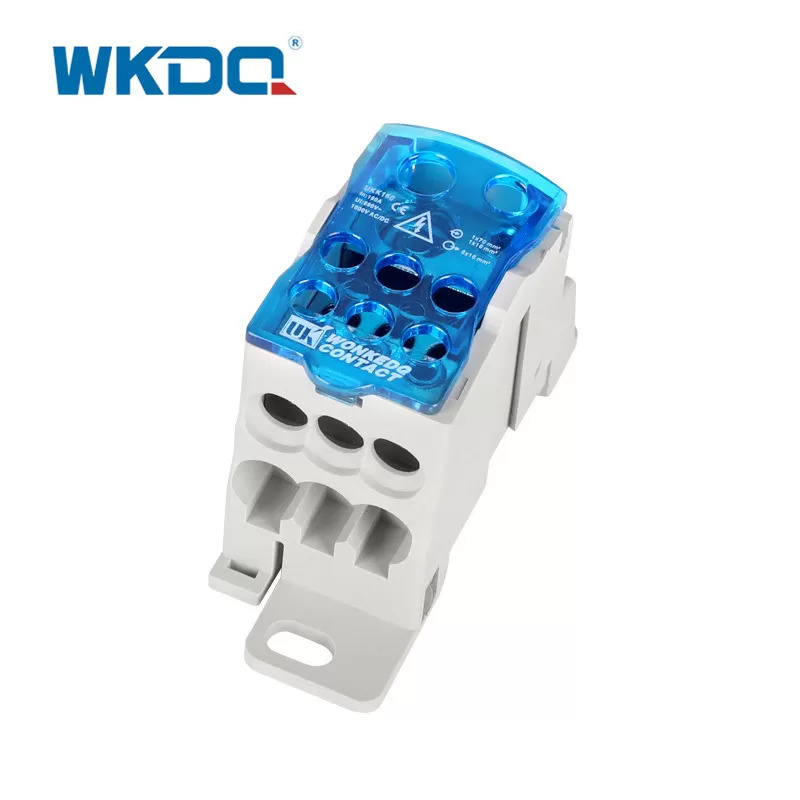

Junction Distribution Box UKK 160A Power Block Distributor With Transparent Cover

Place of Origin: China
Brand Name: WONKEDQ，WKDQ
Certification: CE, RoHs, CQC,etc
Model Number: UKK 160A
Packaging Details: Box
Delivery Time: 2-7 days
Payment Terms: T/T, Paypal, Western Union, etc

Send Inquiry

Product Description

Place Of Origin:	China	Logo:	Customized Logo Is Available
Detail:	With Transparent Cover	Connecting:	Screw Terminal Blocks, Equivalent To LEIPO
Type:	DIN Mount Type Terminal Blocks.	Connectors:	One In Several Out
Brand:	WONKEDQ CONTACT
High Light:	power distribution terminal block , terminal block distributor

Din Rail Unipolar Junction Box Water Proof Terminal Block plays an important part in power distribution industrial. Products with excellent electrical contact, visual confirmation and inspection of wire connection easily.

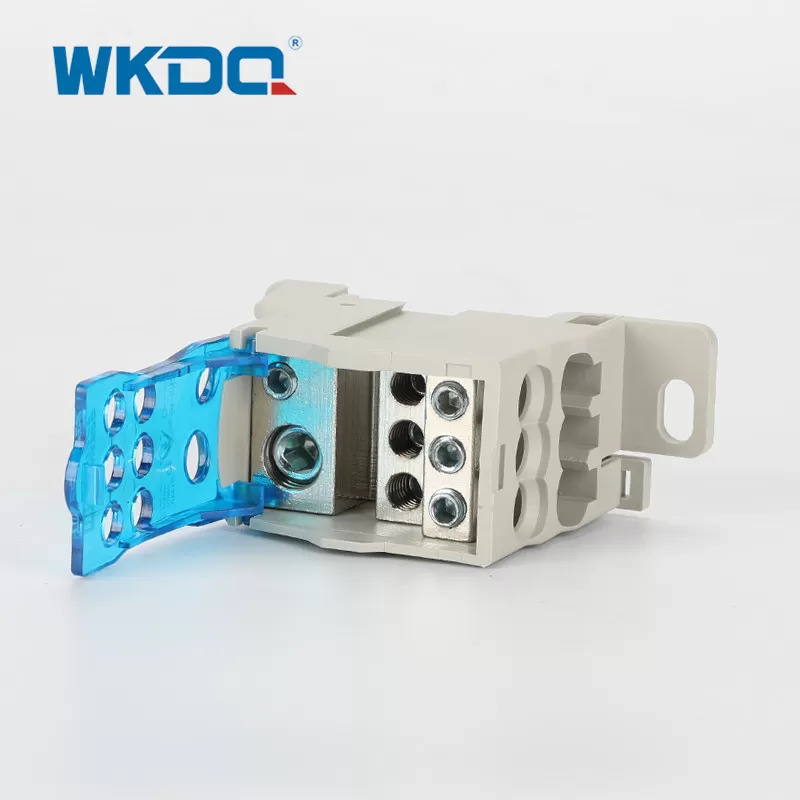

Compact, hinged removable cover.

High safety.

Blue and Grey color.

Simple and quick operating.

Profession power design.

Safe and stable performance.

Made from safe and high quality material.

Brass crimping frame for better conductivity.

Reasonable Design save the installation space.

IP20, finger-safe body.

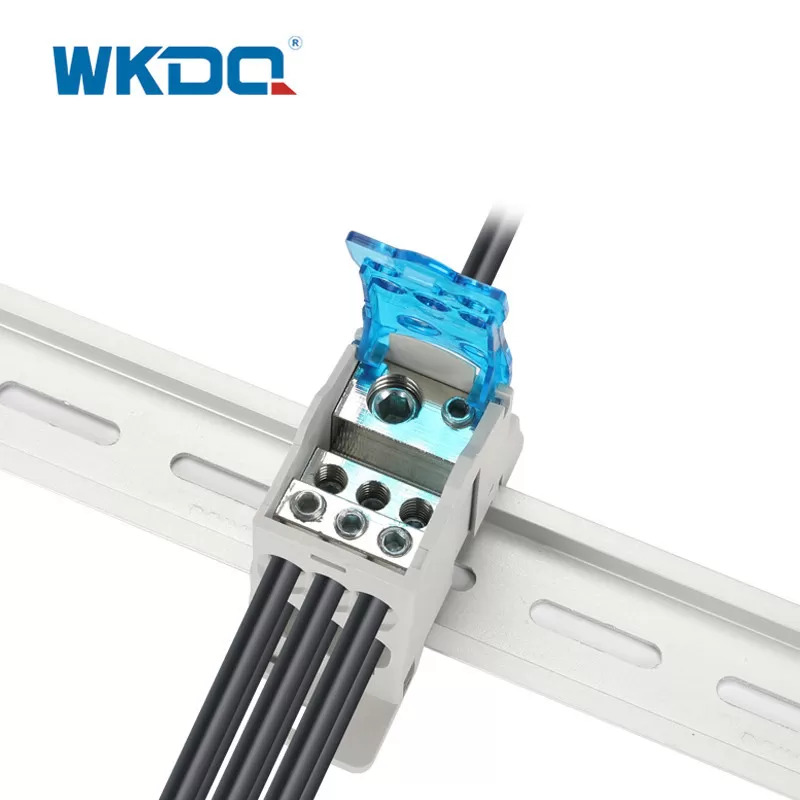

Clip-on DIN Rail or fixed by screw on board directly.

CE, RoHS complaint, halogen free.

TECHNICAL PARAMETERS

Model No.	UKK 160A
Color	Blue and Gray
Length/Height/Wide (mm)	29.4/47/74
Connection method	Screw connection
Material	Flame resistant Nylon PA66, brass conductor
Rated Voltage/Current	690V/160A
Entry Specification	1X16 /1X70mm²
Output Specification	6X16 mm²
Mounting Type	DIN Rail NS 35
Standard	IEC 60947-7-1
LOGO	WonkeDQ, LOGO can be customized
Certification	CE/RoHS/CQC/ISO 9001
