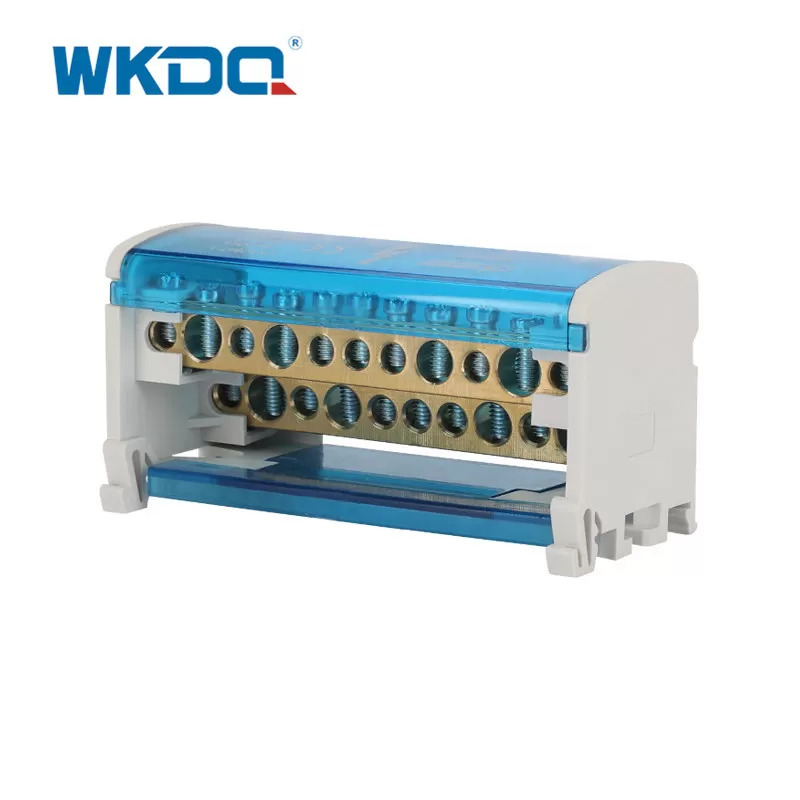

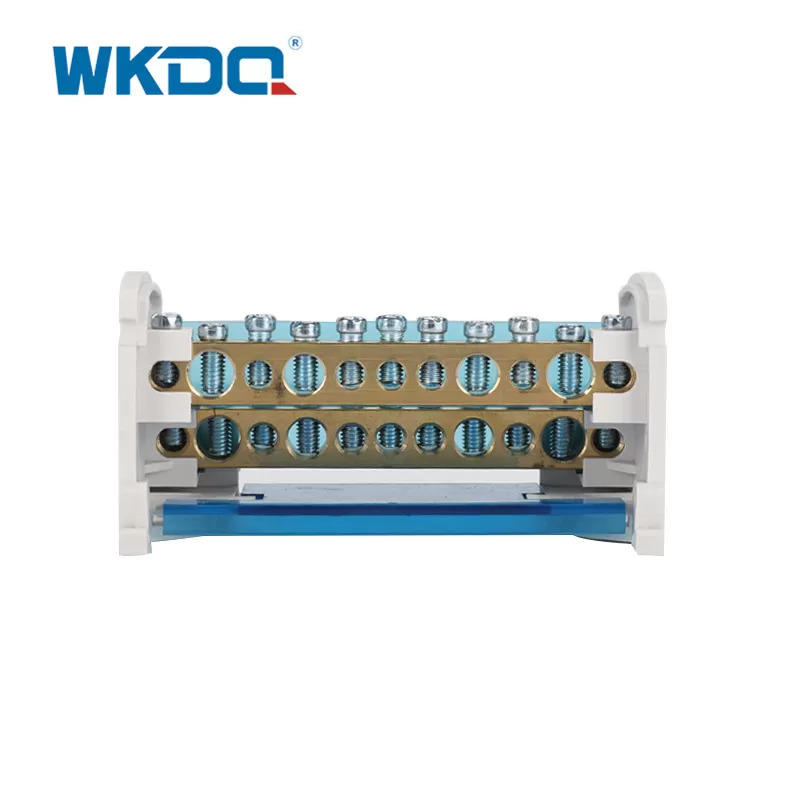

UK 211 DIN Rail Power Distribution Terminal , Electrical Power Distribution Block

The main purpose of a distribution block is to provide efficient power supply to a series of devices. Additionally, it serves as a protective measure by isolating short circuit incidents, preventing complete shutdown of the system. Distribution blocks are designed to handle a wide range of frequencies and currents, making them versatile for various applications.

By utilizing distribution blocks, you only need a single large wire on the input side to connect all the devices back to the power source. This eliminates the need for separate wiring for each individual device, simplifying the installation process and reducing the amount of wiring required. This streamlined approach saves time, effort, and resources.

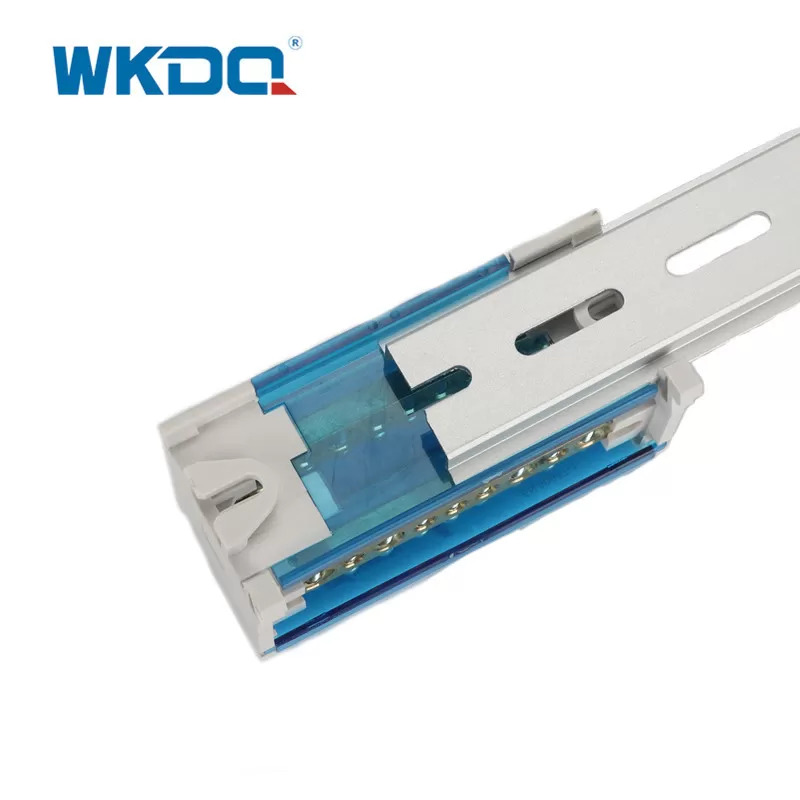

According to the different mounting environment, it can be mounted by standard U-type DIN rail or panel screw mounted.

Brass Conductor.

Simple and quick operating.

Professional power design.

Convenient single pole or multi-poles distribution.

Waterproof IP 20 with removable transparent cover.

Reasonable Design save the installation space.

Separate incoming and outgoing,distinguish internal cable clearly.

There are fence between the terminals to prevent contact and short circuit.

Single or multiple pole configurations in the most compact footprint. Allows users to build smaller or higher density panels.

Increased productivity thanks to reduced wiring, inventories, hardware and assembly costs.

Space saving: compact.

Tinned copper block: high conductivity.

Visual inspection of wire: confirmation of connection.

Hinged or removable cover: easy wiring.

TECHNICAL PARAMETERS
