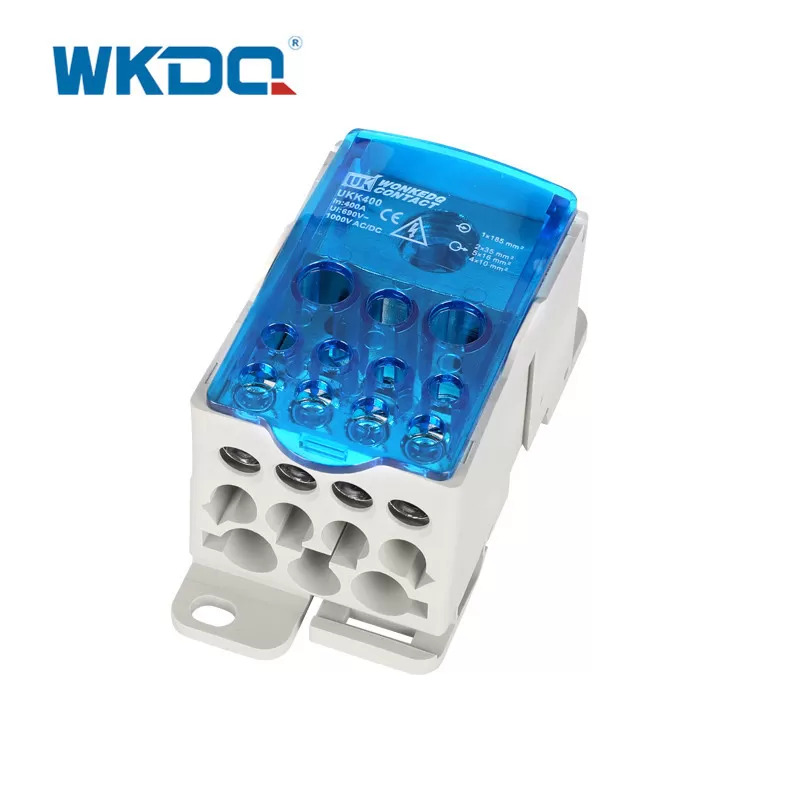

Single Pole UKK 400A Power Distribution Terminal Box EC And RoHS Standards
Place of Origin: China
Brand Name: WONKEDQ，WKDQ
Certification: CE, RoHs, CQC,etc
Model Number: UKK 400A
Packaging Details: Box
Delivery Time: 2-7 days
Payment Terms: T/T, Paypal, Western Union, etc
Send Inquiry
Product Description
| Place Of Origin: | Made In China | Brand: | WONKEDQ CONTACT |
| Color: | Grey+Blue | Connecting: | Screw Terminal Blocks |
| Type: | Power Distribution Terminal Box | ||
| High Light: | power distribution terminal block , connection distribution block | ||
The compact power distribution blocks with protection class IP20.
These sub-distribution blocks have multiple approvals for use with aluminium and copper conductors. Also provides optional custom branding, and custom industrial packaging is also available for product delivery.

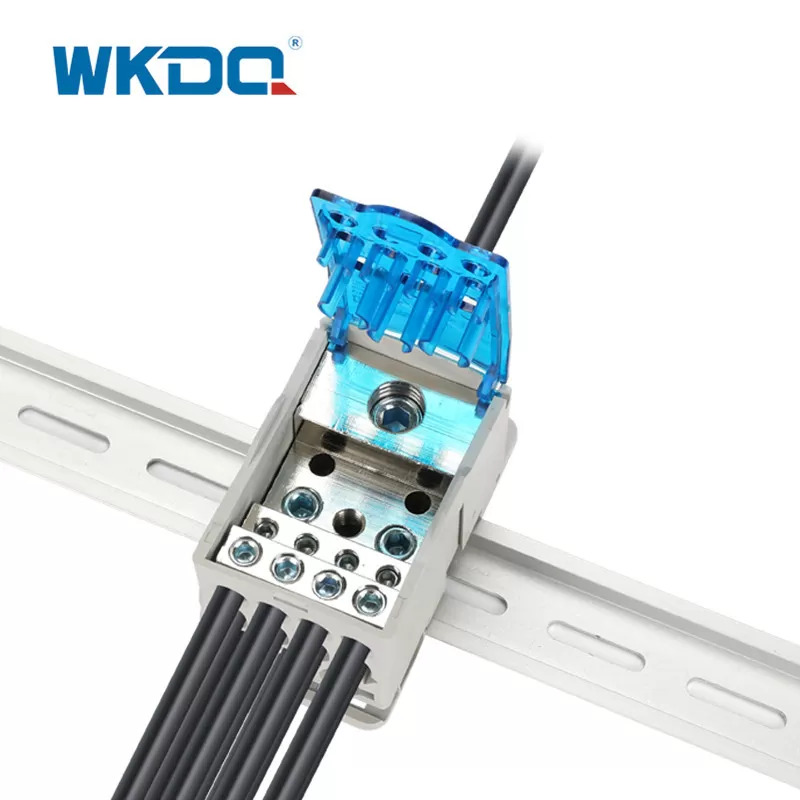

Snap mounting for DIN rail.
Blue and Grey color
Simple and quick operating.
Professional power design.
Safe and stable performance.
Made from safe and high quality material.
Reasonable Design save the installation space.
Increased productivity thanks to reduced wiring, inventories, hardware and assembly costs.
With Dust-proof and insulation cover.

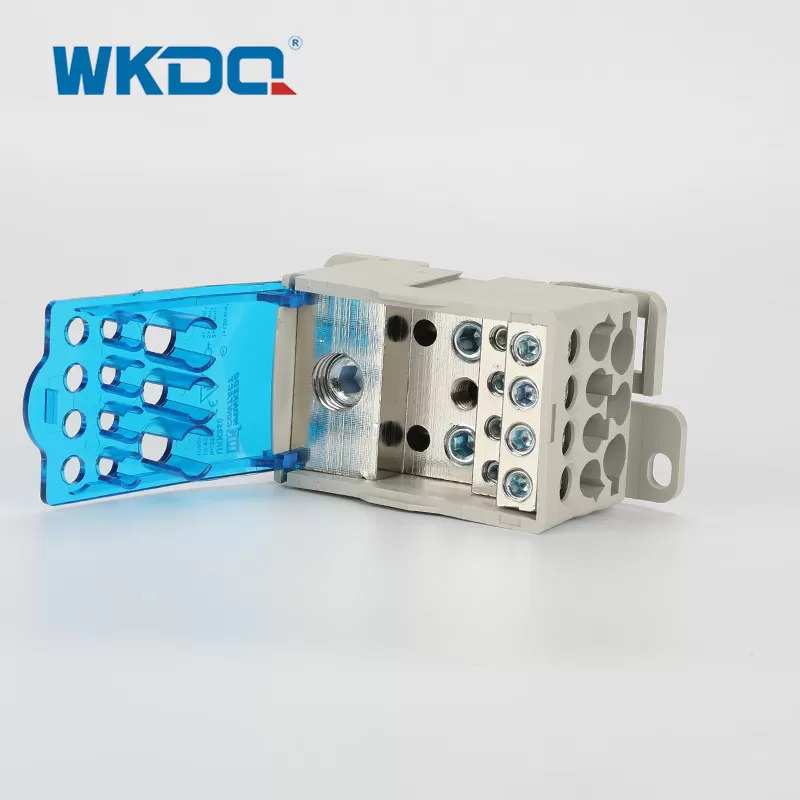

Hinged or removable cover - easy assembly.
Extremely low profile ultra slim width. Quick Fitting.
This product complies with EC and RoHS standards
TECHNICAL PARAMETERS
| Model No. | UKK 400A |
| Color | Blue and Gray |
| Length/Height/Wide (mm) | 47.8/50/96 |
| Connection method | Screw connection |
| Material | Flame resistant Nylon PA66, brass conductor |
| Rated Voltage/Current | 690V400A |
| Entry Specification | 1X185mm² |
| Output Specification | 2X35/5X16/4X10 mm² |
| Mounting Type | DIN Rail NS 35 |
| Standard | IEC 60947-7-1 |
| LOGO | WonkeDQ, LOGO can be customized |
| Certification | CE/RoHS/CQC/ISO 9001 |
Hot Tags: Single Pole UKK 400A Power Distribution Terminal Box EC And RoHS Standards, Manufacturers, Suppliers, China, Factory, Free Sample, In stock, Customized
