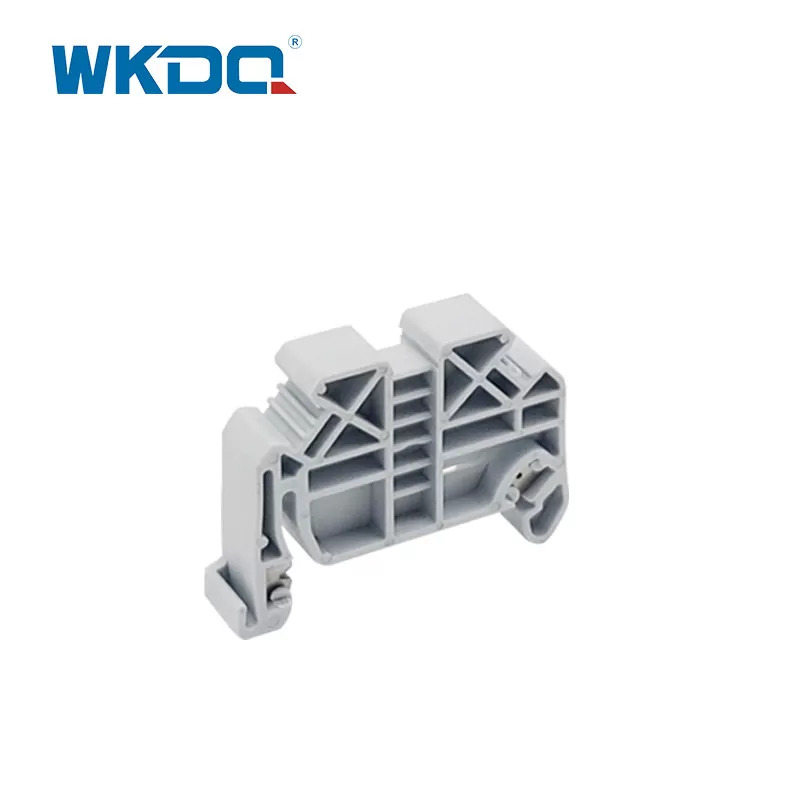

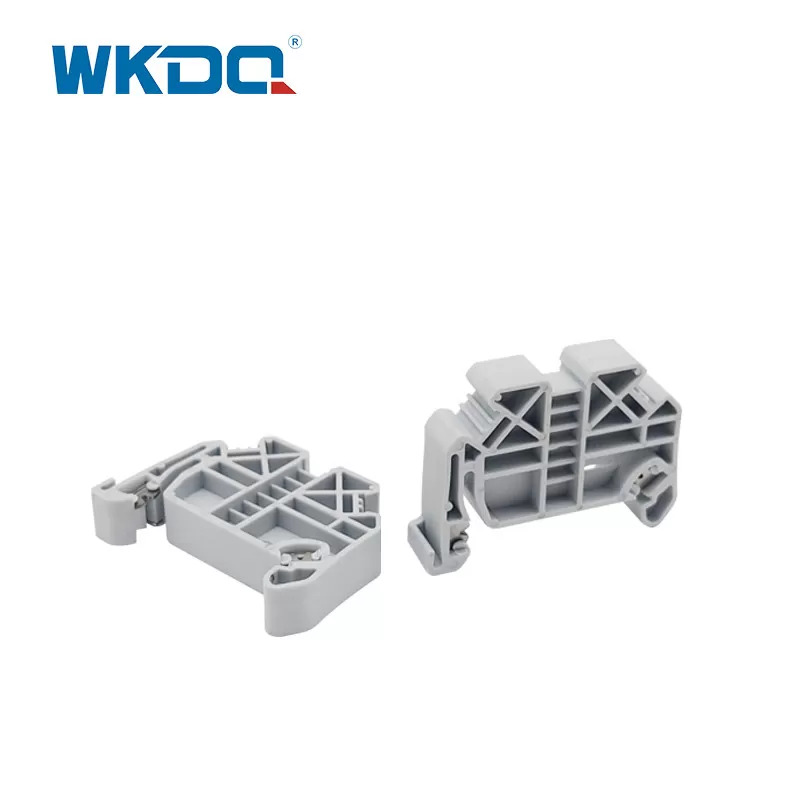

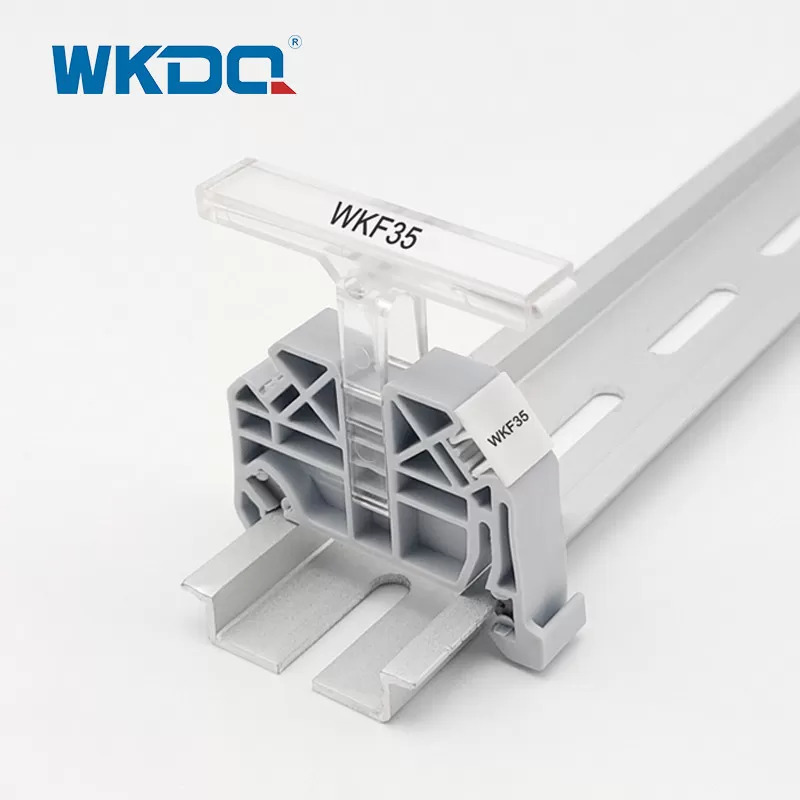

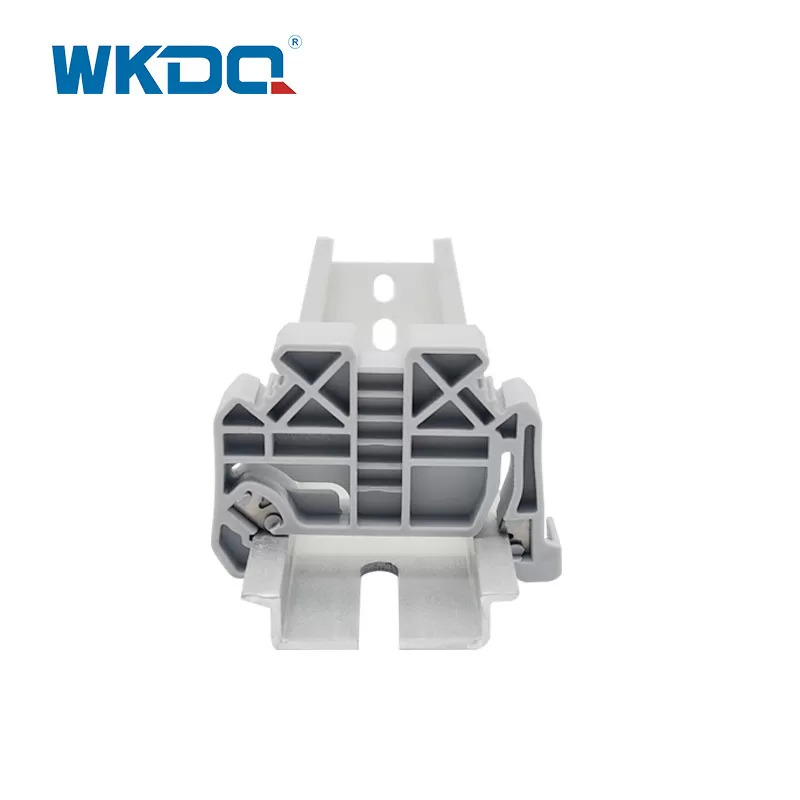

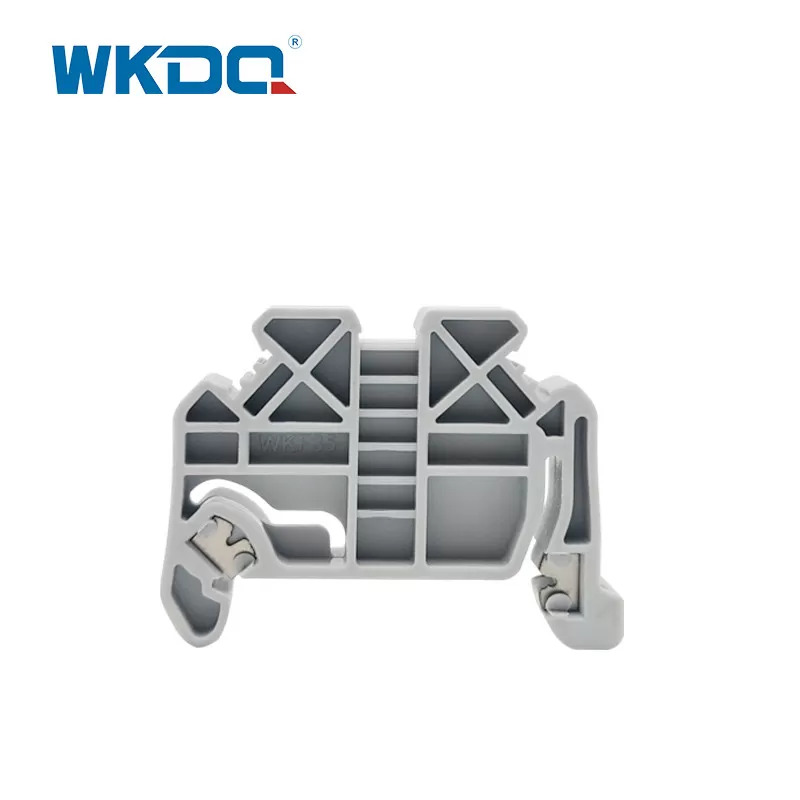

Anti Flaming 35mm Din Rail End Clamp Din Rail End Bracket

The WKDQ Anti Flaming 35mm Din Rail End Clamp Din Rail End Bracket are components used to secure and terminate DIN rail-mounted components, such as terminal blocks or other devices, while providing resistance to flame propagation. Here are some details about these components:

DIN Rail: The DIN rail is a standardized metal mounting rail used in electrical installations to mount various components. The 35mm width indicates the standardized size of the DIN rail, and it is compatible with many DIN rail-mounted devices.

Anti-Flaming: The anti-flaming feature means that the end clamp and end bracket are designed to resist flame propagation. This feature helps prevent the spread of fire in case of an incident, providing increased safety in environments where fire resistance is important.

End Clamp: The end clamp is used to secure the components at the end of the DIN rail. It holds them in place and prevents them from sliding off or becoming loose.

End Bracket: The end bracket provides support and stability for the components at the end of the DIN rail. It ensures proper alignment and prevents movement or shifting.

The combination of the anti-flaming 35mm DIN rail end clamp and end bracket provides a secure and flame-resistant solution for terminating components on the DIN rail, enhancing safety in electrical installations.

When using these components, it's essential to ensure compatibility with the specific DIN rail and components being used. Manufacturers typically provide detailed specifications and guidelines for their products, so referring to the product datasheets or consulting the manufacturer directly will provide the most accurate information for a particular model.

TECHNICAL PARAMETERS
