35mm Aluminum Din Rail Terminal Block End Stopper Screw Connection

A WKDQ 35mm Aluminum Din Rail Terminal Block End Stopper Screw Connection is a device used in electrical installations to secure and terminate wiring connections on a DIN rail. Here's a breakdown of its components and functions:

DIN Rail: DIN rails are standardized metal rails used to mount electrical devices, such as terminal blocks, circuit breakers, and relays. The 35mm measurement refers to the width of the DIN rail, which is a common size in many industrial applications.

Terminal Block: A terminal block is a modular electrical connector used to connect and secure wires. It consists of a metal body with multiple screw terminals where wires can be inserted and tightened down using screws. Terminal blocks provide a secure and organized method for making electrical connections.

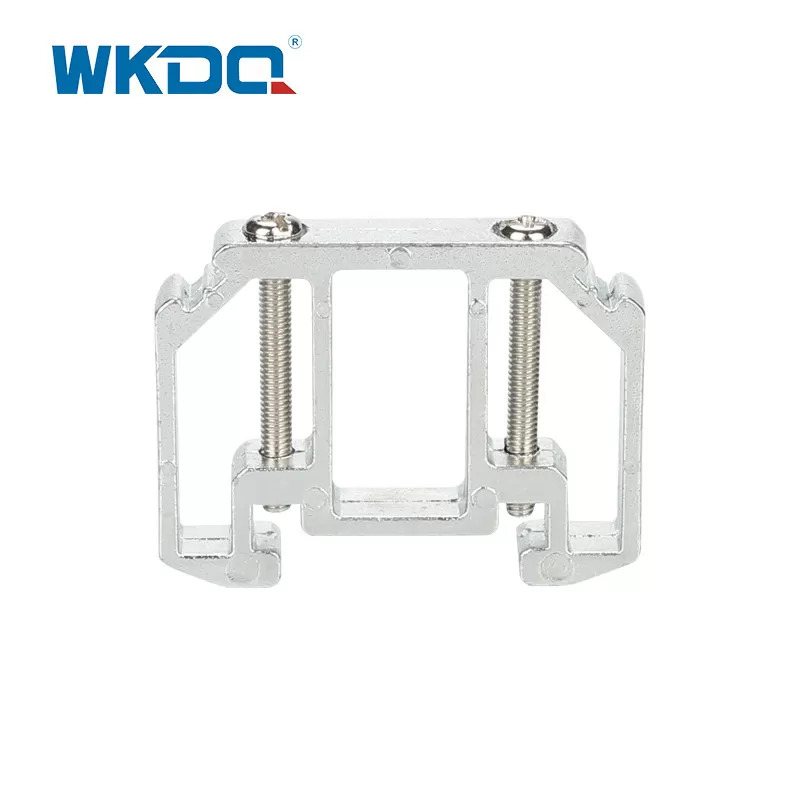

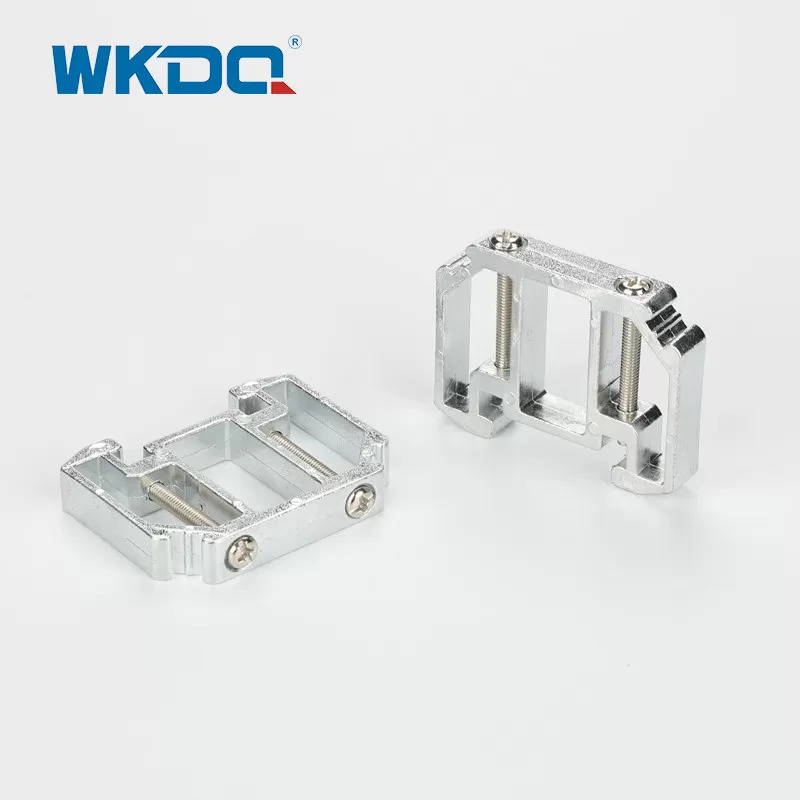

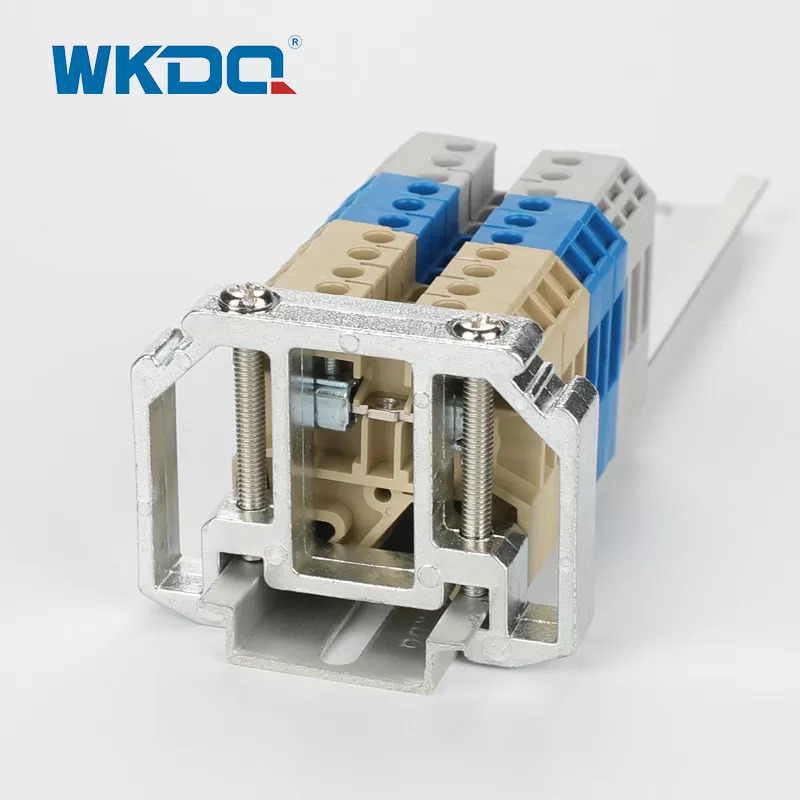

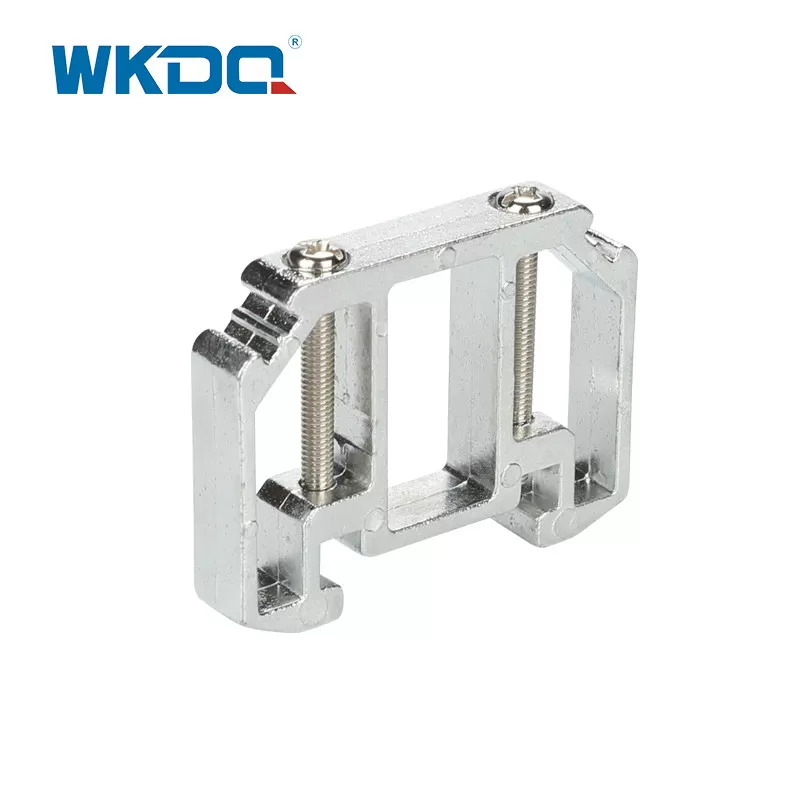

End Stopper: The end stopper is an accessory designed to be attached at the end of the DIN rail to prevent terminal blocks or other mounted devices from sliding off. It ensures that the terminal blocks remain securely in place, especially in applications where vibration or movement may occur.

Screw Connection: The screw connection refers to the method used to secure wires within the terminal block. Each screw terminal has a clamping mechanism that allows wires to be inserted and then tightened down using a screwdriver. This provides a reliable and adjustable connection, allowing for easy installation and maintenance.

In summary, a 35mm aluminum DIN rail terminal block end stopper with a screw connection is a component used in electrical panels and control systems to secure and terminate wiring connections on a standardized DIN rail. It ensures the stability and integrity of the electrical connections while providing a convenient method for mounting and organizing the terminal blocks.

TECHNICAL PARAMETERS
