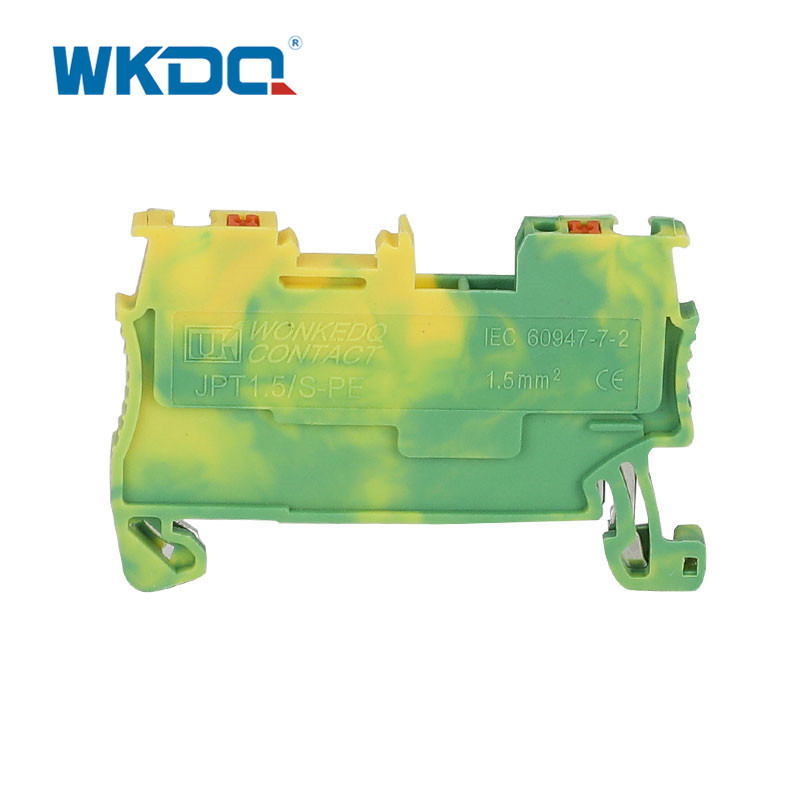

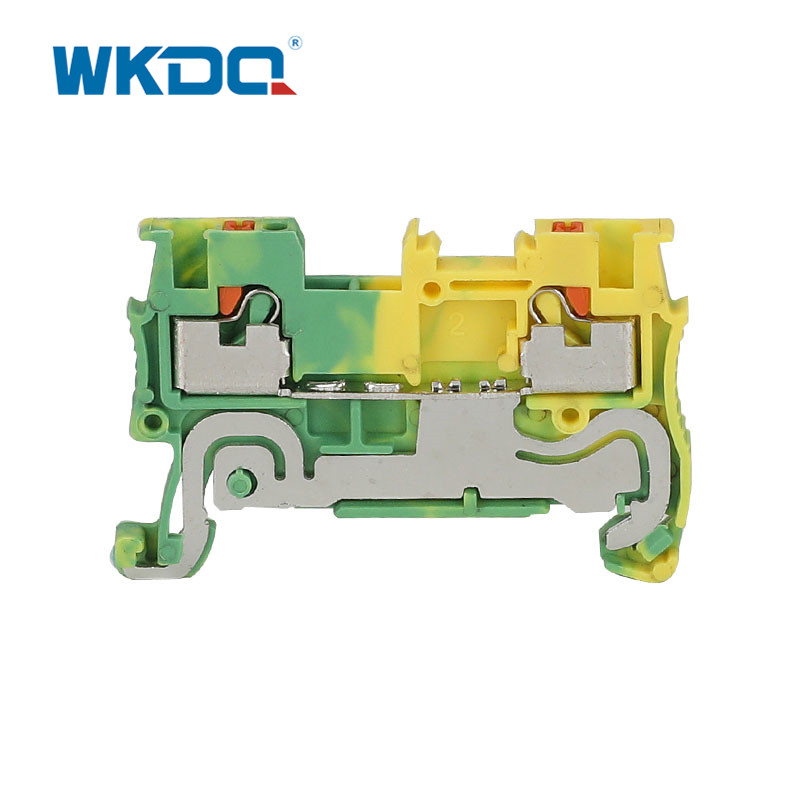

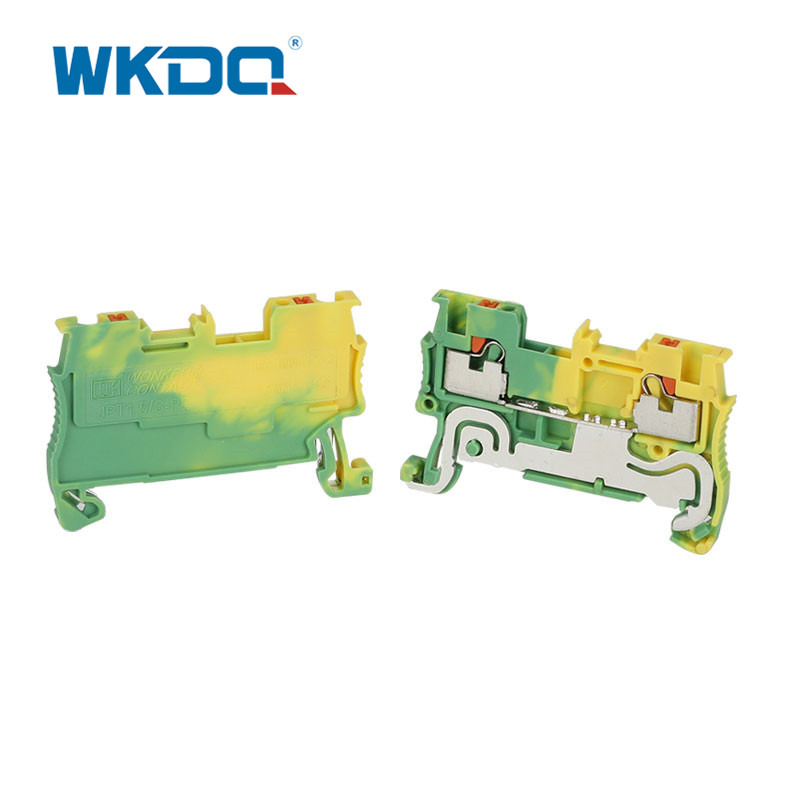

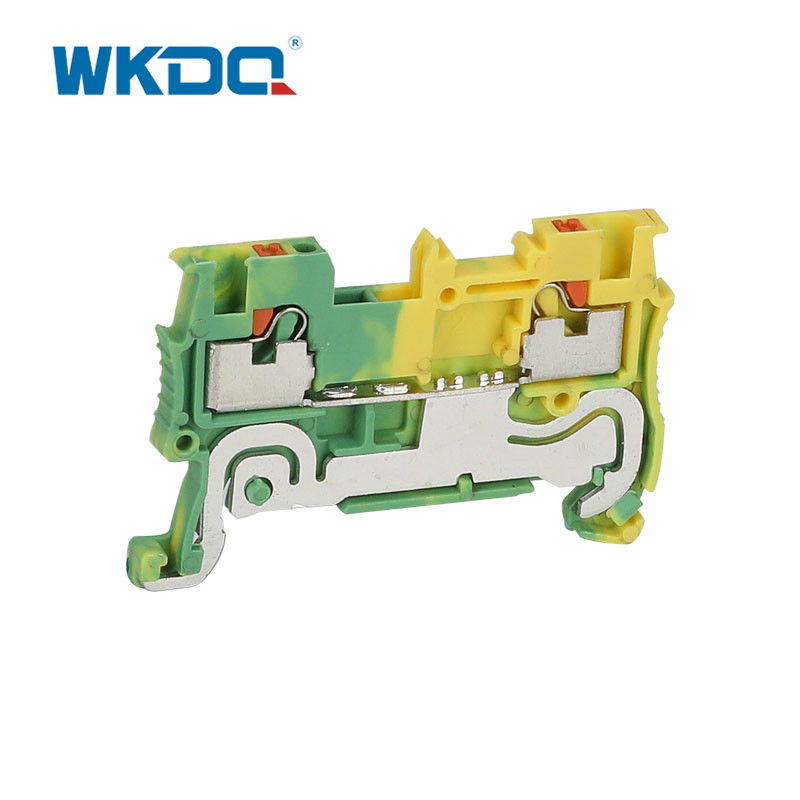

Yellow Green Conductor Protect Grounding Terminal Blocks Flame Resistant Nylon
Place of Origin: China
Brand Name: WONKEDQ，WKDQ
Certification: CE/RoHS/CQC/ISO 9001
Model Number: JPT 1.5-PE
Packaging Details: Box
Delivery Time: 2-7 days
Payment Terms: T/T, Paypal, Western Union, etc
Send Inquiry
Product Description
The JPT connection terminal blocks are subjected to tests which go beyond the basic terminal block standard, enabling them to be used in sectors of industry, such as energy supply, transportation technology, process engineering, in particular the chemical and petrochemical industry or shipbuilding. Push-in connection technology meets these high requirements in terms of vibration and shock loads up to 350 g.The solid conductors or conductors with ferrules can be inserted directly into the terminal block without tools.The Compact Design and Front Connection Enable Wiring in a Confined Space.
Connection of all conductor types, thanks to convenient front connection
he conductor can be easily released – without special tools
Includes plastic actuators for shock prevention
Process technology and process engineering
Offers up to 65% faster installation than screw-type terminal blocks
TECHNICAL PARAMETERS
| Model No. | JPT 1.5-PE |
| Color | Yellow and Green |
| Length/Height/Wide (mm) | 45/32/3.5 |
| Connection method | Push-in connection |
| Material | Flame resistant Nylon PA66 V0 |
| Rated Voltage/Current | 500V/17.5A |
| Cross section, solid/soft Cable | 0.14-1.5 mm² / 0.14-1.5 mm² |
| Conductor Size | 26-16 AWG |
| Mounting Type | DIN Rail NS 35 |
| Standard | IEC 60947-7-1 |
| LOGO | WonkeDQ, LOGO can be customized |
| Packing Detail | 4.92g/pc, 110PCS/BOX |
| Certification | CE/RoHS/CQC/ISO 9001 |
