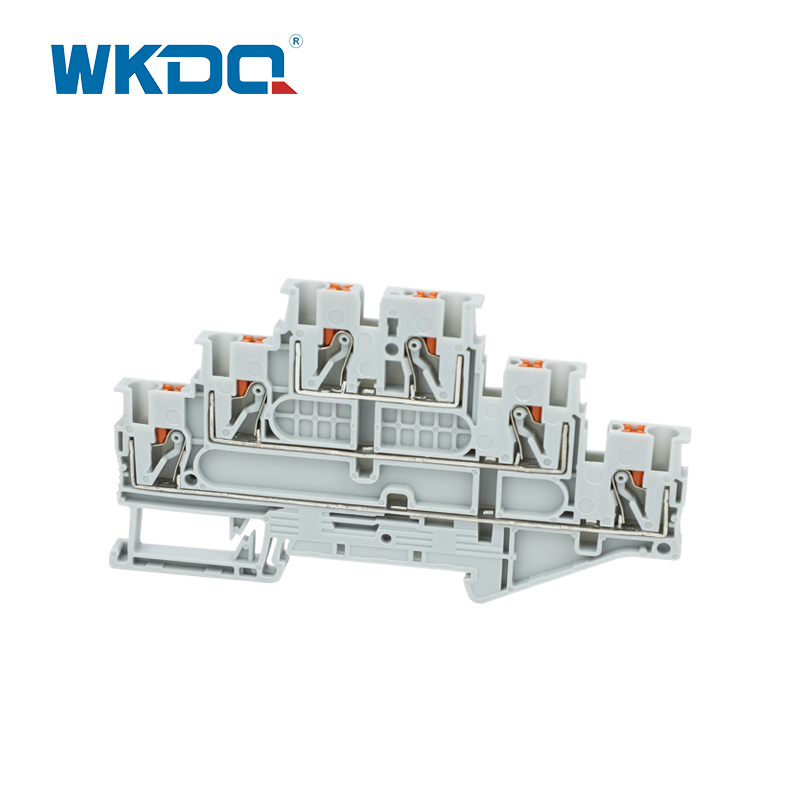

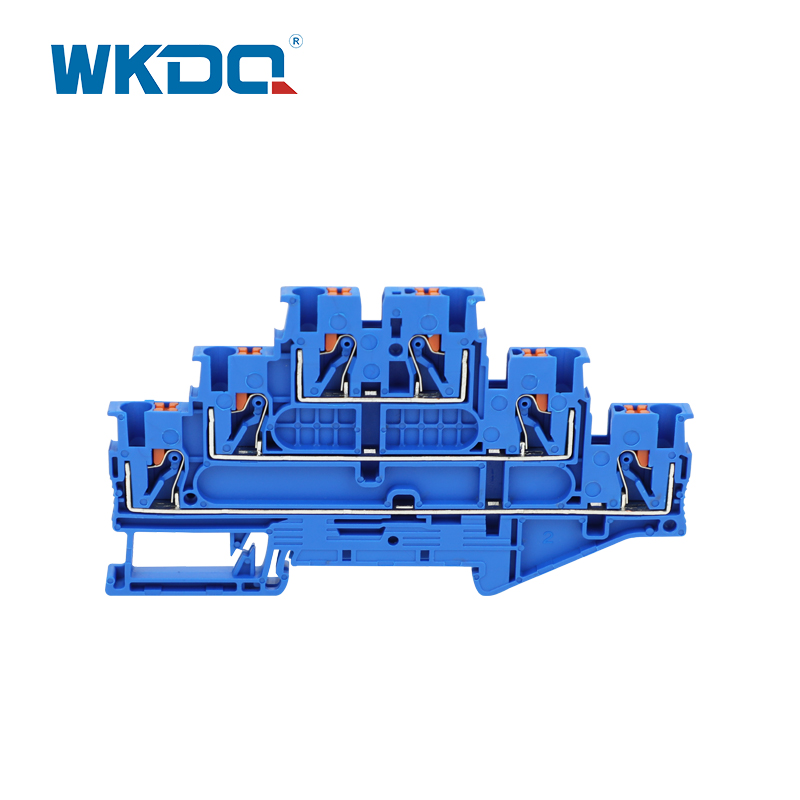

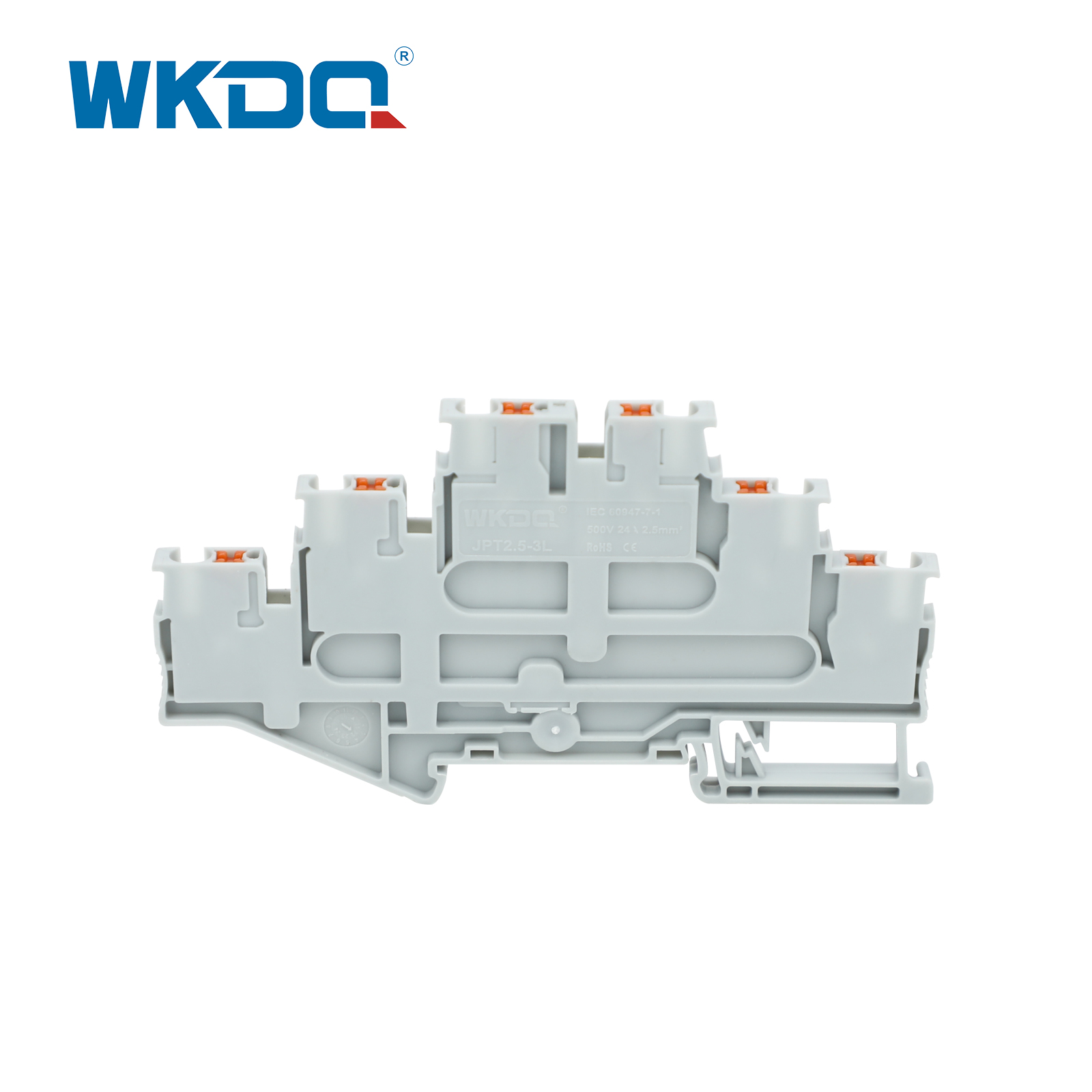

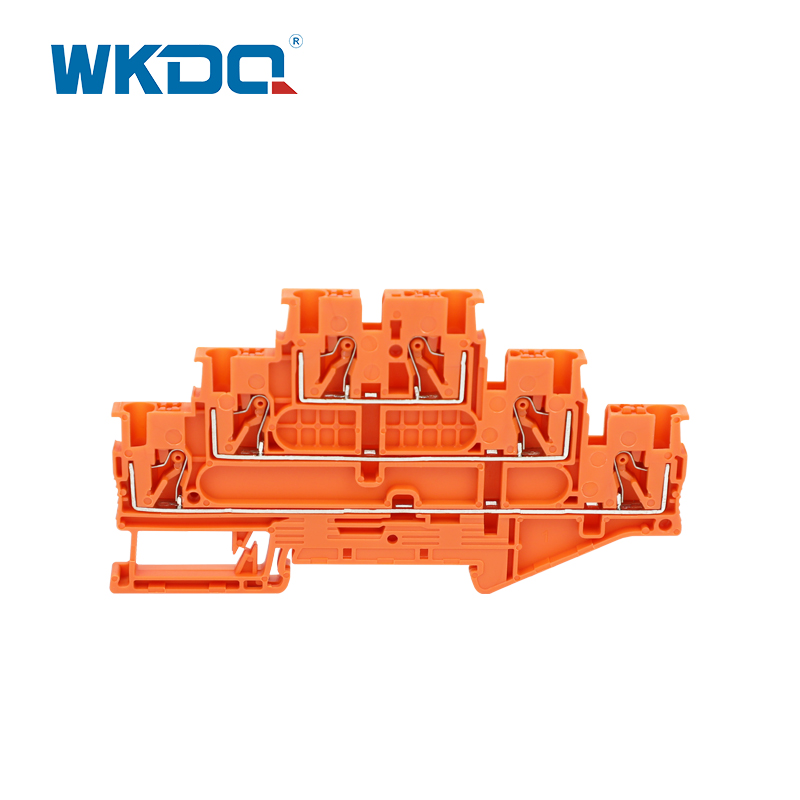

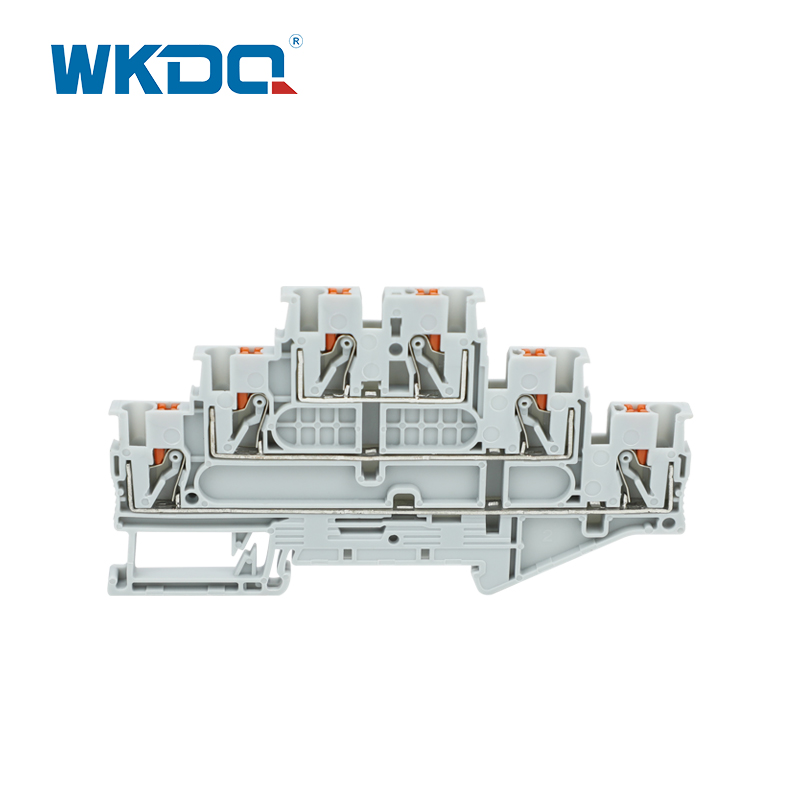

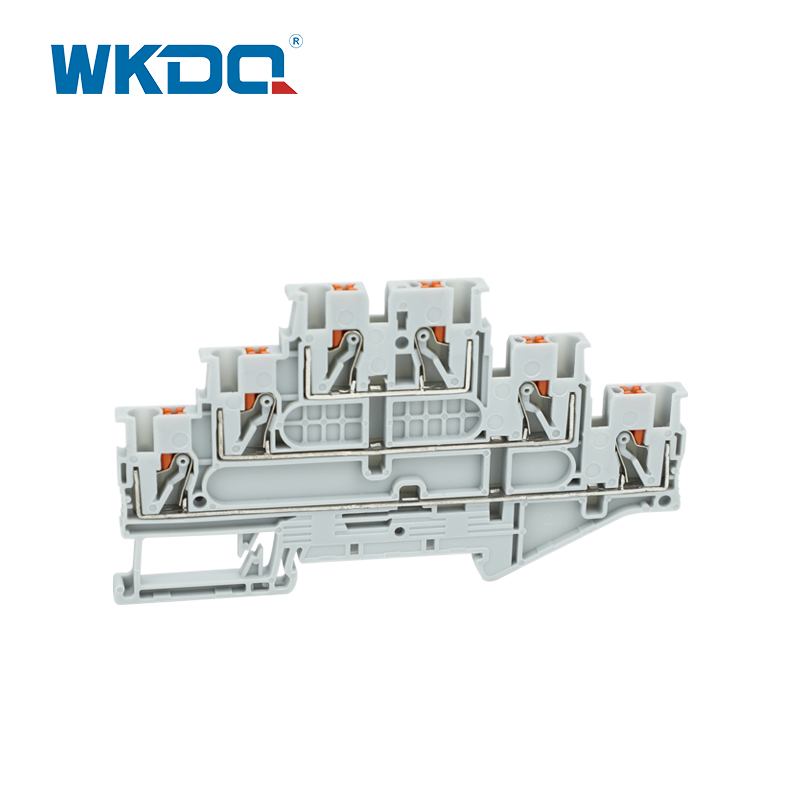

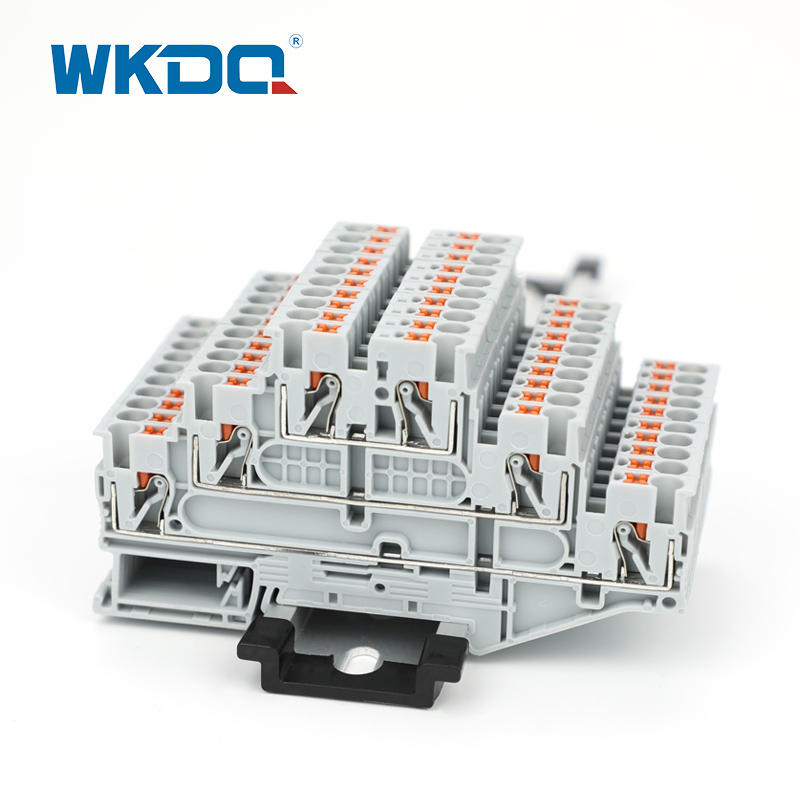

Three Level Push In Terminal Block
  • Three Level Push In Terminal BlockThree Level Push In Terminal Block
  • Three Level Push In Terminal BlockThree Level Push In Terminal Block
  • Three Level Push In Terminal BlockThree Level Push In Terminal Block
  • Three Level Push In Terminal BlockThree Level Push In Terminal Block
  • Three Level Push In Terminal BlockThree Level Push In Terminal Block
  • Three Level Push In Terminal BlockThree Level Push In Terminal Block
  • Three Level Push In Terminal BlockThree Level Push In Terminal Block

Three Level Push In Terminal Block

Place of Origin: China
Brand Name: WKDQ / WONKEDQ
Certification: CE/RoHS/CQC/ISO 9001
Model Number: PT2.5-3L
Packaging Details: Box
Delivery Time: 2-7 days
Payment Terms: T/T, Paypal, Western Union, etc

Send Inquiry

Product Description


Introducing our latest innovation in terminal block technology: the Push-in Direct Connection series, which includes the Three Level Push In Terminal Block. These terminal blocks are designed to revolutionize wiring processes with their efficient and user-friendly features.

Crafted from high-quality engineering flame retardants nylon PA66 and copper conductors, our Push-in Direct Connection terminal blocks offer exceptional durability and conductivity.

One of the key advantages of these terminal blocks, including the Three Level Push In Terminal Block, is the Push-in connection technology, which allows for easy and tool-free wiring of conductors, including ferrules and solid conductors. This eliminates the need for additional tools and simplifies the installation process.

The compact design and front connection feature of our terminal blocks, including the Three Level Push In Terminal Block, enable wiring in tight and confined spaces, making them ideal for installations with limited room.

Our terminal blocks, including the Three Level Push In Terminal Block, are compatible with a universal foot that can be effortlessly installed on Din Rail NS 35, providing a secure and versatile mounting option.

Safety is a top priority, and our Push-in Direct Connection terminal blocks, including the Three Level Push In Terminal Block, are designed with V0 flame retardant materials, ensuring enhanced fire resistance and compliance with stringent safety standards.

For electric potential distribution, fixed bridges can be used in the terminal center of all our terminal blocks, including the Three Level Push In Terminal Block, simplifying the distribution process and saving valuable space.

Additionally, our multi-conductor terminal blocks, including the Three Level Push In Terminal Block, allow for cost-effective potential distribution while optimizing space utilization.

To further enhance the functionality and customization options, we offer a comprehensive range of accessories for our terminal blocks, including end covers, end stoppers, marker strips, plug-in bridges, marker carriers, and more.

Experience the benefits of reduced insertion forces, tool-free wiring, and compact design with our Push-in Direct Connection terminal blocks, including the Three Level Push In Terminal Block. With their flame retardant properties, versatile mounting options, and accessory compatibility, these terminal blocks are the ideal solution for efficient and safe electrical installations. Upgrade your wiring systems today and benefit from simplified installation processes and reliable electrical connections.




Model Number JPT2.5-3L
Color Grey,Blue, other color can be customized
Length/Wide/Height (mm) 103 / 56.4 / 5.2 mm
Connection method Push-in connection
Material Flame resistant Nylon PA66 V0
Rated Voltage/Current 500V/22A
Cross section, solid/soft Cable 0.14-4mm²/0.14-2.5mm²
Conductor Size 26-12AWG
Mounting Type DIN Rail NS 35
Standard IEC 60947-7-1
LOGO WonkeDQ, WKDQ, LOGO can be customized
Packing Detail 10.23g/pc, 50PCS/BOX
Certification CE/RoHS/CQC/ISO 9001
