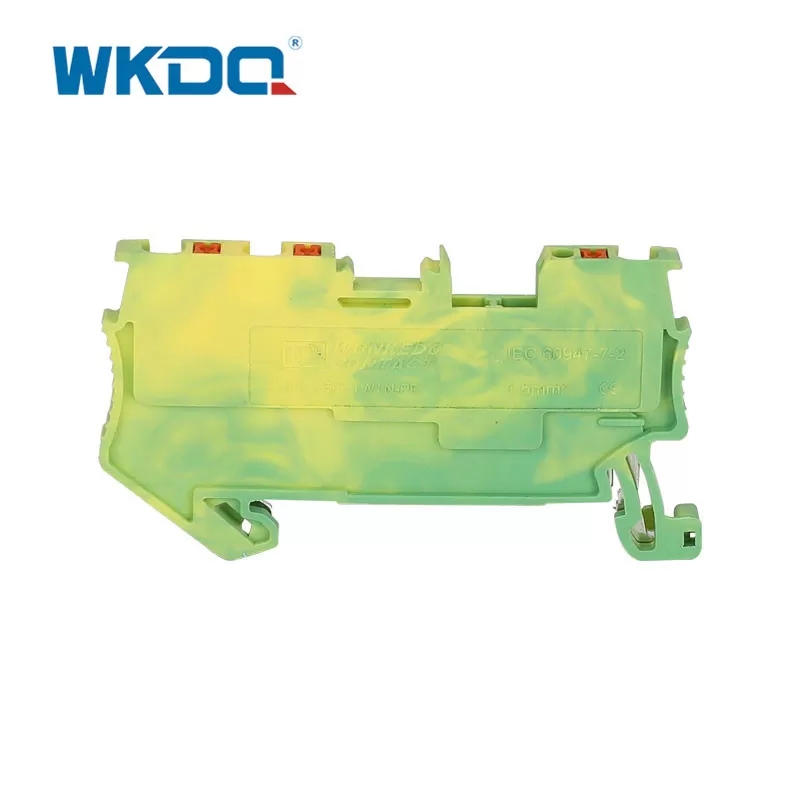

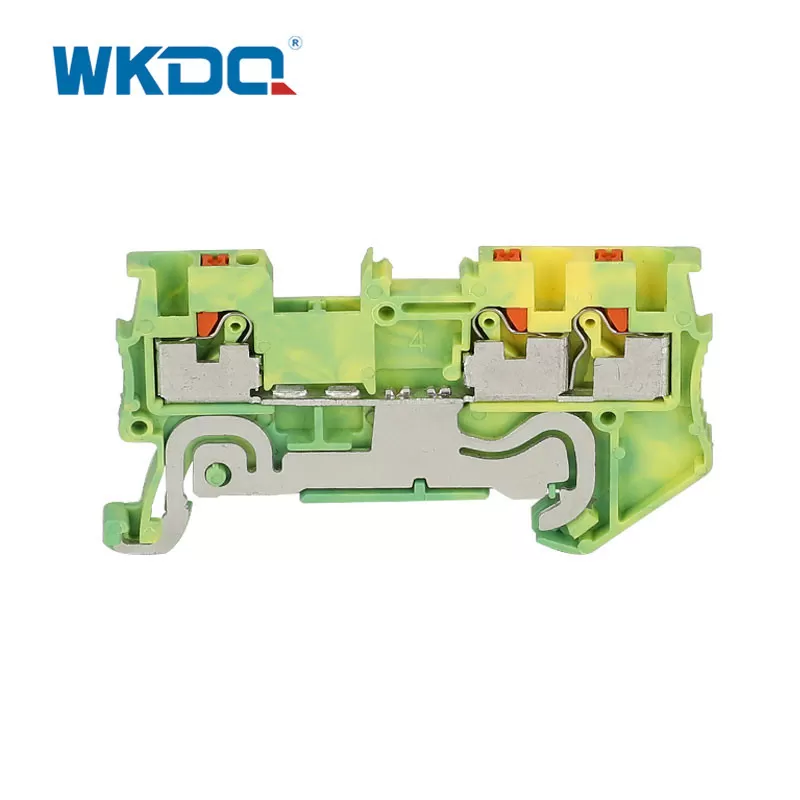

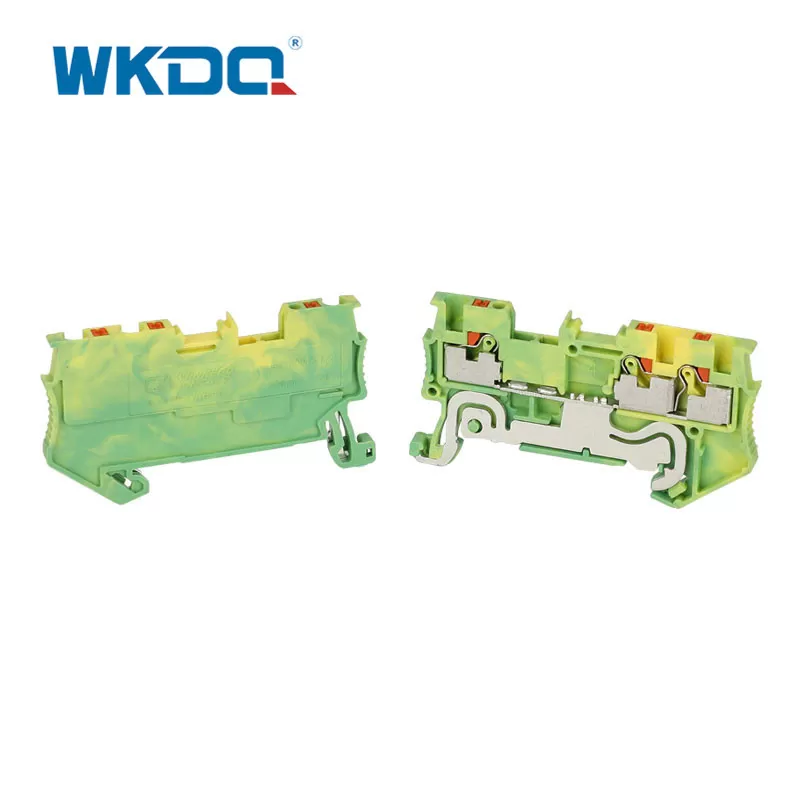

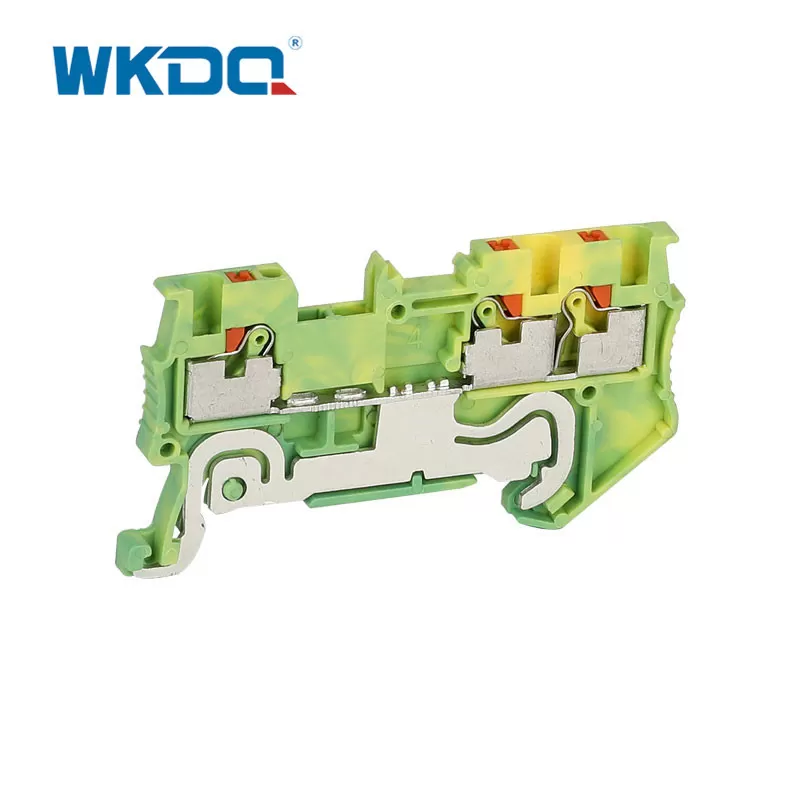

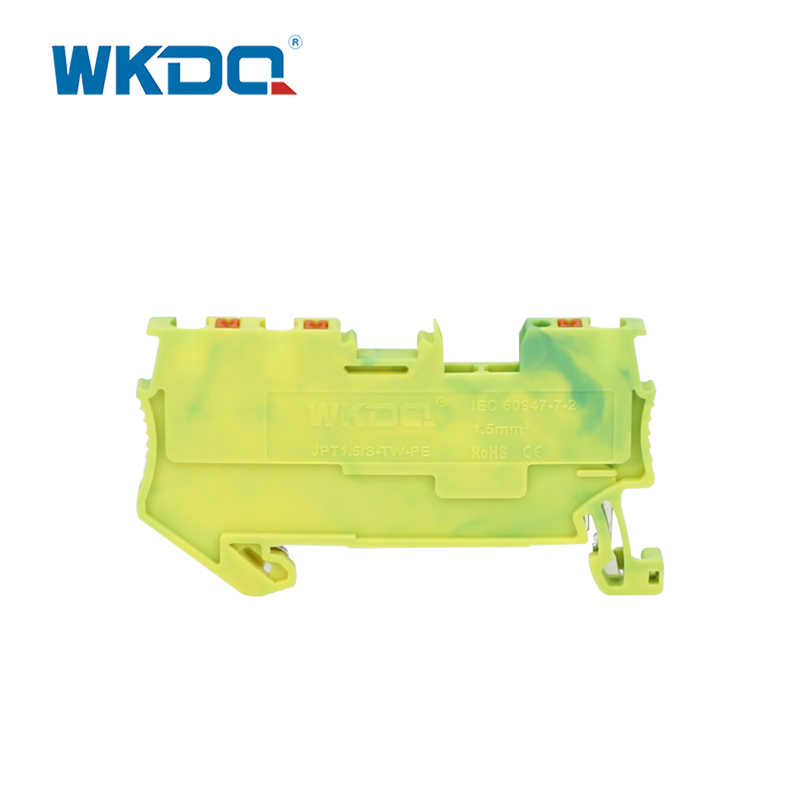

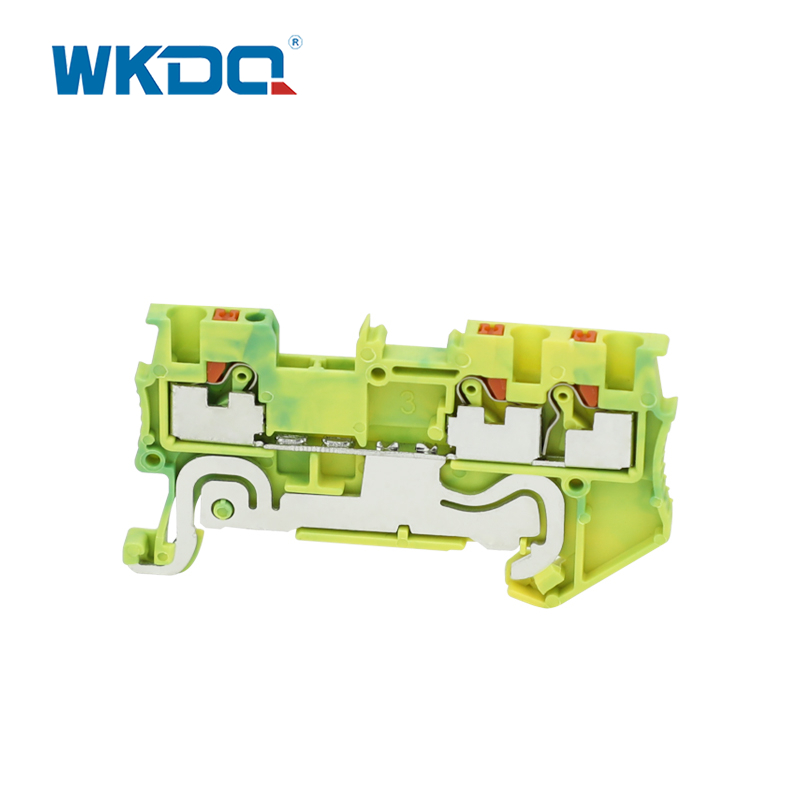

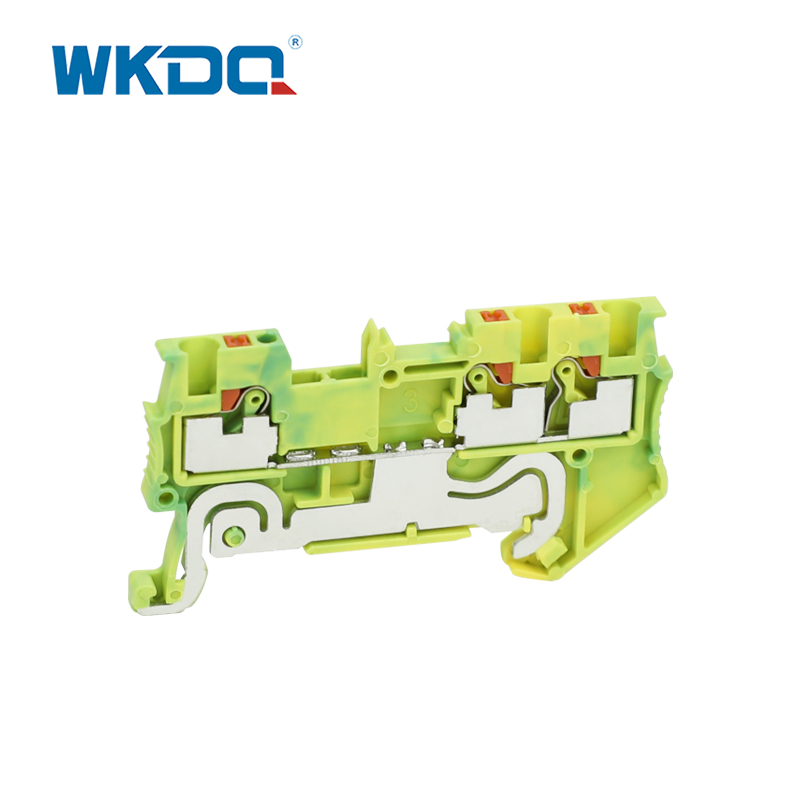

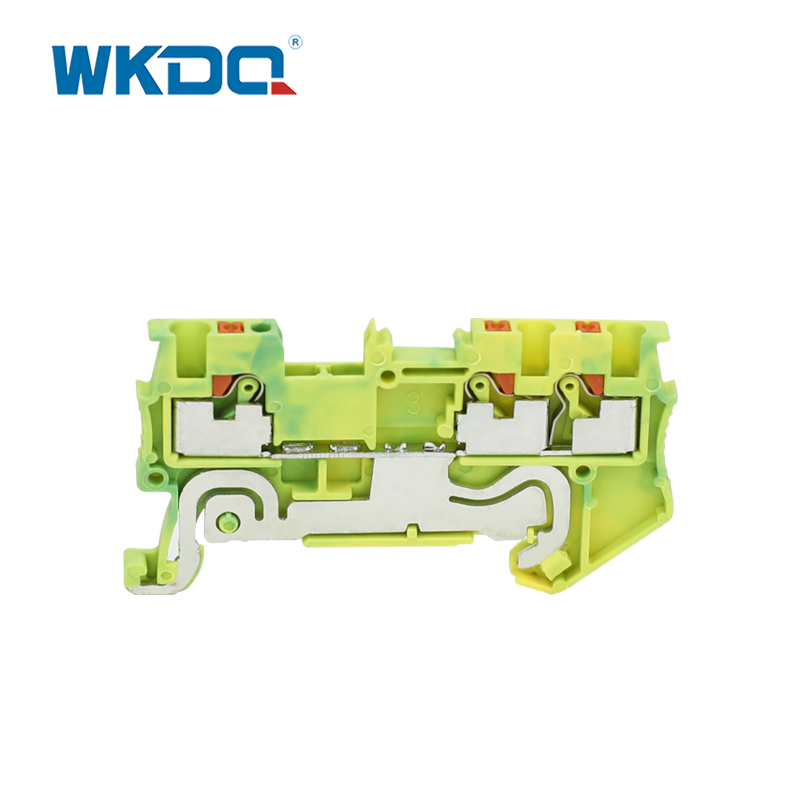

Terminal Block Yellow and Green

Place of Origin: China
Brand Name: WONKEDQ，WKDQ
Certification: CE/RoHS/CQC/ISO 9001
Model Number: JPT 1.5/S-TWIN-PE
Packaging Details: box
Delivery Time: 2-7 days
Payment Terms: T/T, Paypal, Western Union, etc

Model: JPT 1.5 S TW PE

Send Inquiry

Product Description

‌JPT 1.5mm DIN Guide double ground terminal block core features ‌

1‌. harsh environment durability ‌ : designed for harsh working conditions, compact and adjustable for long life and high space utilization ‌;

‌2. Anti-corrosion conductor ‌ : the use of high purity anti-crack copper material, effectively resist electrolytic corrosion and rust ‌;

‌3. Seismic and air-tight connection ‌ : spring cage crimping system to maintain a constant contact force, to achieve anti-vibration, anti-gas leakage of solid connection ‌;

‌4. Strengthened protection structure ‌ : nylon modular shell provides protection against arc creepage and mechanical impact ‌.

Part No.	JPT 1.5/S-TWIN-PE
Color	Yellow and Green
Length/Height/Wide (mm)	54/30.5/3.5
Connection method	Push-in connection
Material	Flame resistant Nylon PA66 V0
Rated Voltage/Current	500V/17.5A
Cross section, solid/soft Cable	0.14-1.5mm²/0.14-1.5mm²
Conductor Size	26-16 AWG

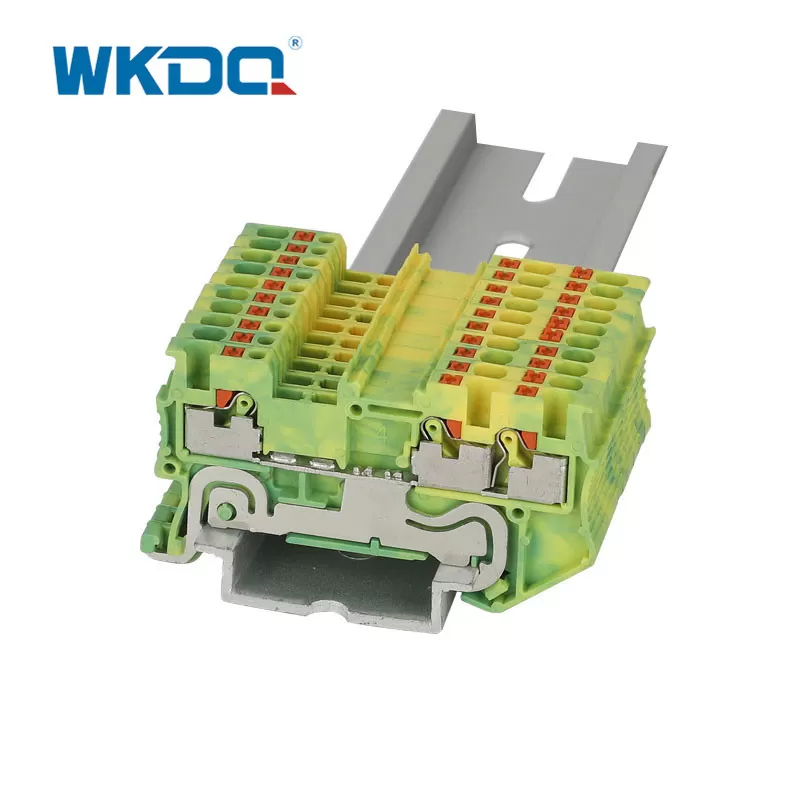

Mounting Type	DIN Rail NS 35
Standard	IEC 60947-7-1
LOGO	WonkeDQ, LOGO can be customized
Packing Detail	5.09g/pc, 100PCS/BOX
Certification	CE/RoHS/CQC/ISO 9001
