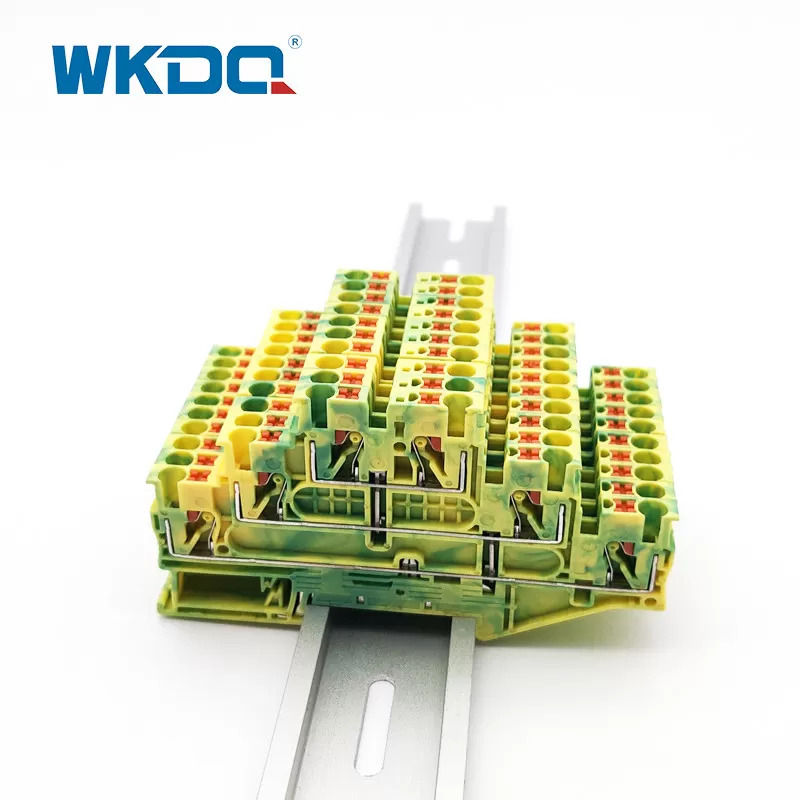

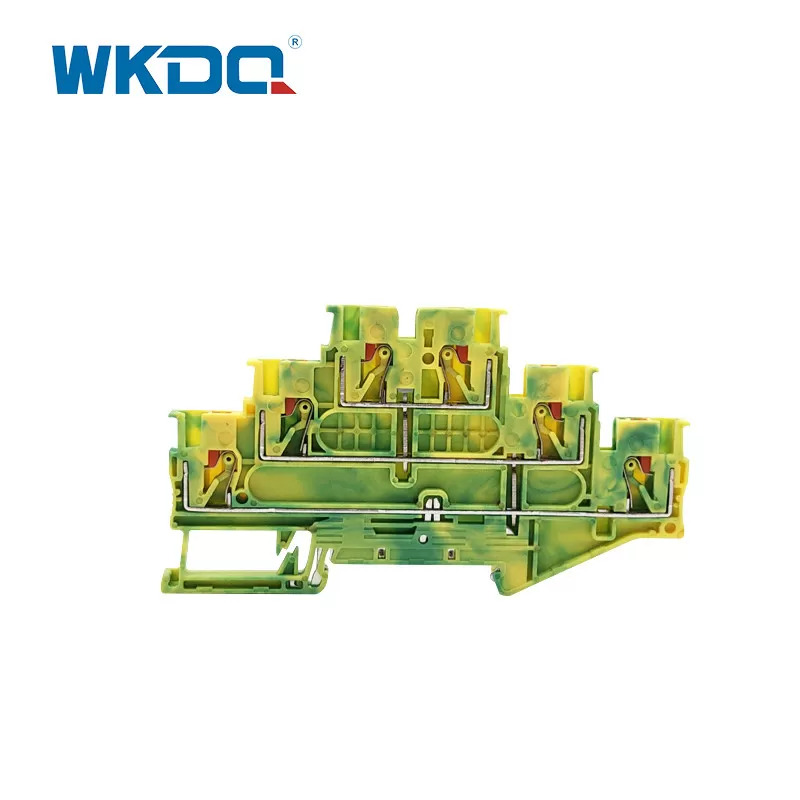

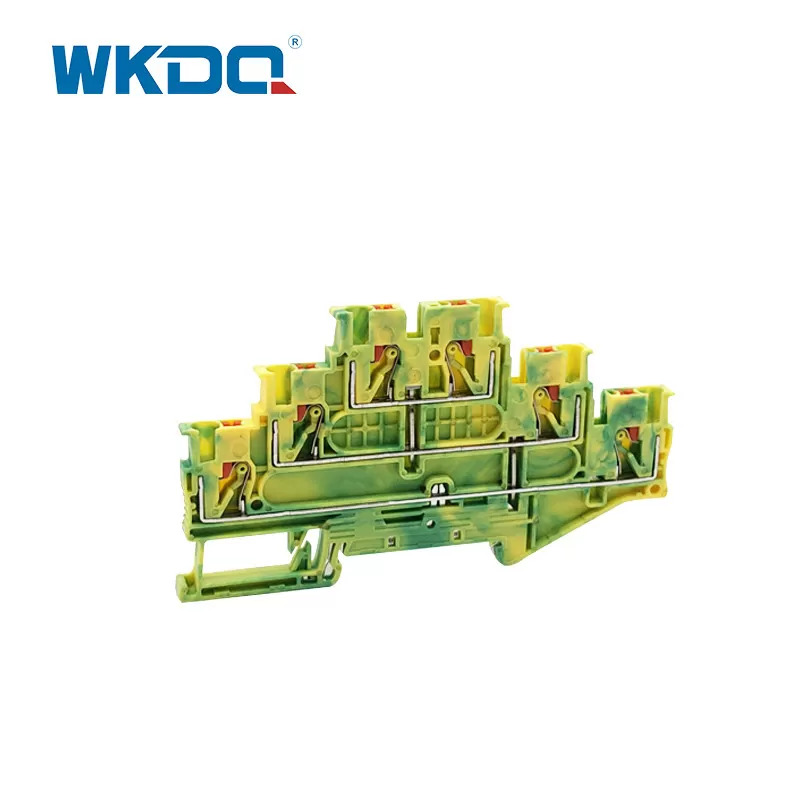

Push In DIN Rail PE Triple Level Ground Terminal Block Flame Resistant
Place of Origin: China
Brand Name: WONKEDQ，WKDQ
Certification: CE/RoHS/CQC/ISO 9001
Model Number: JPT 2.5-3L-PE
Packaging Details: box
Delivery Time: 2-7days
Payment Terms: T/T, Paypal, Western Union, etc
Send Inquiry
Product Description
In a confined space with the new UT three-level terminal block. It has all the system features of the CLIPLINE complete system and is therefore suitable for space-saving power wiring, including a bridging facility on each level. Tool-free wiring, enable the conductors to be inserted easily and directly.
◆ Made from Inflaming Nylon PA 66, Stainless steel spring, brass cross bar.
◆ Easy potential distribution, thanks to function shafts on each level
◆ Space saving, as there are up to three potentials in one terminal housing
◆ Clear arrangement, as all terminal points are marked
◆ The ground modular terminal block can snap on the DIN Rail directly without any tool.
TECHNICAL PARAMETERS
| Model Number | JPT 2.5-3L-PE |
| Color | Yellow-Green other color can be customized |
| Length/Height/Wide (mm) | L103 /H56.4/ W5.2 mm |
| Connection method | Push-in connection |
| Material | Nylon PA66 |
| Rated Voltage/Current | 500V/24A |
| Cross, solid/stranded Wire | 0.14-4mm²/0.14-2.5mm² |
| Conductor Size | 24-12 AWG |
| Mounting type | NS35/7.5 |
| Standard | IEC 60947-7-1 |
| LOGO | Customized logo are supported |
| Certification | CE/ROHS/CQC/ISO 9001 |
