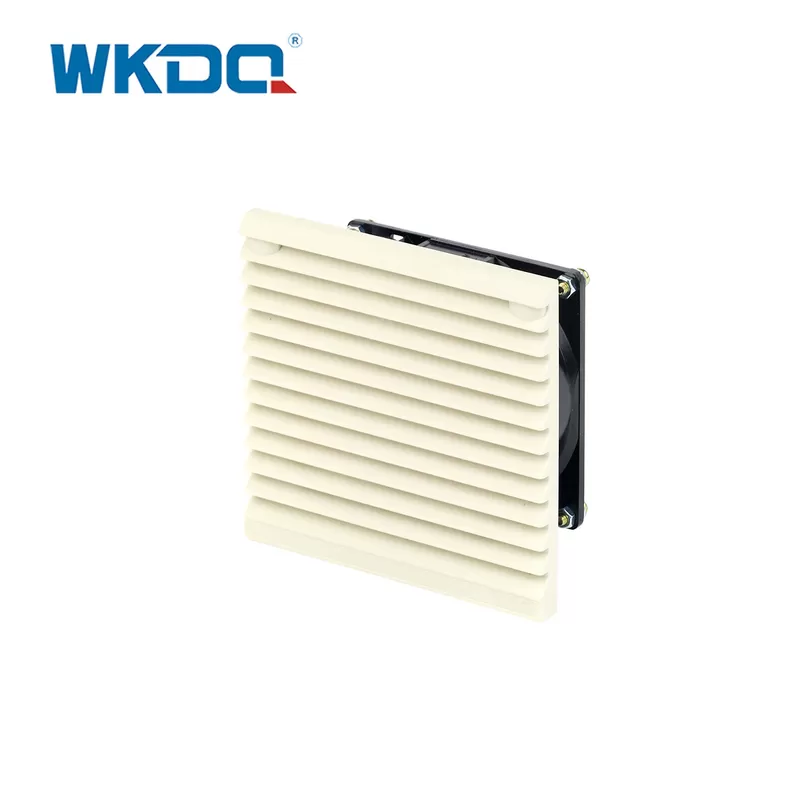

Powerful Axial Fan dust filters

Electrical Cabinet Air Fan Filter

Part No.: 3321-230

Material: ABS

Connection: Snap-Type without tool.

Surface dimension: 116.5x116.5mm

Brand Name: WonkeDQ

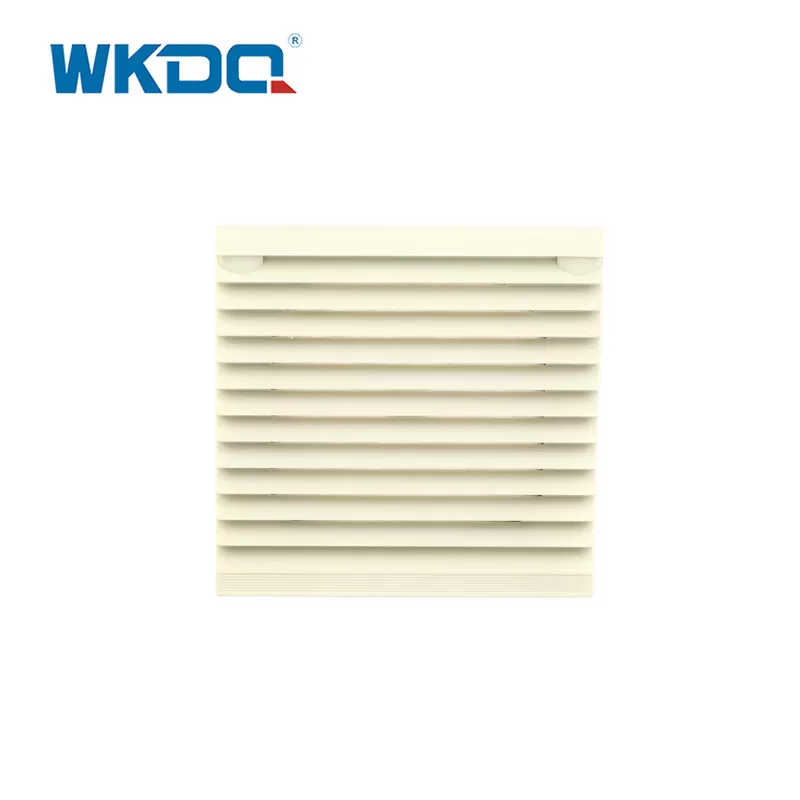

The fan filter is designed to prevent rainwater from entering the control cabinet by incorporating a curved surface structure that acts as a cascade from the openings. This effectively blocks the entry of rainwater. Additionally, the non-woven fiber filter is specifically designed to prevent dust from entering the enclosure, ensuring its cleanliness.

The body of the fan filter is made from heat-resistant and flame-retardant ABS material, ensuring durability and safety.

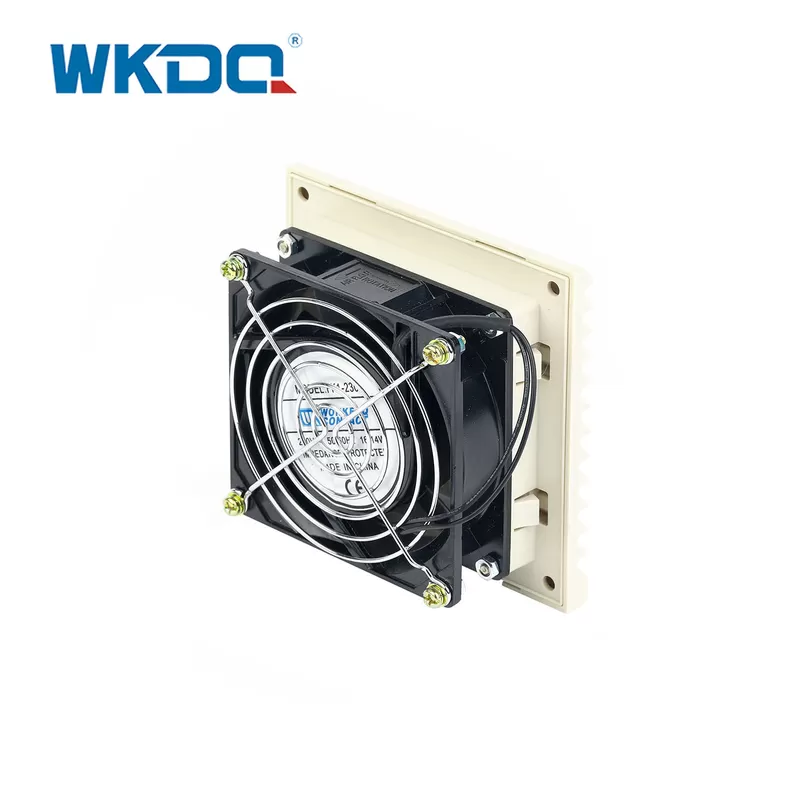

The powerful axial fans can be configured to operate in either blowing or extracting mode, depending on the cooling requirements of the installation.

The enclosure's interior is cooled by drawing in filtered external air, maintaining optimal operating conditions for electronic, electrical, engineering, and electric panel assembly applications in various industrial fields.

The fan filter is fully compatible with the cutouts and fixing holes of all existing fan modules available in the industry, ensuring easy integration into different systems.

The quick assembly design reduces installation time and cost, streamlining the setup process.

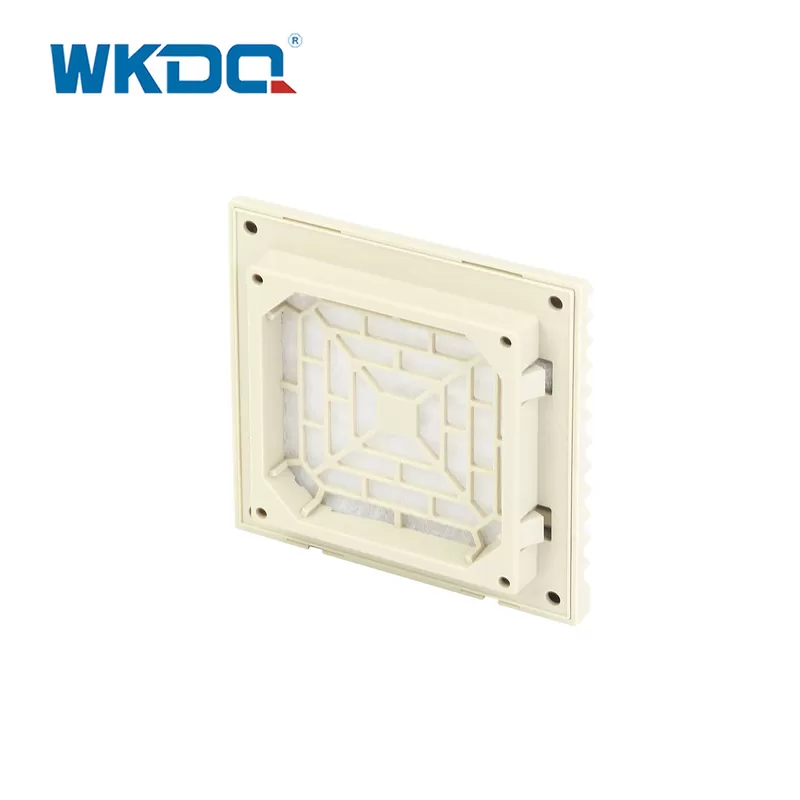

For ease of maintenance, the filter for cleaning purposes can be accessed from the outside of the enclosure while the system is in operation. The filter pads can be quickly changed without the need for tools, allowing for convenient replacement even during fan operation.
