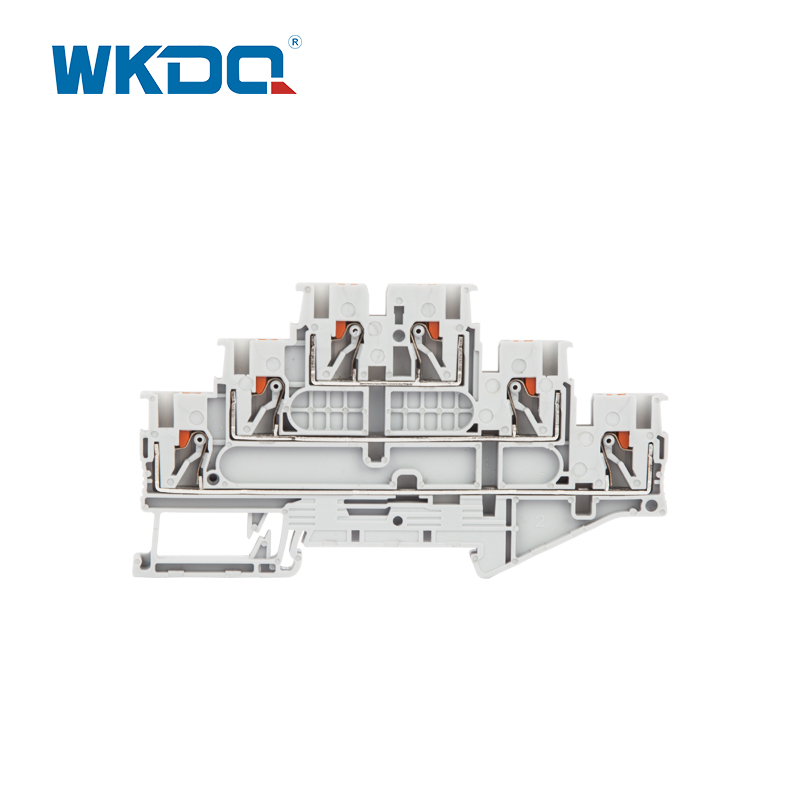

Another breakthrough in industrial connection: JPT 2.5-3L push-in terminal block redefines efficient wiring with "lightweight + strong and tough"

Against the backdrop of the accelerating global industrial automation process, equipment manufacturers are increasingly in urgent need of "lightweight, high reliability and low operational threshold" for electrical connections. Recently, WonkeDQ, a company specializing in industrial connection solutions, has launched the brand-new JPT 2.5-3L push-in terminal block. With three core advantages: "50% reduction in insertion force", "tool-free and maintenance-free", and "flexible adaptability to multiple scenarios", it injects technological innovation momentum into low-voltage power distribution scenarios and redefines the practical boundaries of industrial terminals.

50% reduction in insertion force: Tool-free operation makes wiring easier

Traditional terminal blocks rely on screwdrivers or special tools to complete the crimping of wires, which is not only time-consuming and labor-intensive, but also prone to poor contact due to human error during long-term operation. The JPT 2.5-3L innovatively adopts engineering-grade push-in direct connection technology, completely free from tool constraints: Users only need to directly push insulated wires (supporting 0.14-4mm² hard wires /0.14-2.5mm² soft wires, compatible with 26-12AWG wire diameters) into the terminals to complete reliable connections. After actual measurement verification, this design reduces the wire insertion force by up to 50% compared to traditional terminals, shortens the single wiring time for a single person to within 3 seconds, significantly enhancing the efficiency of batch assembly. It is particularly suitable for small equipment production scenarios that are sensitive to labor costs.

Dual upgrades in materials and structure: From flame retardancy to compactness, suitable for harsh industrial environments

In terms of material selection, JPT 2.5-3L takes "safety + durability" as its core. The main body is made of V0 grade flame-retardant nylon PA66 (conforming to UL94 standard), and it is designed with copper conductors, featuring excellent insulation and temperature resistance (long-term operating temperature can reach -40℃ to +105℃). Even in industrial environments with high dust, high temperature or humidity, It can still maintain stable electrical performance. Structurally, the product adopts the design of "ultra-thin body + front-end wiring", with dimensions of only L103×W56.4×H5.2mm (length × width × height) and a weight of only 10.23g per piece. It can be easily adapted to the NS 35 standard rail installation. Even in the narrow space inside the equipment or the area with dense wiring, the wiring operation can be completed quickly.

Flexible adaptation to multiple scenarios: From potential allocation to anti-mismarking, covering the entire process requirements

In addition to the basic connection function, JPT 2.5-3L has created a number of "hidden essential" functions around the actual application scenarios of industrial equipment:

More efficient potential distribution: The terminal center integrates a fixed bridge connection channel, supporting parallel distribution of multiple potentials. This saves space while reducing wiring complexity, making it particularly suitable for devices such as PLC control cabinets and servo drivers that require dense potential connections.

Strong multi-conductor compatibility: A single terminal can accommodate multiple wires simultaneously (can be used in conjunction with marking strips), avoiding the risk of terminal overload caused by multi-wire tapping and enhancing system reliability.

Anti-mismarking and worry-free expansion: Standard equipped with orange line buttons (supporting fine adjustment with flat/cross-head screwdrivers), end covers, end stops, marking strips and other full series of accessories. It can not only distinguish the lines through the marking strips to avoid incorrect insertion, but also quickly expand the cross-connection requirements through the plug-in bridge, meeting the personalized wiring requirements of different devices.

Dual guarantees of certification and customization: Global market compatibility, free brand identity

In terms of quality, JPT 2.5-3L strictly adheres to IEC international standards and has passed multiple certifications including CE, RoHS, CQC and ISO 9001, ensuring that it meets global industrial-grade requirements in key indicators such as flame retardancy and aging resistance. In response to the differentiated demands of brands, the products support customization in standard colors such as gray and blue, and can also provide exclusive LOGO printing services to help equipment manufacturers build differentiated competitiveness.

Currently, the JPT 2.5-3L has officially entered mass production and can be inquired and ordered through the official WonkeDQ channelelectrical-terminalblock.com. This push-in terminal block may become an invisible necessity choice for upgrading the connection of industrial automation equipment.
