Male Female AWG 18 Waterproof Electrical Connectors WHE10C

The WKDQA Male Female AWG 18 Waterproof Electrical Connectors WHE10C you mentioned refer to a specific model or series of waterproof electrical connectors. These connectors are designed to accommodate AWG 18 wires and provide a waterproof or water-resistant connection. Here's what you need to know:

AWG 18 Wire Size: The connectors are suitable for wires with an AWG 18 gauge size. AWG 18 represents a specific wire diameter and current-carrying capacity. These connectors are designed to securely connect and transmit power for AWG 18 wires.

Waterproof or Water-resistant Design: The WHE10C connectors are specifically designed to provide protection against moisture and water ingress. They typically feature sealing gaskets, O-rings, or other sealing mechanisms to ensure a reliable electrical connection even in wet or damp conditions. The waterproof or water-resistant design helps to prevent water from entering the connector and causing damage.

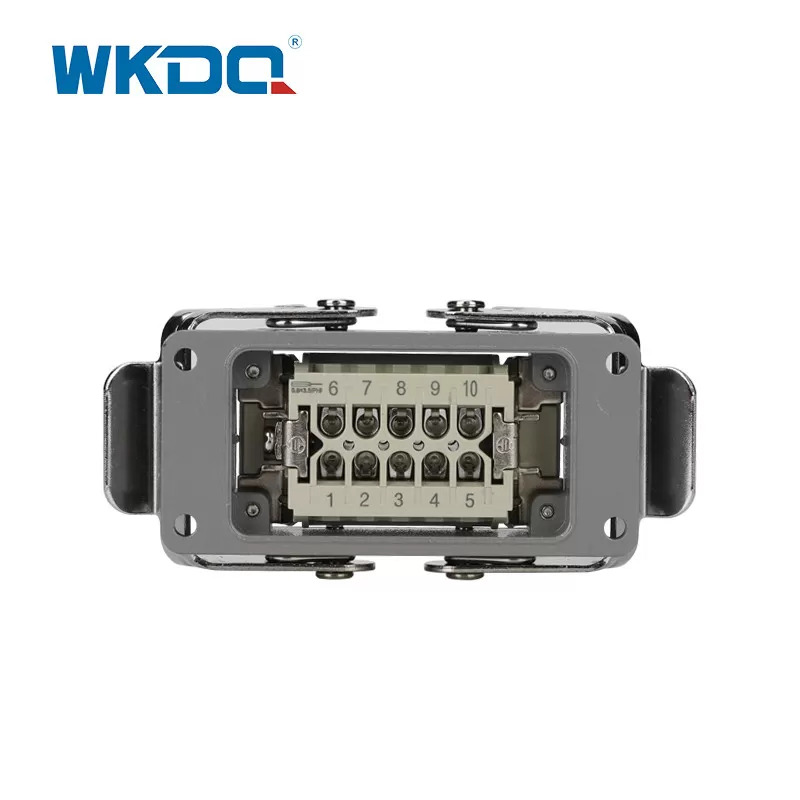

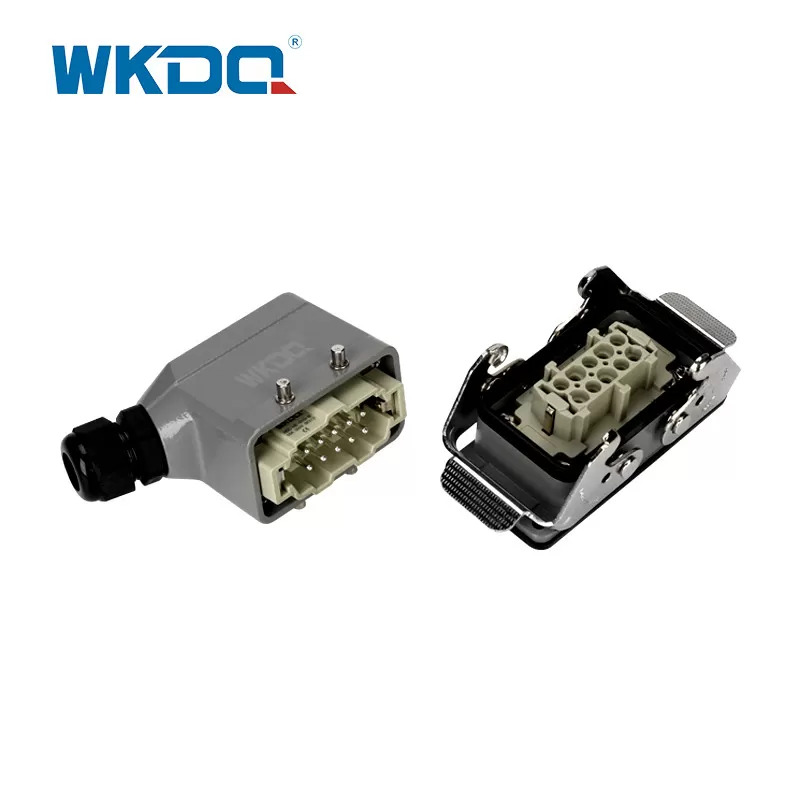

Male and Female Connectors: The connectors come in a male and female configuration. The male connector typically has pins or terminals, while the female connector has corresponding receptacles or sockets. When connected, the pins of the male connector insert into the sockets of the female connector, establishing an electrical connection.

The WHE10C connectors are often used in applications where a waterproof or water-resistant connection is required, such as outdoor installations or environments with exposure to moisture. They provide a reliable and secure electrical connection while protecting against water ingress.

To obtain specific details about the WHE10C connectors, including pin configuration, locking mechanism, and other features, it's recommended to consult the manufacturer's datasheets, product documentation, or reach out to the manufacturer directly. They will be able to provide you with precise information on the features and capabilities of the WHE10C connectors.

TECHNICAL PARAMETERS

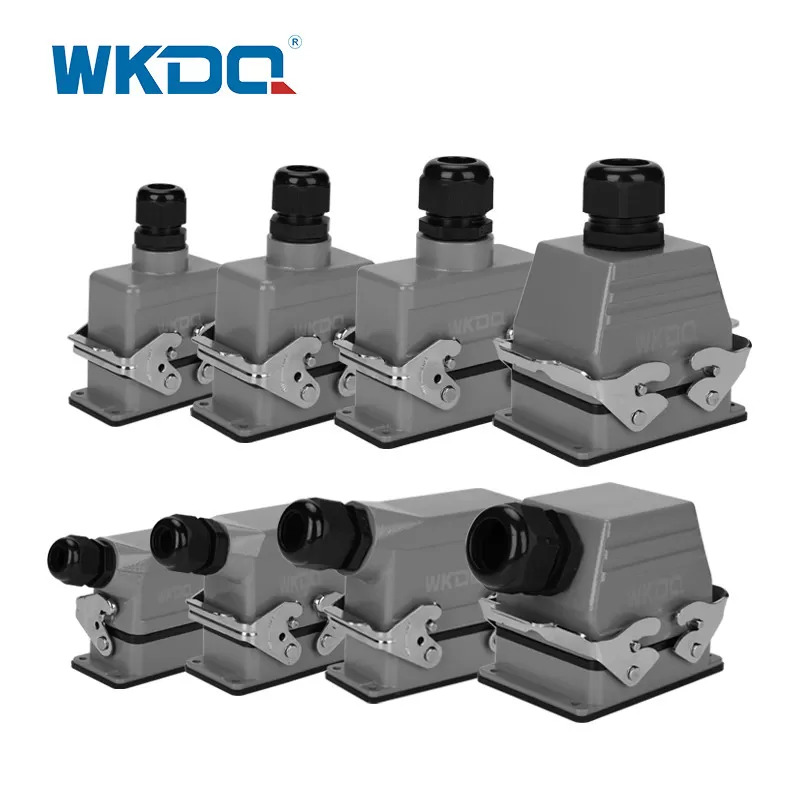

No.	PART NO.	Entry Side	Number of contact	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	G (mm)
Heavy-duty connector Voltage/Current: 500V/16A Surface: Sliver-plated Contact resistance: ≤1m ΩCross section: 1.0-2.5mm² (AWG 18-14) Tightening torque: 0.5Nm Stripping lenngth: 7mm

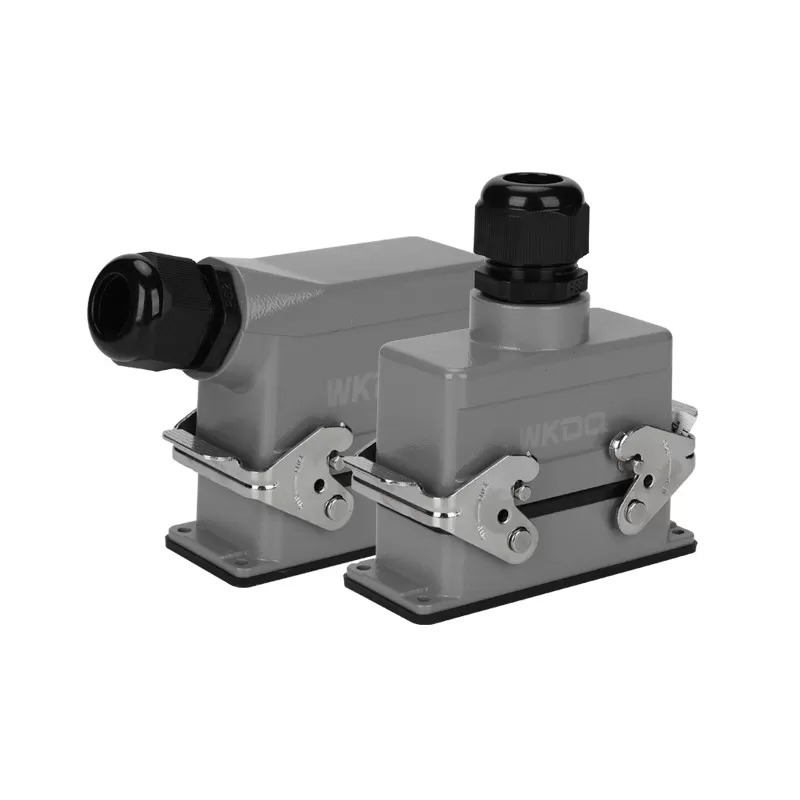

1	WHE06C	Side entry	6	80.0	43.0	52.2	35.0	32.0	70.0	4.3
2	WHE06D	Top entry	6	80.0	43.0	52.2	35.0	32.0	70.0	4.3

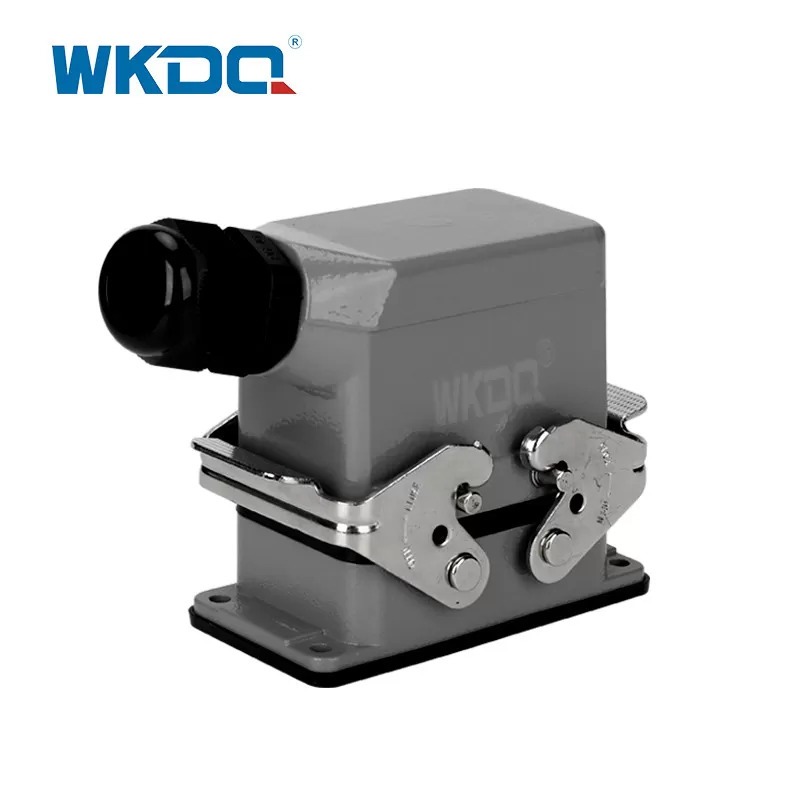

3	WHE10C	Side entry	10	93.0	43.0	65.2	35.0	32.0	83.0	4.3
4	WHE10D	Top entry	10	93.0	43.0	65.2	35.0	32.0	83.0	4.3
5	WHE16C	Side entry	16	113.0	43.0	85.5	35.0	32.0	103.0	4.3
6	WHE16D	Top entry	16	113.0	43.0	85.5	35.0	32.0	103.0	4.3
7	WHE24C	Side entry	24	140.0	43.0	112.2	35.0	32.0	130.0	4.3
8	WHE24D	Top entry	24	140.0	43.0	112.2	35.0	32.0	130.0	4.3
9	WHE32C	Side entry	32	113.0	80.5	86.0	73.0	60.0	103.0	4.5
10	WHE32D	Top entry	32	113.0	80.5	86.0	73.0	60.0	103.0	4.5
11	WHE48C	Side entry	48	140.0	80.5	113.0	73.0	60.0	130.0	4.5
12	WH48D	Top entry	48	140.0	80.5	113.0	73.0	60.0	130.0	4.5
