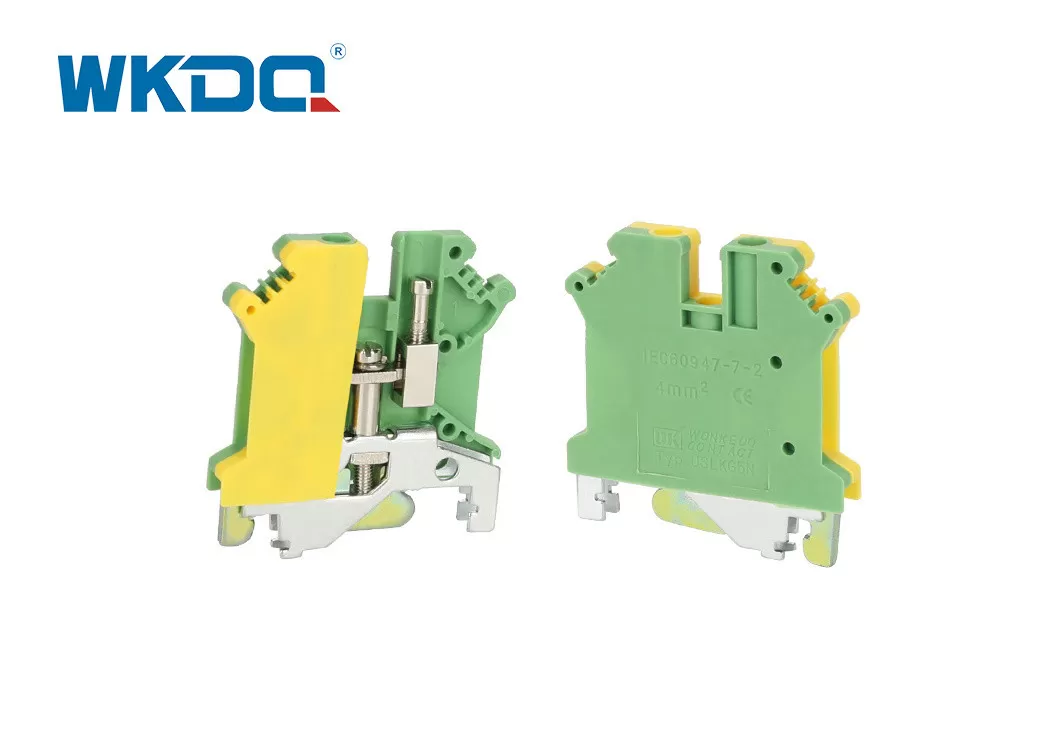

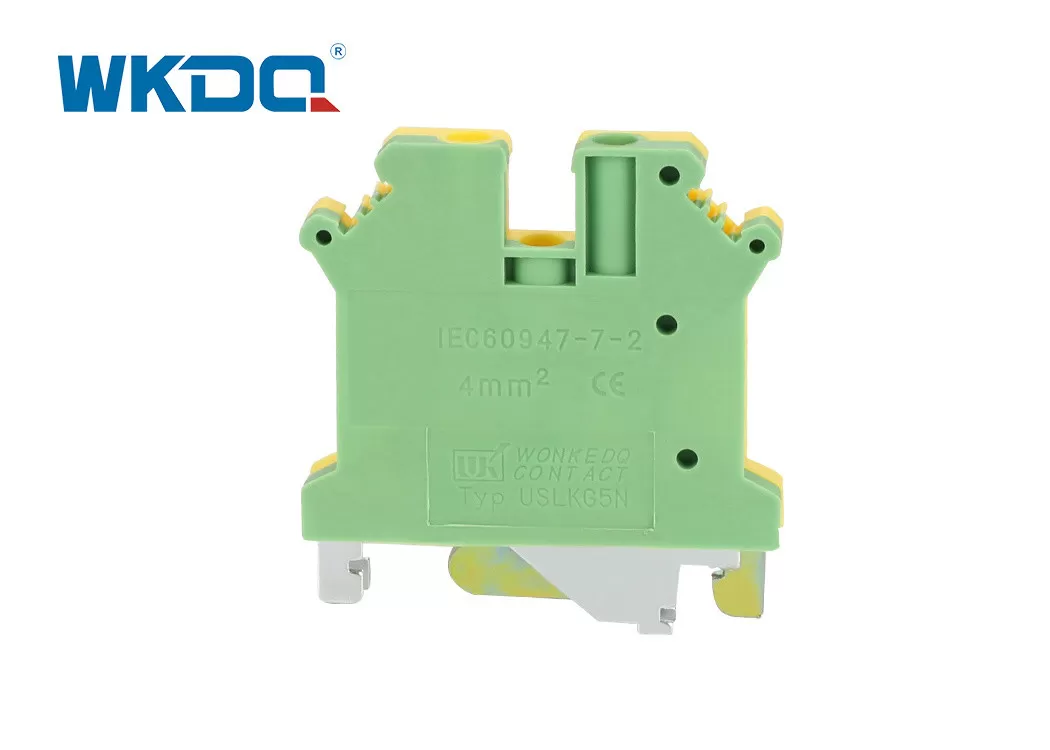

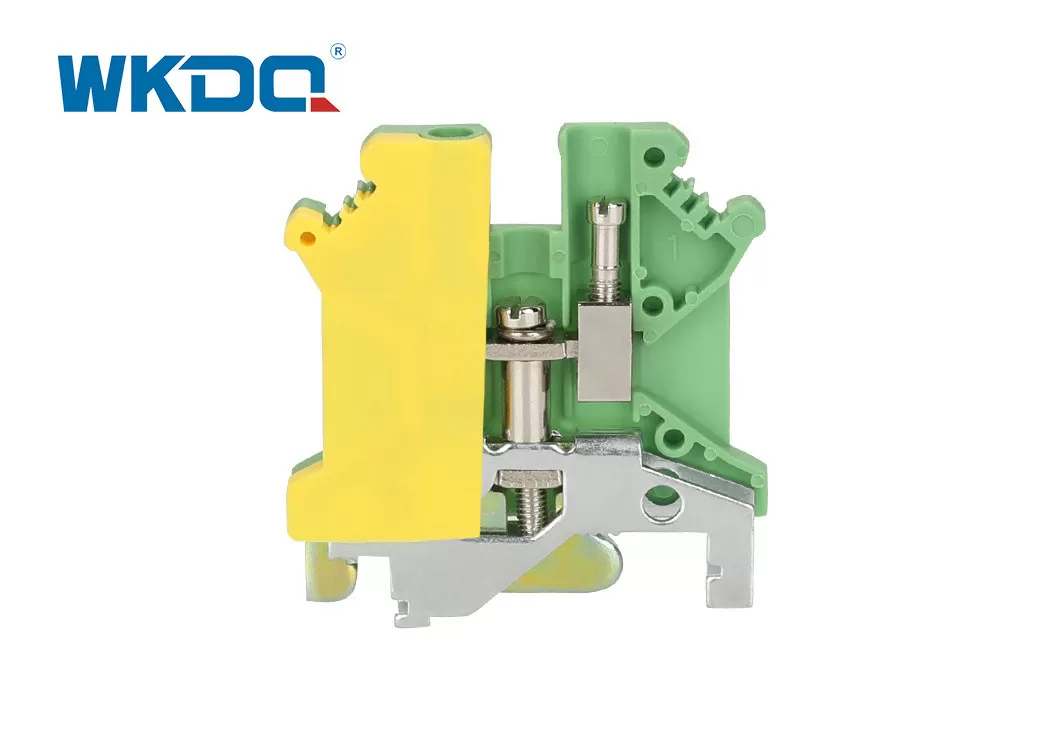

Screw Terminal Ground Block

Our terminal blocks feature a widely recognized and reliable screw connection that meets stringent requirements, making them suitable for a diverse range of applications. This proven screw connection ensures secure and efficient wiring, even for large conductor cross sections.

The terminal blocks in the JUK universal screw terminal block series are constructed with high-quality engineering flame-resistant nylon PA66 and brass conductors, guaranteeing durability and safety in various operating conditions.

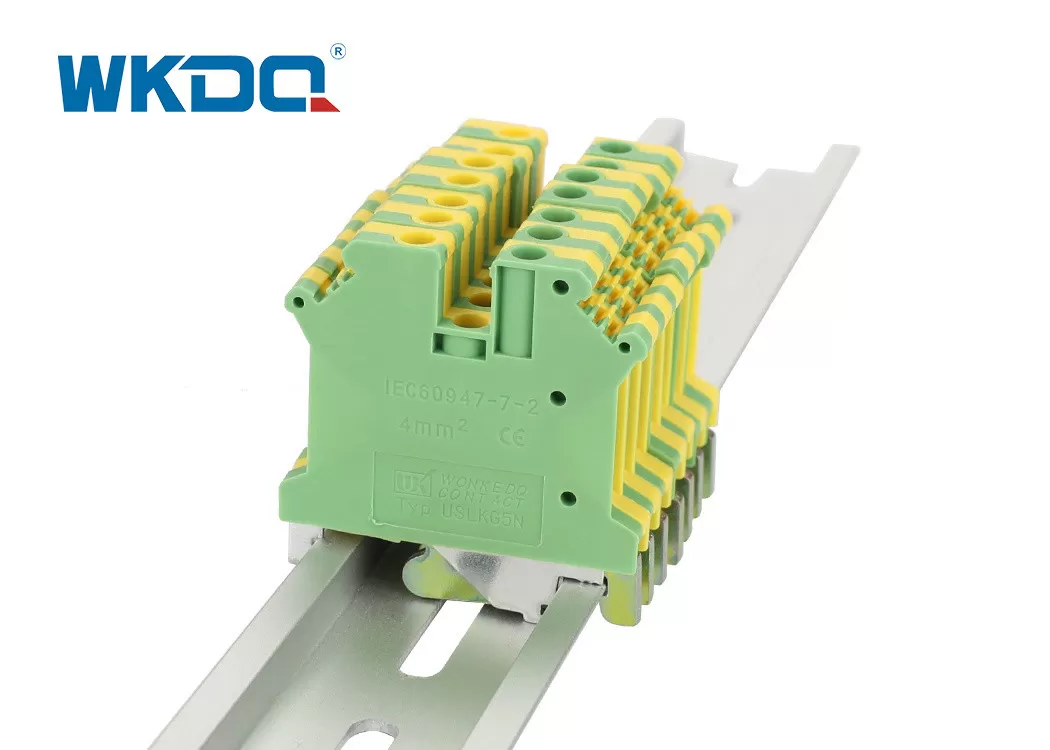

With their universal foot, these terminal blocks can be effortlessly installed on Din Rail NS 35, providing a flexible and adaptable mounting solution that suits different setups.

These terminal blocks facilitate easy and secure connections for two conductors, even with large conductor cross sections, ensuring reliable electrical connections and optimal performance.

Flexible electric potential distribution can be achieved using fixed bridges in the terminal center or insertion bridges in the clamping space, allowing for customizable wiring configurations that meet specific requirements.

For ground connections, our terminal blocks offer a simple and convenient solution. With a quick click, they can be securely snapped onto the DIN rail, establishing a reliable protective earth (PE) connection.

To enhance functionality and adaptability, we provide an extensive range of accessories such as end covers, end stoppers, partition plates, separating plates, marker strips, fixed bridges, and insertion bridges. These accessories enable comprehensive and customized terminal block setups to meet diverse wiring needs.

In summary, our terminal blocks with screw connections offer reliability, safety, and efficient wiring solutions. Constructed from high-quality materials, they ensure secure electrical connections and optimal performance. With their universal foot and compatibility with Din Rail NS 35, these terminal blocks provide flexibility in installation. The availability of a wide range of accessories further enhances their functionality and allows for customization.

Model No.	JUSLKG 5N, Ground Modular Terminal Block
Color	Yellow/Green, other color can be customized
Length/Height/Wide (mm)	42.5/46/6.2
Connection method	Screw connection
Material	Flame resistant Nylon PA66, Nickel plated brass conductor
Rated Voltage/Current	800V/41A
Cross section, solid/soft Cable	0.2-6 mm² /0.2-4 mm²
Conductor Size	24-10 AWG
Mounting Type	DIN Rail NS 35
Standard	IEC 60947-7-1
LOGO	WonkeDQ, LOGO can be customized
Packing Detail	18.87g/pc, 50PCS/BOX, 1100PCS/CTN
Certification	CE/RoHS/CQC/ISO 9001
