JUSLKG 3N Electrical Wire Terminal Blocks IEC Standard Esay Installation High Safety

Product Details:
Place of Origin: China
Brand Name: WKDQ
Certification: CE, RoHs, CQC,etc
Model Number: JUSLKG 3N

Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Packaging Details: Box
Delivery Time: 2-7 days
Payment Terms: T/T, Paypal, Western Union, etc

Model:JUSLKG 3N

Send Inquiry

Product Description

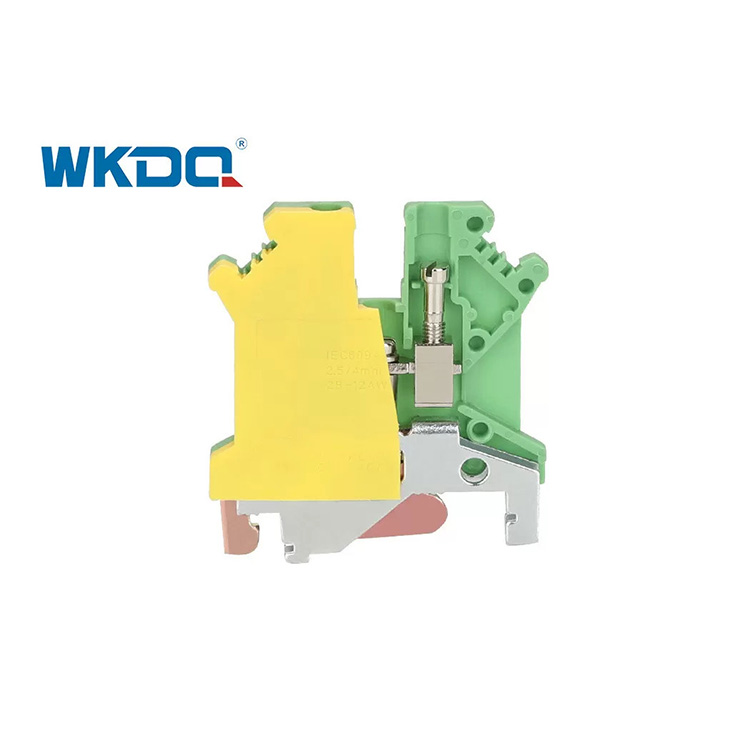

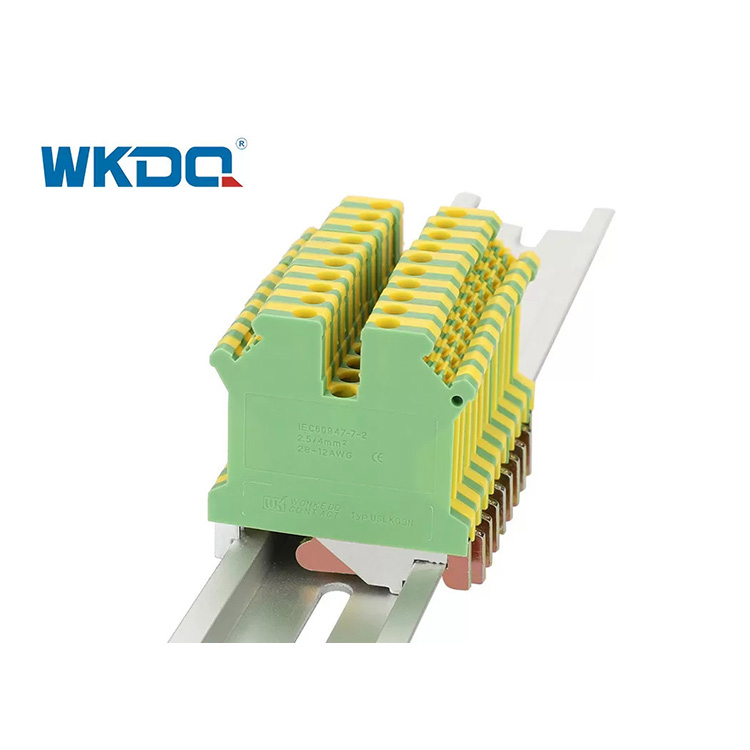

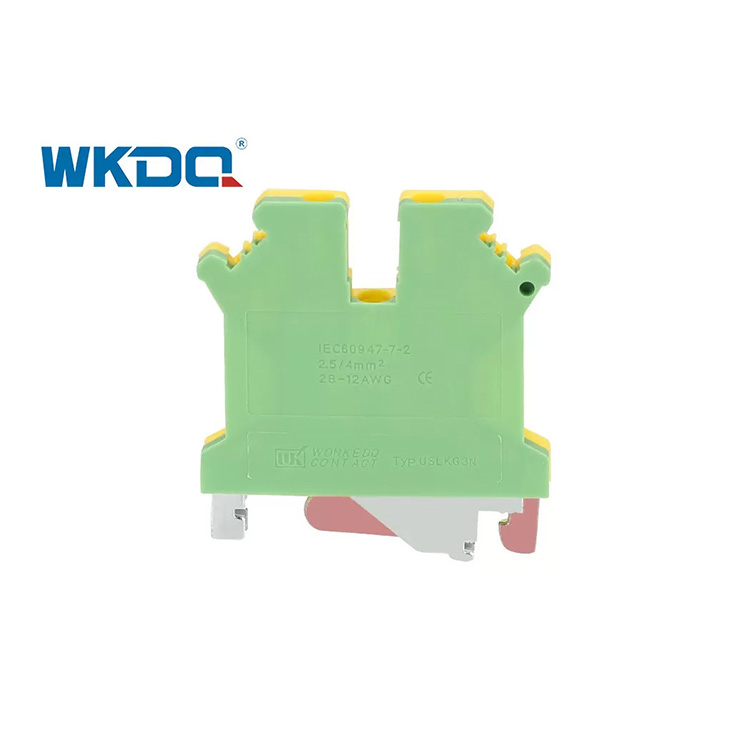

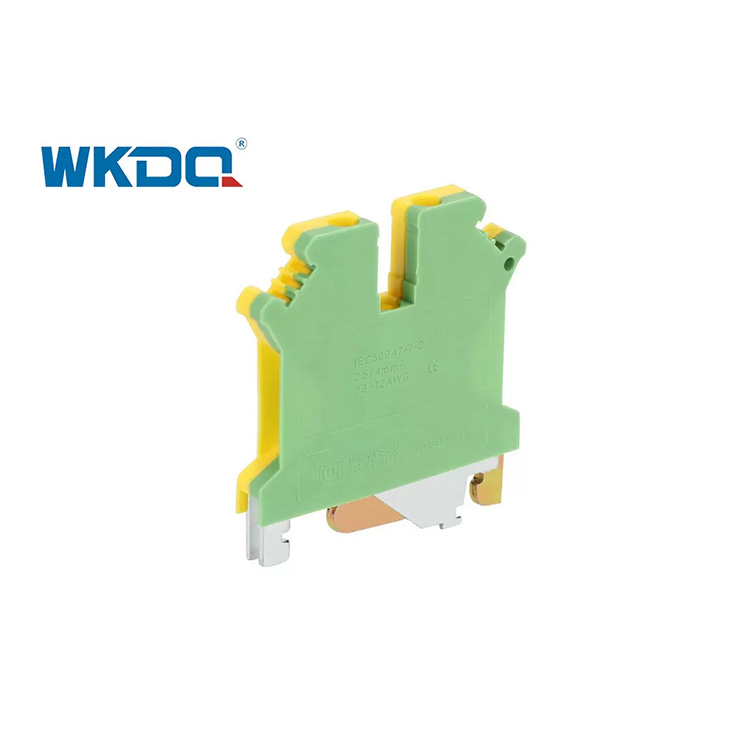

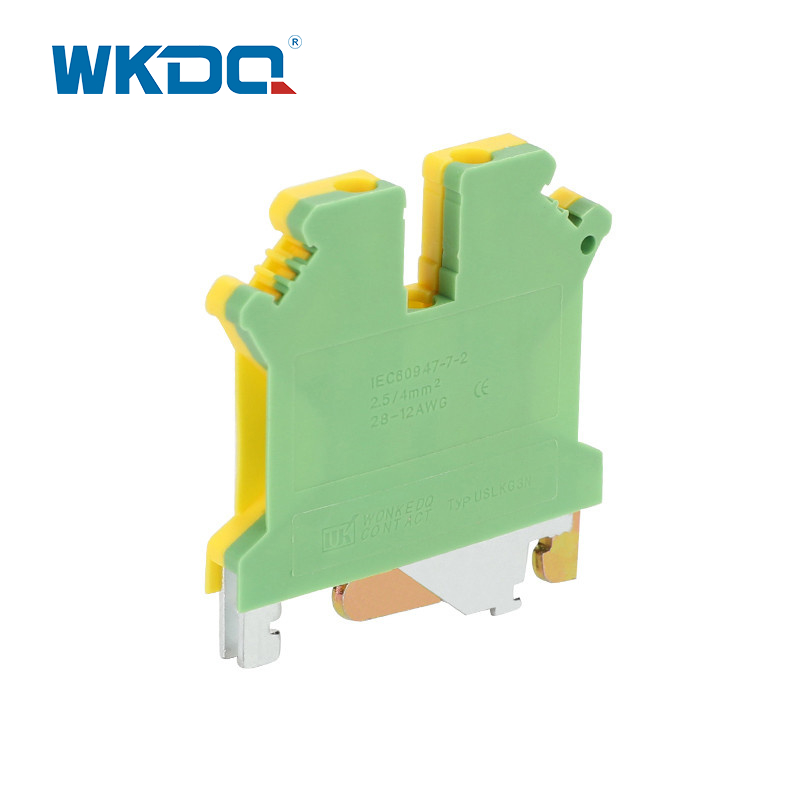

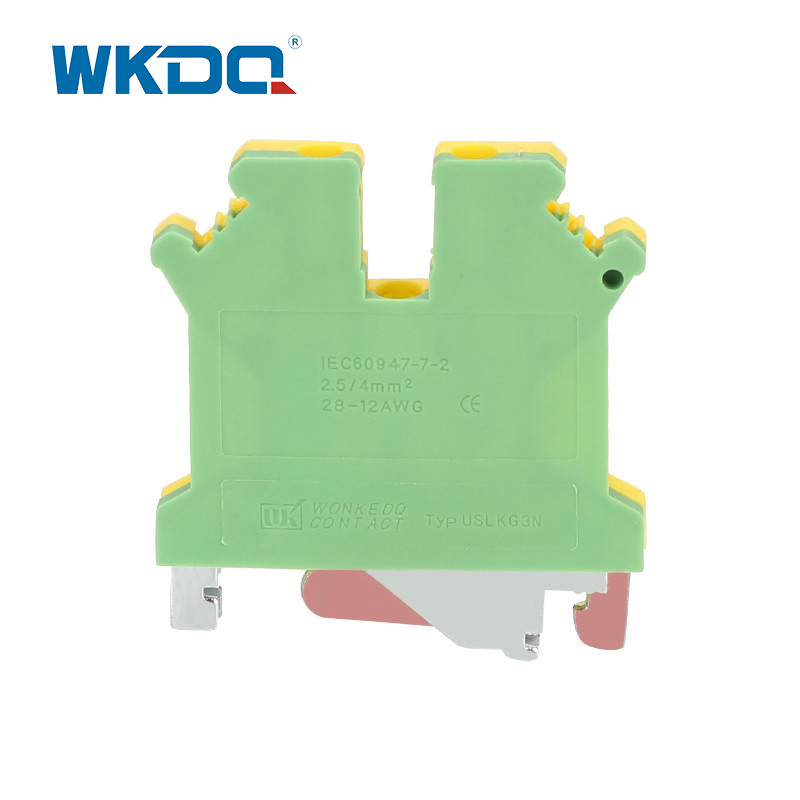

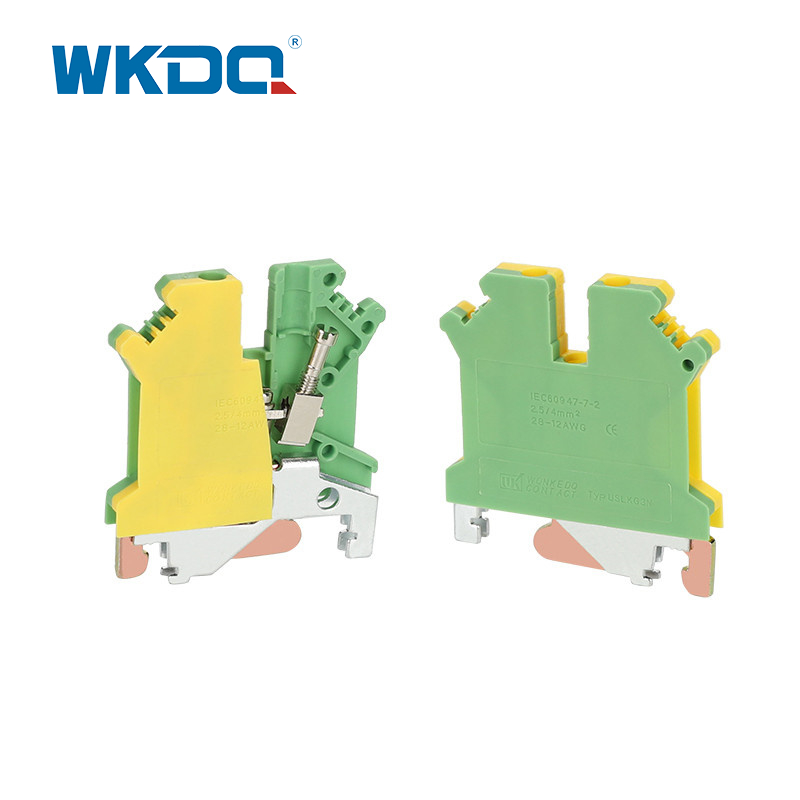

The grounding terminal block has a low contact resistance that complies with international standards, and its green and yellow color combination is easy to identify. Flame-retardant PA66+ high-strength copper components are durable, and anti-corrosion contacts + strong contact force ensure safety. Compact design saves space and is suitable for narrow areas. Universal feet are easy to install DIN 35 guide rails. Equipped with high-quality accessories, it supports large-diameter wires (with or without terminals) connection, which is practical and reliable.

Technical Parameters

Model No.	JUSLKG 3, Ground Modular Terminal Block
Color	Yellow/Green, other color can be customized
Length/Height/Wide (mm)	42.5/46.2/5.2
Connection method	Screw connection
Material	Flame resistant Nylon PA66, Nickel plated brass conductor
Rated Voltage/Current	800V/101A
Cross section, solid/soft Cable	0.2-4 mm² /0.2-2.5 mm²
Conductor Size	24-12 AWG
Mounting Type	DIN Rail NS 35
Standard	IEC 60947-7-1
LOGO	WonkeDQ, LOGO can be customized
Packing Detail	16.13g/pc, 50PCS/BOX, 1300PCS/CTN
Certification	CE/RoHS/CQC/ISO 9001
