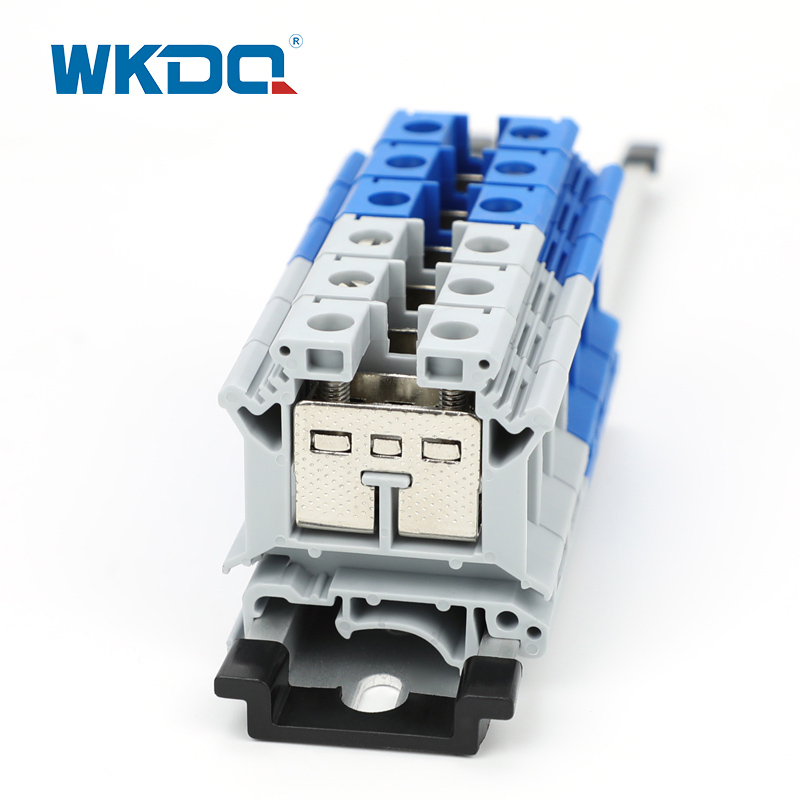

HIgh Current Feed Through Terminal Block

The UK series screw terminal blocks are specifically designed to accommodate a wide range of cable cross-sections, including both rigid and flexible wires. They provide versatility and compatibility for various wiring applications.

These terminal blocks feature standardized end plates and partitions across multiple types, making it simple to combine different variants together. The pre-assembled and divisible cross-connection system allows for convenient customization, and unwanted cross-connections can be easily removed.

With a combination foot design, these terminal blocks can be securely mounted on NS 35mm mounting rails, ensuring stable installation.

The terminal insulation body is constructed from durable and reliable polyamide 6.6 material, which provides excellent insulation properties. Tightening the cables is effortless with a screwdriver, ensuring a secure and reliable connection.

To prevent wire splitting, the terminal blocks feature a closed cable entry design, providing added protection and maintaining the integrity of the wiring.

Corrosion-proof contact points guarantee long-lasting performance and minimize the need for maintenance. The space-saving design of the terminal blocks enables efficient utilization of space while maintaining stable and low contact resistances.

The similarity in outline from JUK 6N to JUK 10N allows for the universal use of end covers and grouping separators, offering flexibility and convenience in installations.

A wide range of high-quality accessories is available for these terminal blocks, allowing for customization and enhancing functionality.

The terminal blocks provide excellent distribution connections for conductors, eliminating the need for special cable preparation. They also include protective conductor terminals suitable for various terminal sizes, ensuring reliable and safe connections.

Certain sizes of terminal blocks allow for the simultaneous mounting of up to 10 marker strips, facilitating clear and organized identification.

These single-level feed-through terminal blocks are designed for voltages up to 1000V and currents up to 232A. They support wire sizes ranging from AWG 22 to 2 (0.5mm2 to 35mm2), catering to a wide range of wiring requirements.

In summary, the UK series screw terminal blocks offer versatility, convenience, and reliability. With their compatibility for different cable cross-sections, standardized end plates and partitions, pre-assembled cross-connection system, corrosion-proof contact points, and a wide range of high-quality accessories, these terminal blocks provide an excellent distribution connection solution for various applications without the need for special cable preparations.

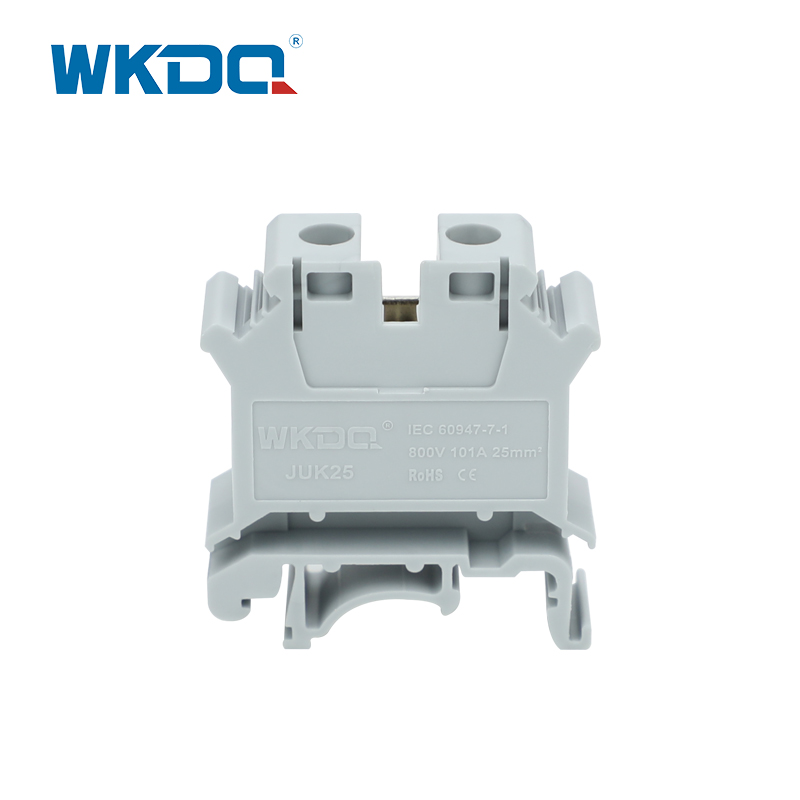

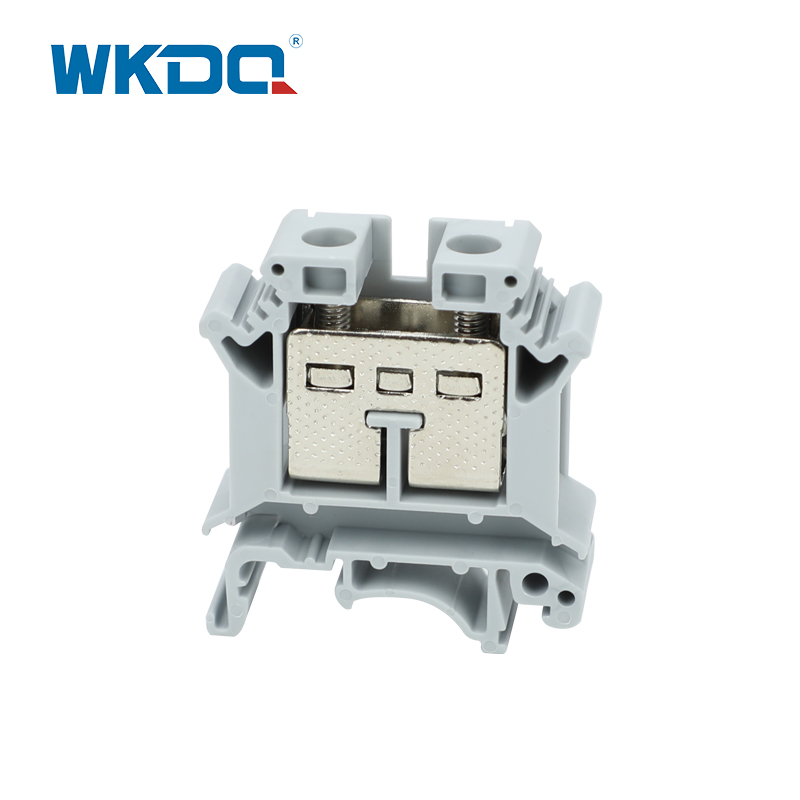

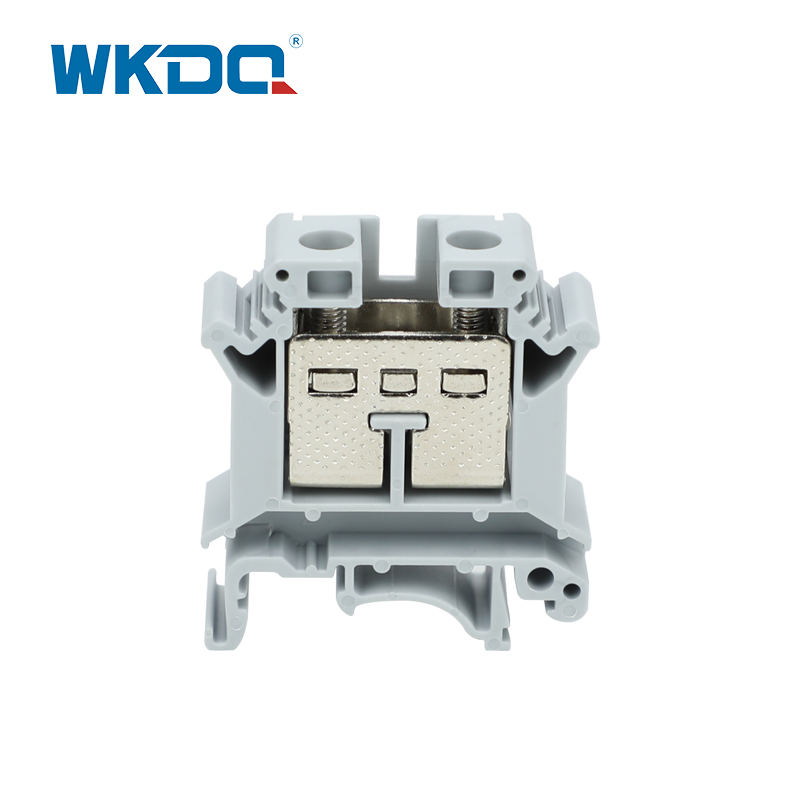

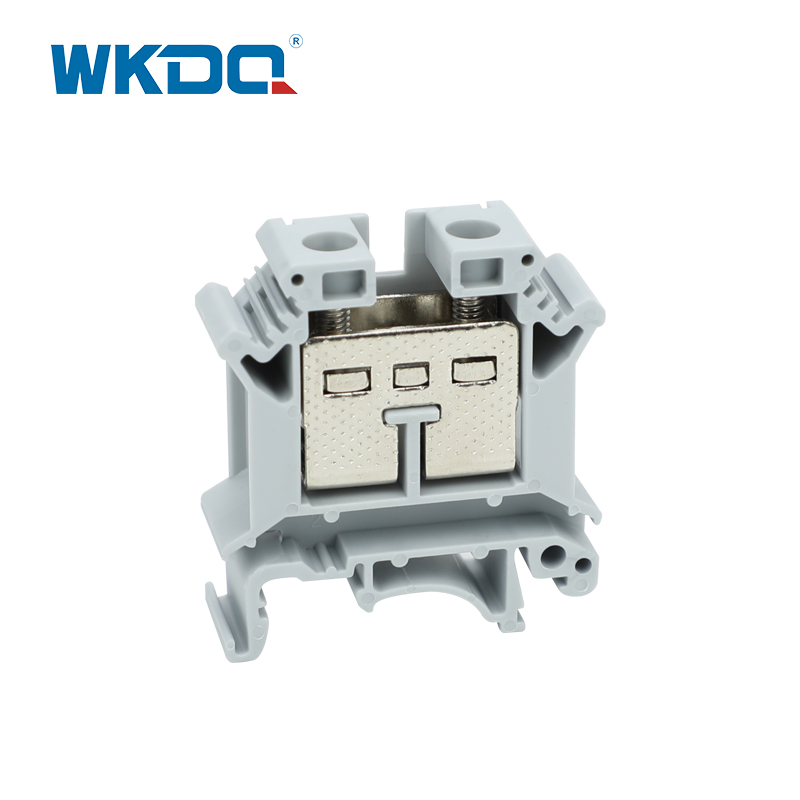

Model No.	JUK 25

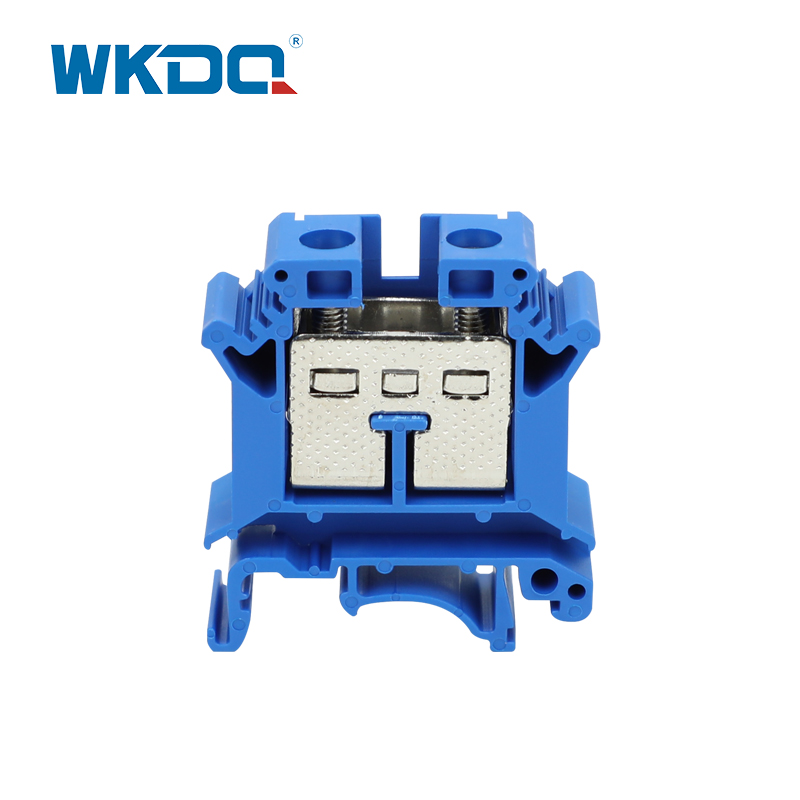

Color	Grey, Blue, other color can be customized
Length/Height/Wide (mm)	42.5/46.2/14.2
Connection method	Screw connection
Material	Flame resistant Nylon PA66, Nickel plated brass conductor
Rated Voltage/Current	800V/101A
Cross section, solid/soft Cable	2.5-35mm² / 2.5-25mm²
Mounting Type	DIN Rail NS 35
Standard	IEC 60947-7-1
LOGO	WonkeDQ, LOGO can be customized
Packing Detail	22.74g/pc, 40PCS/BOX, 800PCS/CTN
Certification	CE/RoHS/CQC/ISO 9001

·
