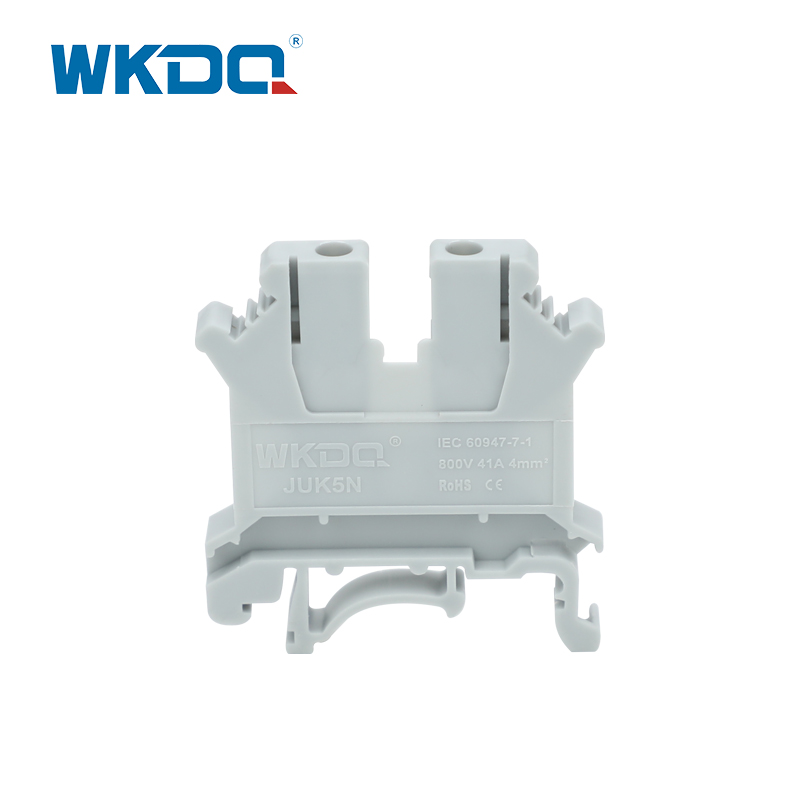

Feed Through Terminals Blocks

The "JUK Proven Safe Reliable" screw connection system offers an innovative range of feed-through and protective-earth terminals with a cross-section ranging from 1.5 to 240 mm2. These screw terminal blocks provide a secure and reliable connection for both solid and finely stranded wires, ensuring quick and safe installations.

Designed to meet global standards, the screw terminal blocks are suitable for mounting on standard 35mm DIN rails. They eliminate the need for pre-treatment of wires, making them compatible with various wire types, including stranded wires.

The JUK universal screw terminal block series embodies essential features necessary for practical applications. Constructed from industrial-grade anti-flaming nylon PA66, these terminal blocks are highly durable. The electrical conductive bar is made from nickel-plated brass, ensuring excellent conductivity and corrosion resistance.

Installation is made easy with the screw terminal blocks, reducing overall installation costs and expediting the wiring process. Their space-saving design optimizes the utilization of available space. Additionally, the terminal blocks offer stable and low contact resistances, ensuring reliable electrical connections.

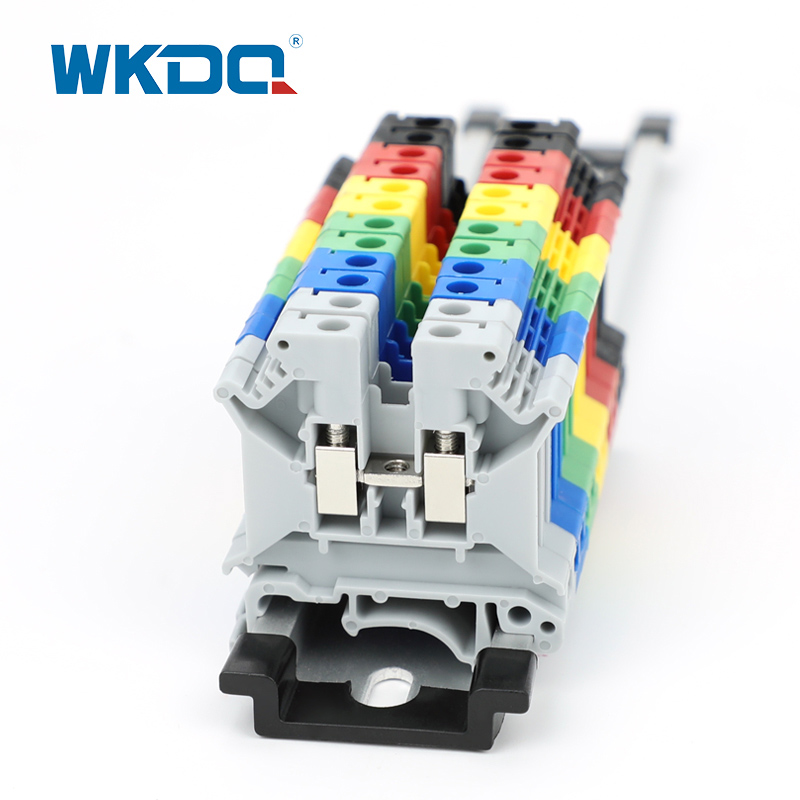

These terminal blocks can be conveniently snapped onto NS35 DIN rails, providing secure mounting. The JUK 6N to JUK 10N models share a similar outline, allowing for universal use of end covers and grouping separators, further enhancing versatility and compatibility.

A comprehensive range of high-quality accessories is available for the screw terminal blocks, including end covers, end stoppers, partition plates, marker strips, fixed bridges, insertion bridges, and more. These accessories further enhance the functionality and customization options of the terminal blocks.

In summary, the "JUK Proven Safe Reliable" screw connection system provides a reliable and efficient solution for electrical connections. With their easy installation, space-saving design, high-quality materials, and compatibility with DIN rails, these screw terminal blocks meet the demands of various practical applications. The availability of a wide range of accessories ensures versatility and customization to suit specific wiring needs.

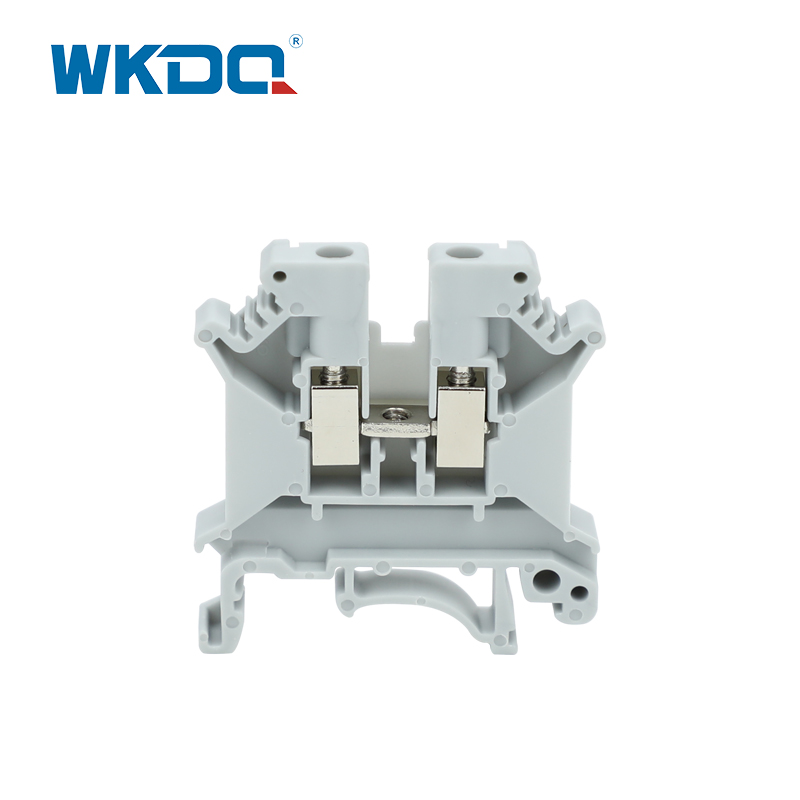

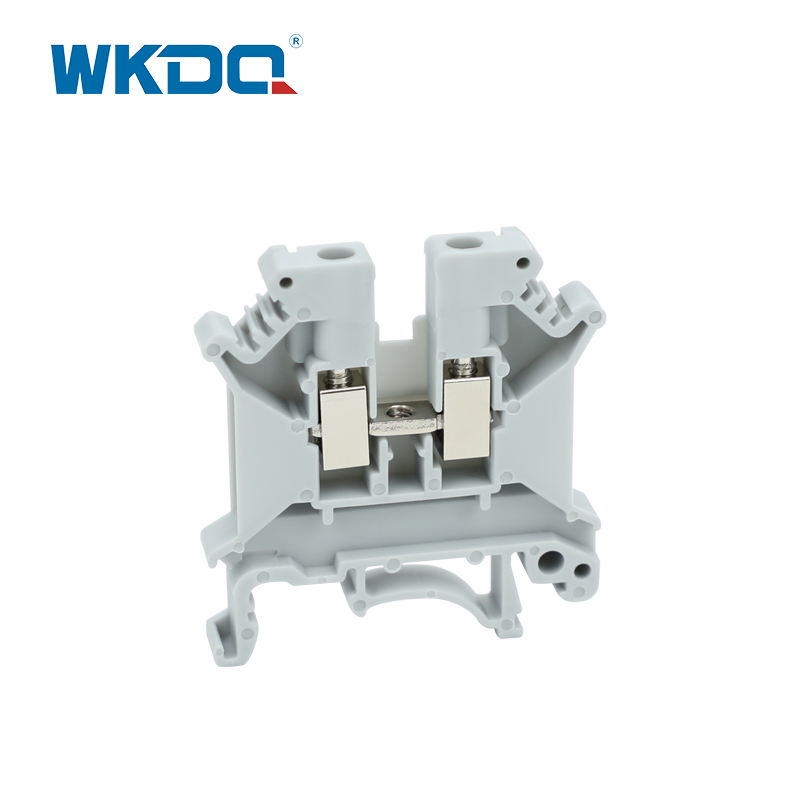

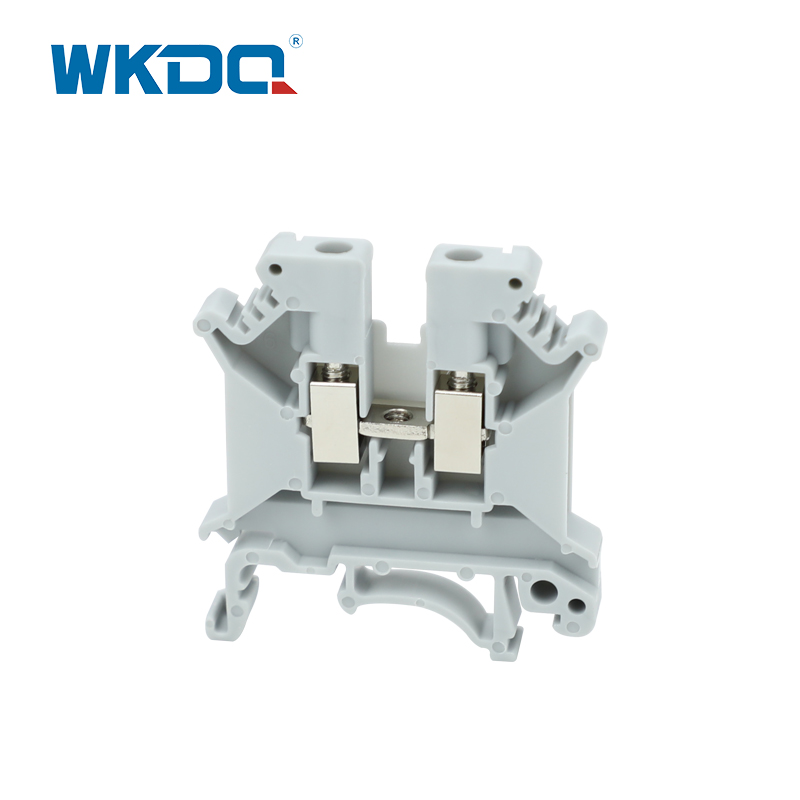

Model Number	JUK 3N

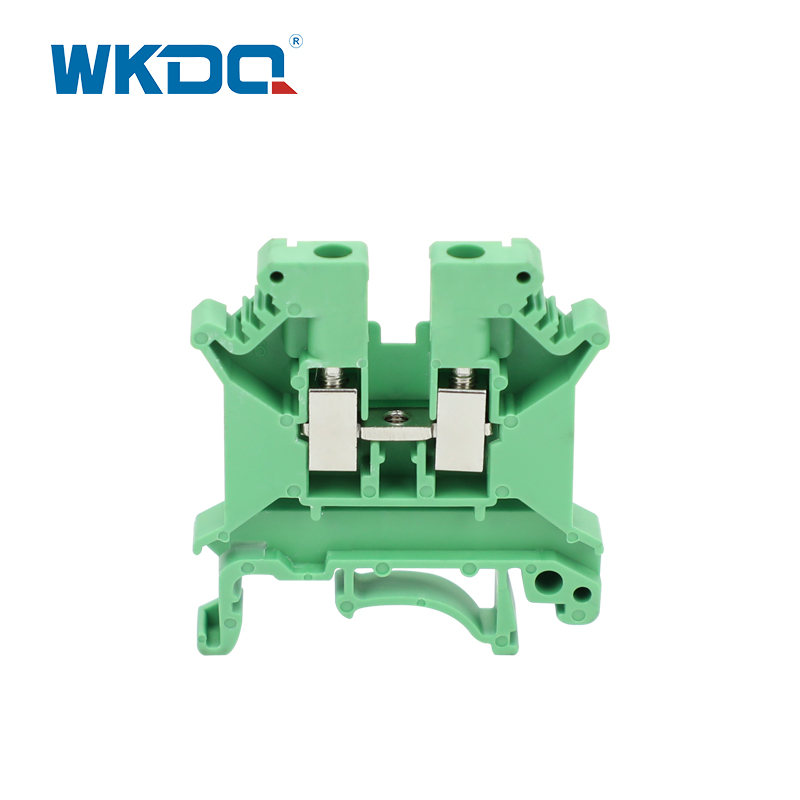

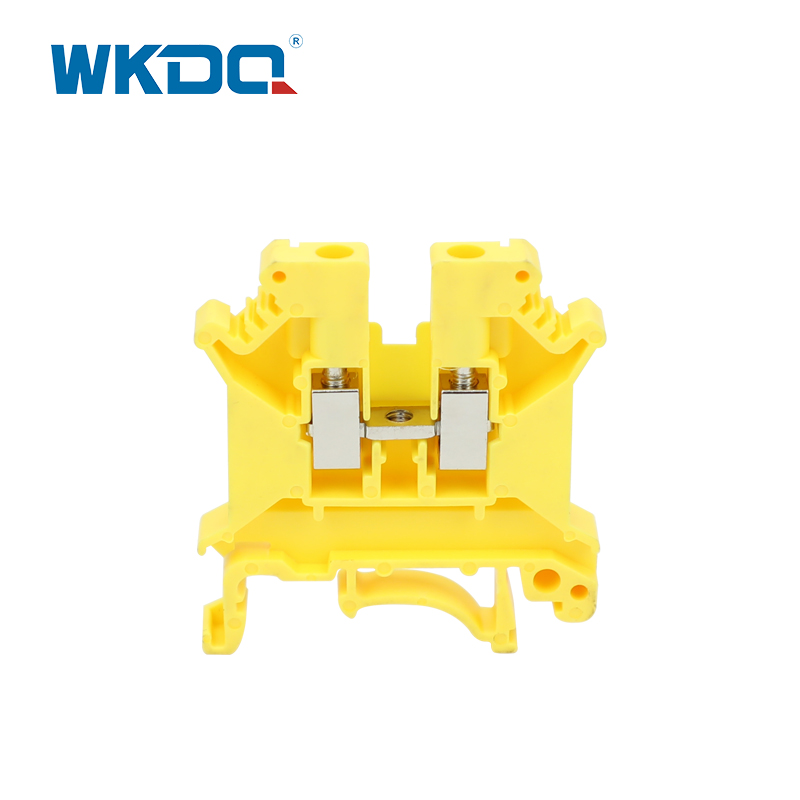

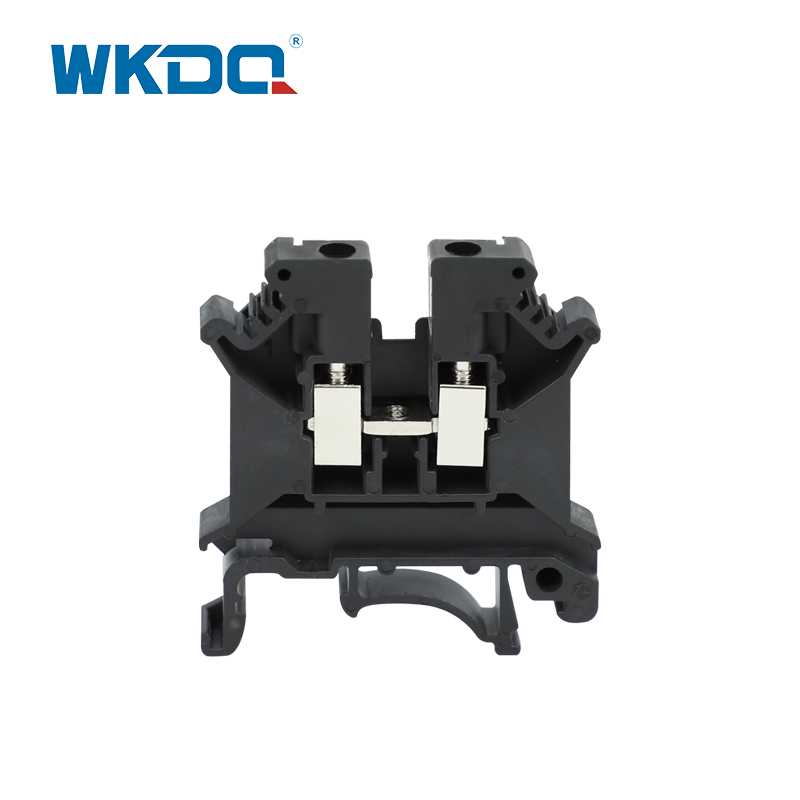

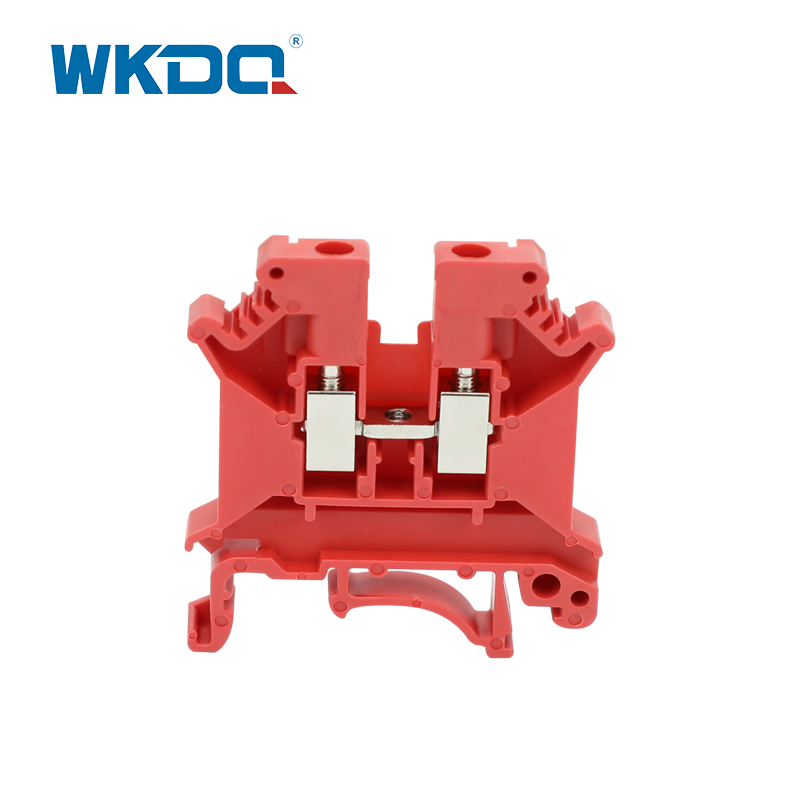

Color	Grey, Blue, other color can be customized
Length/Height/Wide (mm)	42.5/46.2/5.2
Connection method	Screw connection
Material	Nylon PA66
Rated Voltage/Current	800V/32A
Cross section, solid/soft Cable	0.2-4 mm / 0.2-2.5 mm
Conductor Size	24-12 AWG
Mounting Type	NS 35/7.5
Standard	IEC 60947-7-1
LOGO	WonkeDQ, Customized logo are supported
Packing Detail	7.04g/pc, 50PCS/BOX,3500PCS/CTN
Certification	CE/RoHS/CQC/ISO 9001
