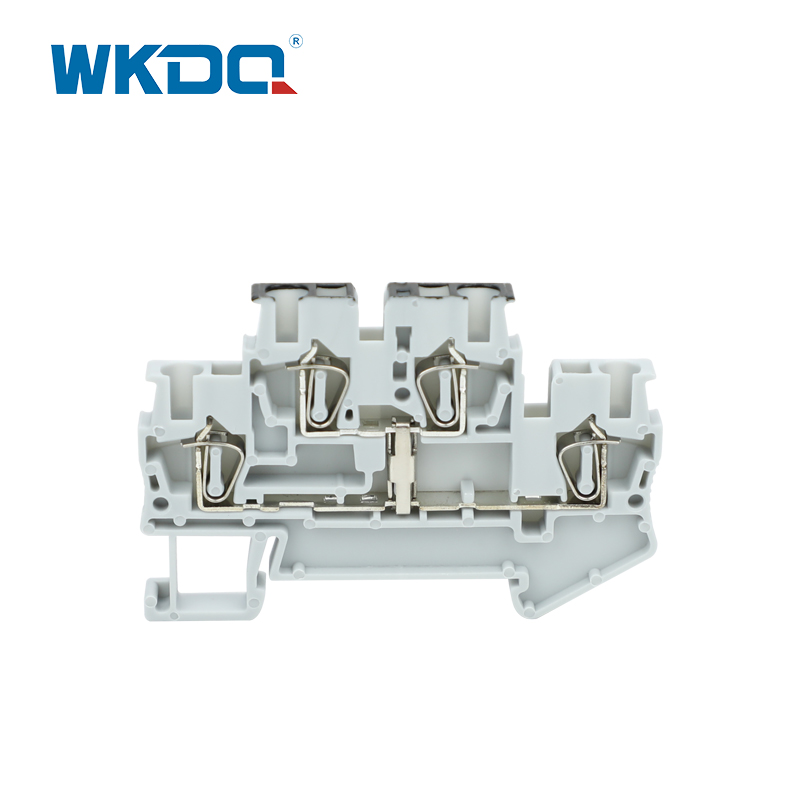

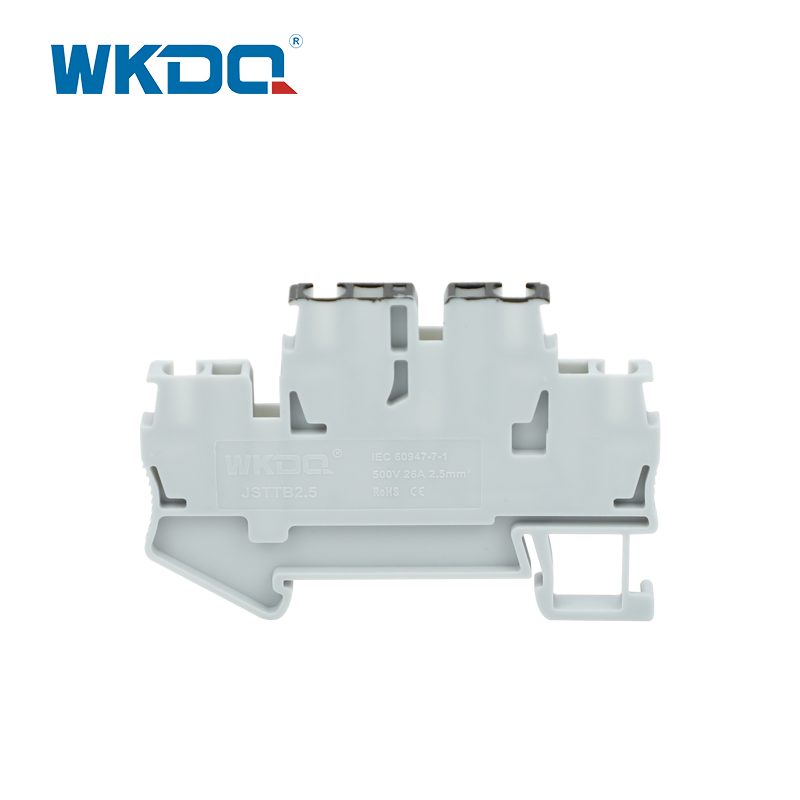

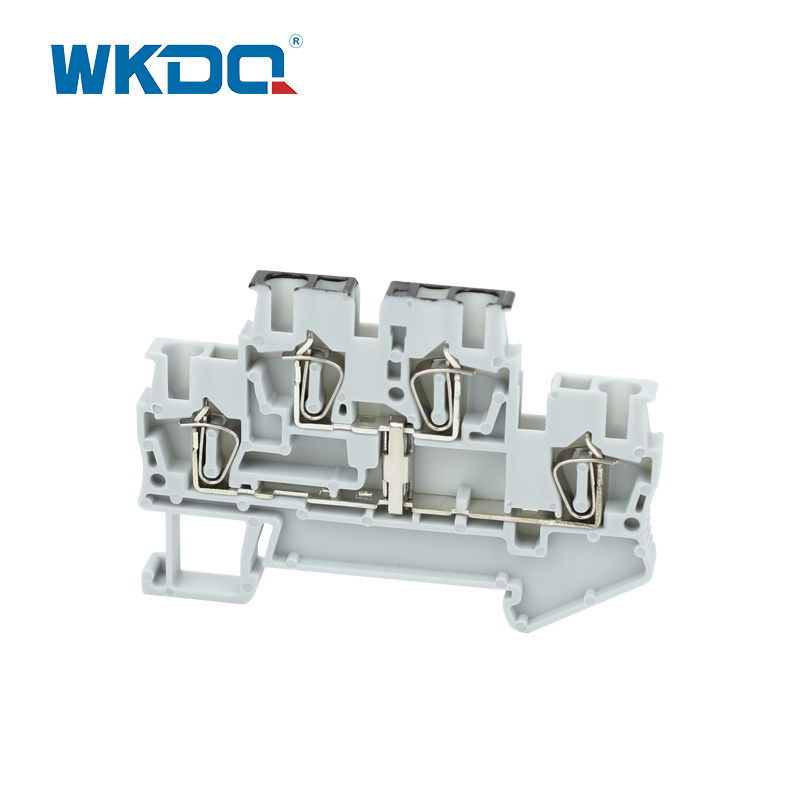

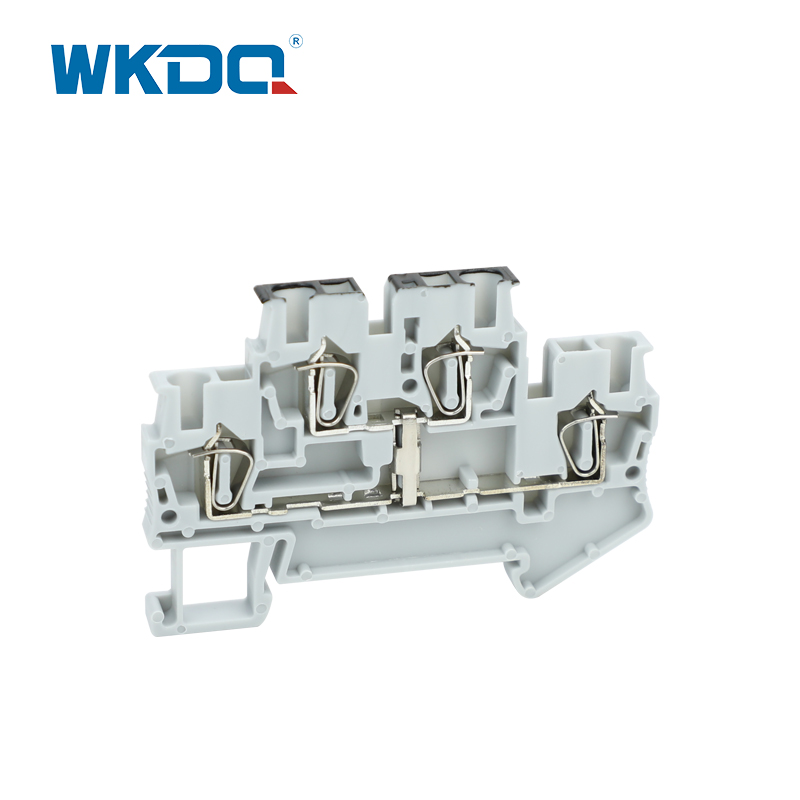

2 Layer Terminal Block

Introducing our double-level terminal block with equipotential bonder, a solution designed to provide convenient wiring options while maintaining a compact design. These spring terminal blocks offer increased wiring density, making them ideal for applications with limited space. With the capability to accommodate up to three potentials within a single terminal housing, they provide versatile connectivity solutions.

Key features of our double-level terminal block with equipotential bonder include:

Easy operation, ensuring hassle-free installation and maintenance.
Long-lasting durability, guaranteeing reliable performance over an extended period.
Corrosion-proof contact points, ensuring a secure and stable connection.
Gas-tight connection for enhanced reliability and safety.
Multiple identification bits for efficient circuit identification.
High-quality materials guarantee superior performance and longevity.
Simple potential distribution using function shafts on each level, allowing for easy routing of potentials.
Labeling area provided for each level, ensuring clear and organized identification.
Universal foot suitable for Din Rail 35mm, facilitating convenient installation.
Wide range of accessories available, including end covers, end brackets, marking strips, and plug-in bridges, catering to various application needs.
Choose our double-level terminal block with equipotential bonder for convenient wiring solutions without compromising on space or reliability. With its user-friendly operation, corrosion-proof contact points, and extensive accessory options, it provides a reliable and versatile solution for your electrical connections.

Part No.	JSTTB 2.5-PV

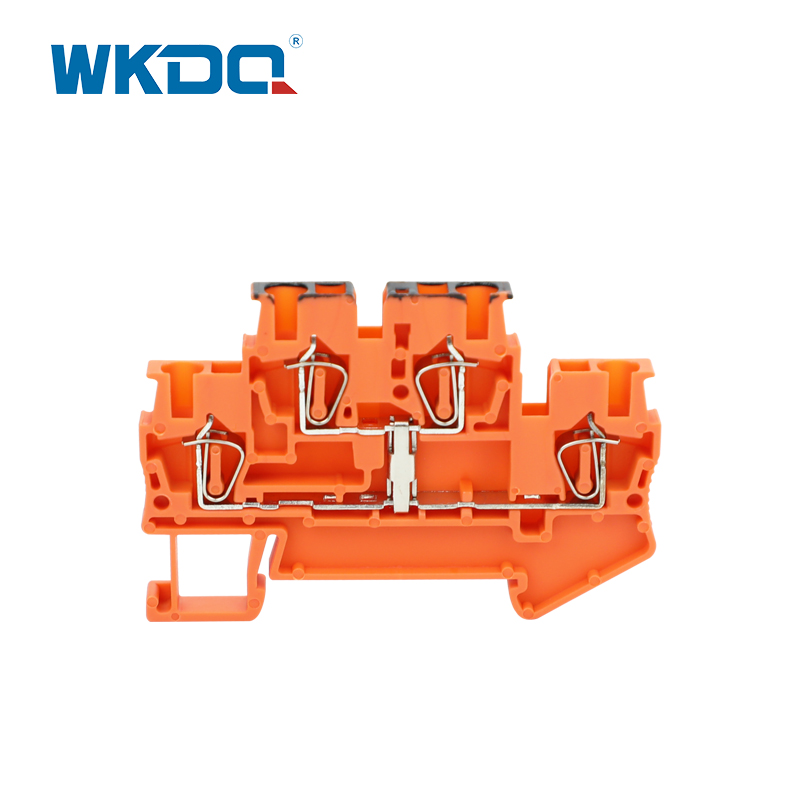

Color	Grey,other colors are also available.
Length/Height/Wide (mm)	68/46/5.2
Connection method	Spring-cage connection
Material	V0 Anti-Flaming PA66, Tin plated copper
Rated Voltage/Current	500V/24A
Cross section, solid/soft Cable	0.2-4mm² / 0.2-2.5 mm²
Conductor Size	24-12 AWG

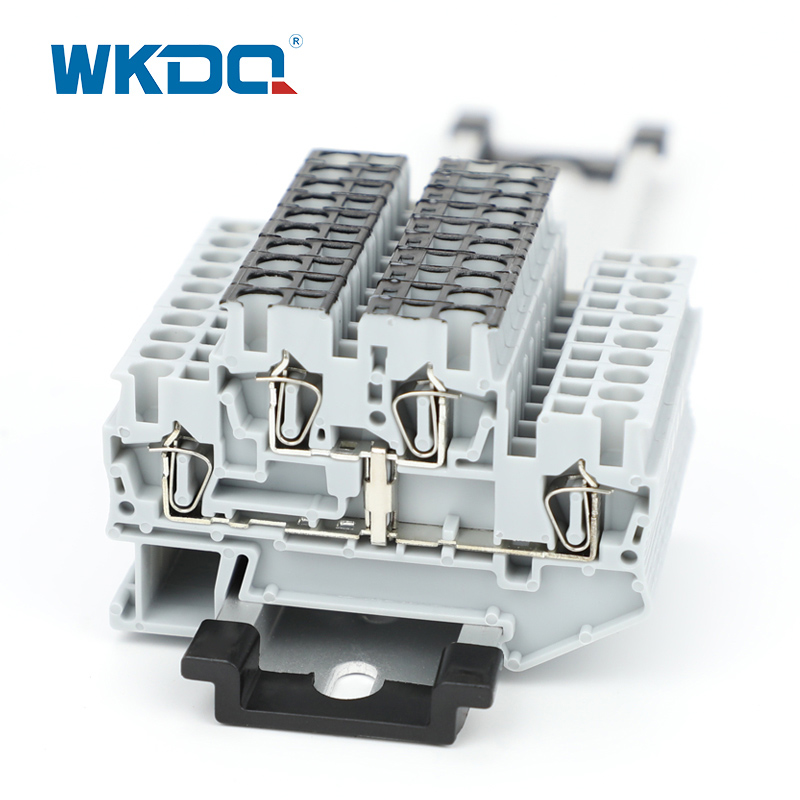

Mounting Type	NS 35 DIN Mount
Standard	IEC 60947-7-1
LOGO	Customized logo are supported
Packing Detail	10.1g/pc, 50PCS/BOX, 1500PCS/CTN
Certification	CE/RoHS/CQC/ISO 9001
