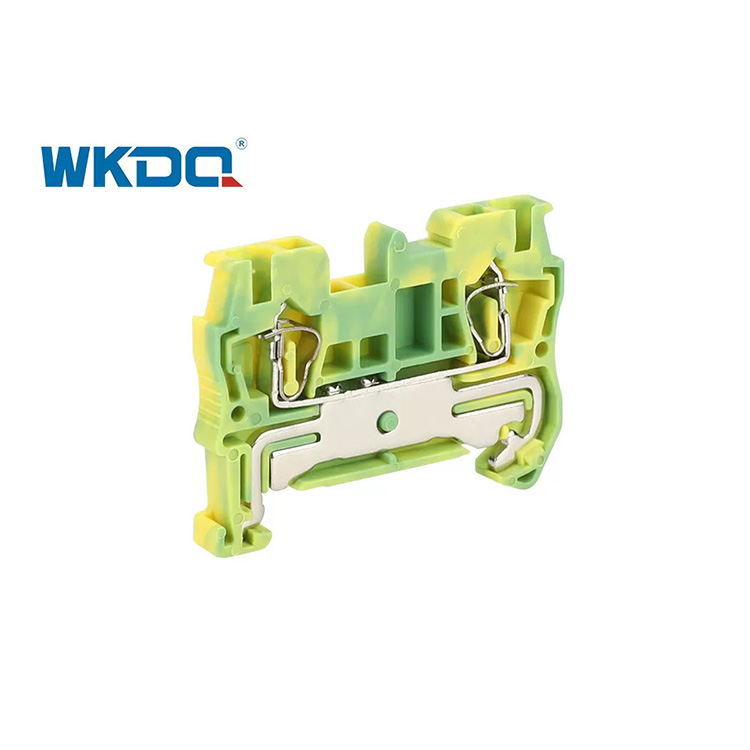

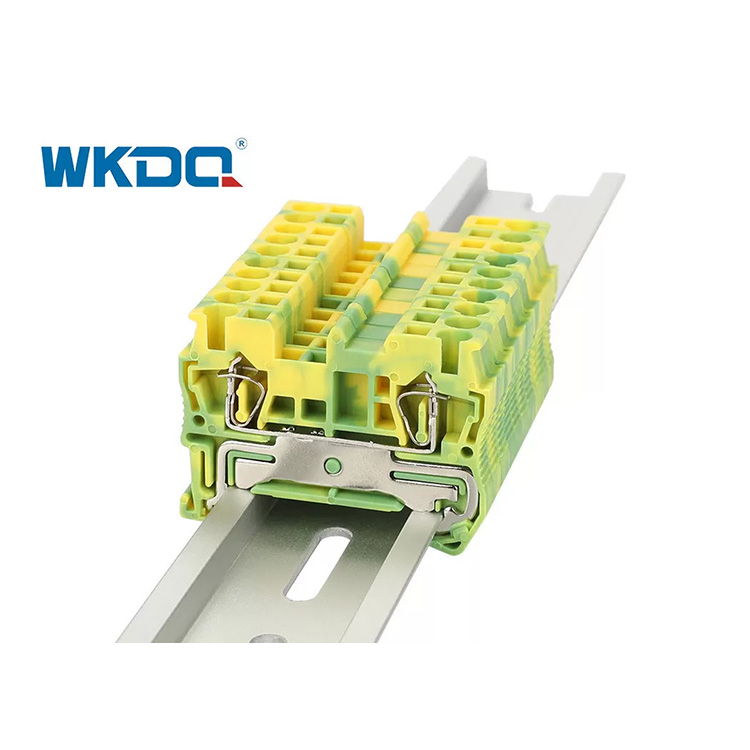

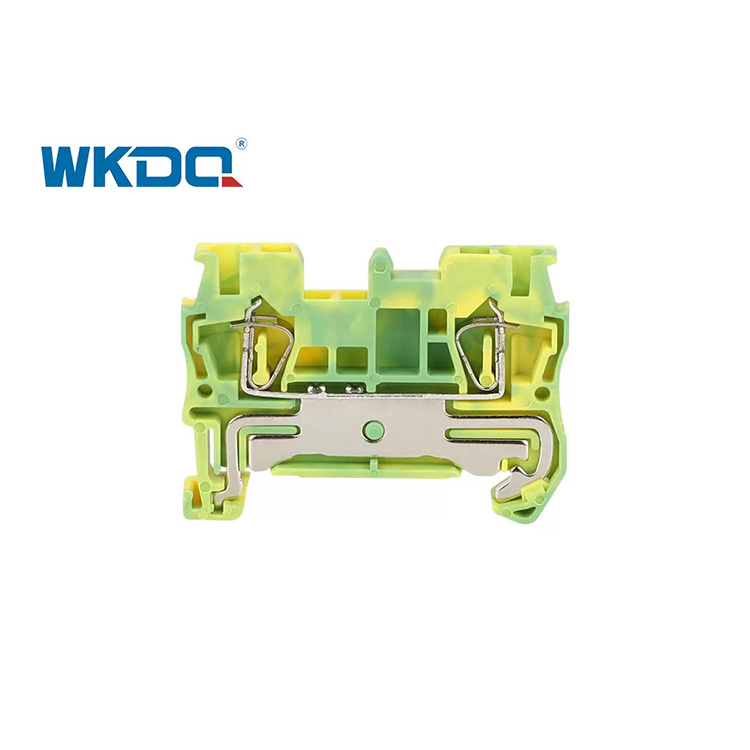

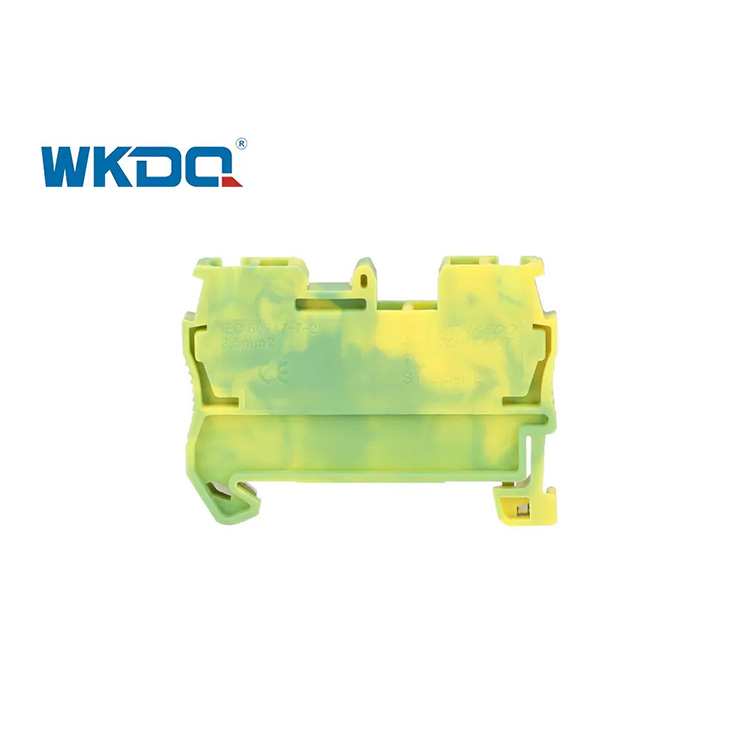

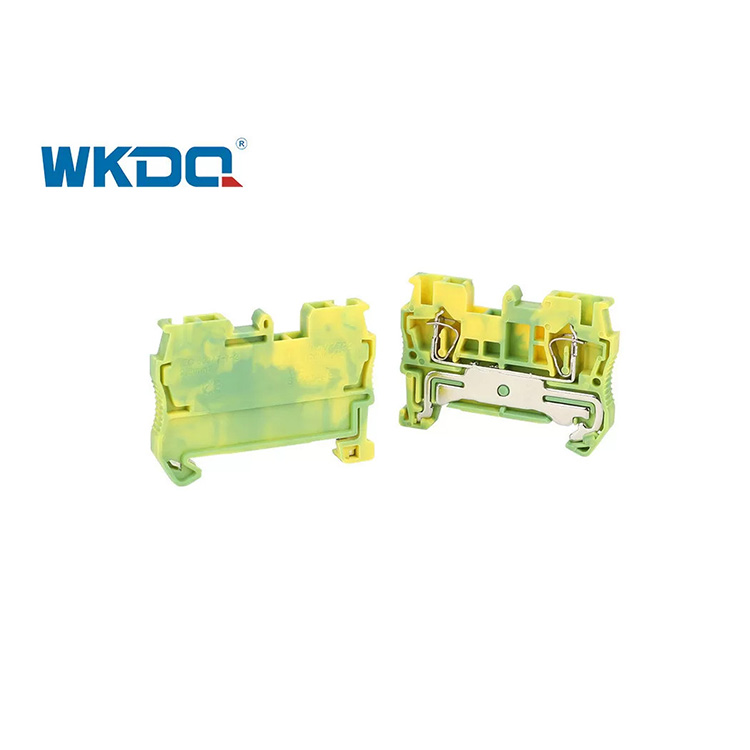

JSTTB 2.5-PE Din Rail Feed Through Spring Loaded Terminal Block Flame Retarding Nylon

Place of Origin: China
Brand Name: WONKEDQ
Certification: CE/RoHS/CQC/ISO 9001
Model Number: JSTTB 2.5-PE
Packaging Details: Box
Delivery Time: 2-7 days
Payment Terms: T/T, Paypal, Western Union, etc

Model:JSTTB 2.5-PE

Send Inquiry

Product Description

The spring-clamped grounding terminal block is made of flame-retardant PA66 and tin-plated brass. The spring crimping design ensures shock absorption and anti-loosening, and the corrosion-resistant contact points guarantee a stable and low-resistance connection. The 35mm front DIN rail quick installation structure saves space. Tool-free operation simplifies maintenance and operation. Multiple identification bits support systematic management, meeting the reliable grounding requirements of harsh scenarios such as industrial and hazardous environments.

Technical Parameters

Model Number	JSTTB 2.5-PE
Color	Yellow/Green, other color can be customized
Length/Wide/Height (mm)	68/46/6.2
Connection method	Spring clamp connection
Material	Nylon PA66
Rated Voltage/Current	500V/24A
Cross section, solid/soft Cable	0.2-4mm² / 0.2-2.5 mm²
Conductor Size	24-12 AWG
Mounting Type	NS 35/7.5
Standard	IEC 60947-7-1
LOGO	WonkeDQ, LOGO can be customized
Packing Detail	13.73g/pc, 50PCS/BOX, 1500PCS/CTN
Certification	CE/RoHS/CQC/ISO 9001
