JSTTB 2.5 Feed Through Terminal Block Din Rail Type ST Series 20-10 AWG
  • JSTTB 2.5 Feed Through Terminal Block Din Rail Type ST Series 20-10 AWGJSTTB 2.5 Feed Through Terminal Block Din Rail Type ST Series 20-10 AWG
  • JSTTB 2.5 Feed Through Terminal Block Din Rail Type ST Series 20-10 AWGJSTTB 2.5 Feed Through Terminal Block Din Rail Type ST Series 20-10 AWG
  • JSTTB 2.5 Feed Through Terminal Block Din Rail Type ST Series 20-10 AWGJSTTB 2.5 Feed Through Terminal Block Din Rail Type ST Series 20-10 AWG
  • JSTTB 2.5 Feed Through Terminal Block Din Rail Type ST Series 20-10 AWGJSTTB 2.5 Feed Through Terminal Block Din Rail Type ST Series 20-10 AWG

JSTTB 2.5 Feed Through Terminal Block Din Rail Type ST Series 20-10 AWG

Place of Origin: China
Brand Name: WONKEDQ
Certification: CE/RoHS/CQC/ISO 9001
Model Number: JSTTB 2.5
Packaging Details: Box
Delivery Time: 2-7 days
Payment Terms: T/T, Paypal, Western Union, etc

Model:JSTTB 2.5

Send Inquiry

Product Description



      Our Multi-Level Terminal Blocks feature spring-loaded, three-tier PA66/nickel-plated brass designs for high-density wiring in compact spaces. Offering flame-retardant durability, corrosion-proof contacts, gas-tight connections, and DIN Rail NS35 compatibility, they simplify potential distribution via level-specific function shafts and integrated labeling. Modular accessories (end caps, bridges) and universal mounting ensure reliable, space-saving performance for demanding electrical systems.

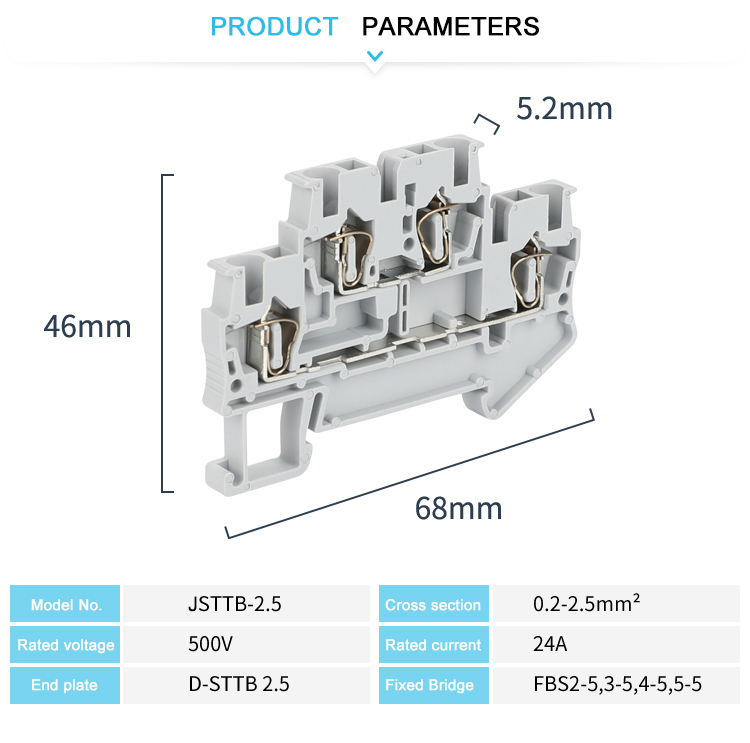

Technical Parameters

Part No. JSTTB 2.5
Color Grey,other colors are also available.
Length/Height/Wide (mm) 68/46/5.2
Connection method Spring-cage connection
Material Nylon PA66
Rated Voltage/Current 500V/24A
Cross section, solid/soft Cable 0.2-4mm² / 0.2-2.5 mm²
Conductor Size 24-12 AWG
Mounting Type NS 35 DIN Mount
Standard IEC 60947-7-1
LOGO Customized logo are supported
Packing Detail 10g/pc, 50PCS/BOX, 1500PCS/CTN
Certification CE/RoHS/CQC/ISO 9001



Hot Tags: JSTTB 2.5 Feed Through Terminal Block Din Rail Type ST Series 20-10 AWG, Manufacturers, Suppliers, China, Factory, Free Sample, In stock, Customized
