Spring Terminal Blocks

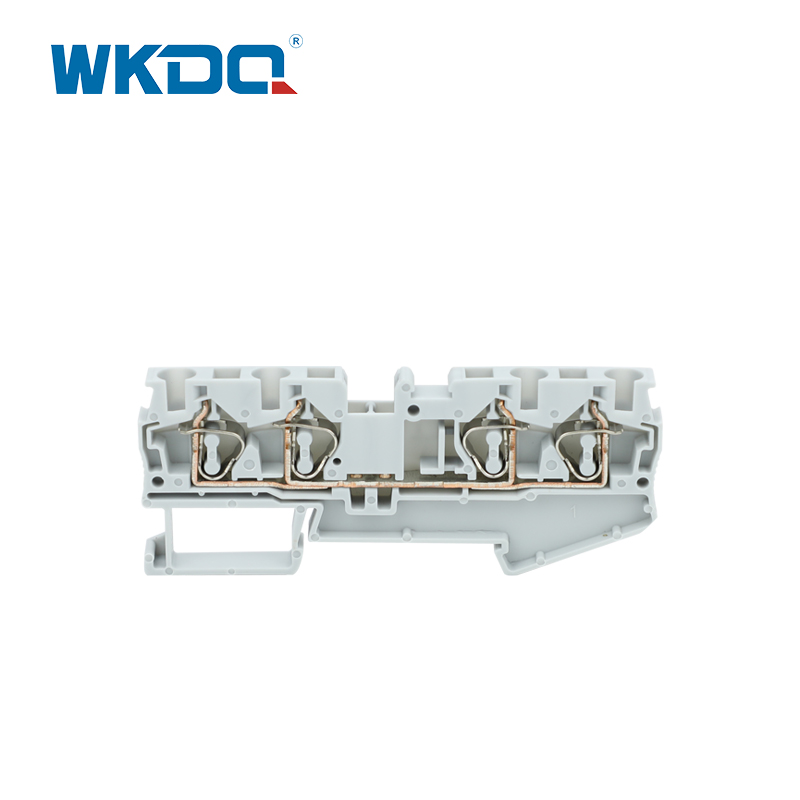

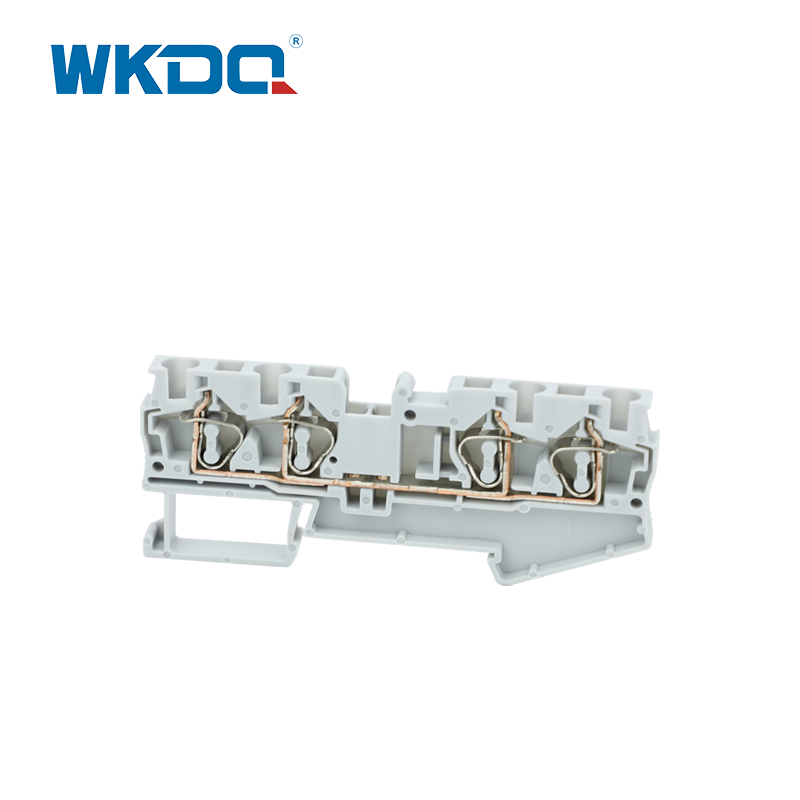

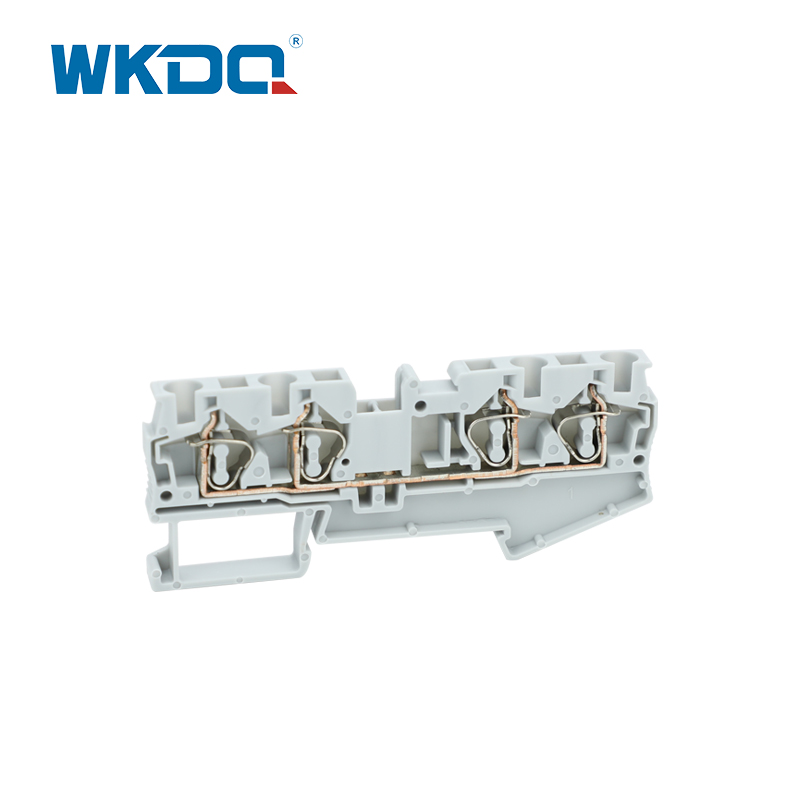

Introducing our multi-conductor terminal blocks, designed to provide flexibility and efficiency in wiring processes. These terminal blocks allow for the connection of up to four conductors individually at each terminal point, offering efficient distribution of connections and saving valuable time and space.

Key features of our multi-conductor terminal blocks include:

High-quality construction: Our terminal blocks are made from flame-retardant PA66 material with nickel-plated brass metal components, ensuring durability and safety.

Long-lasting performance: Designed for prolonged usage, our terminal blocks provide reliable performance over time, reducing the need for frequent replacements.

Corrosion-proof contact points: The terminal blocks feature corrosion-proof contact points, ensuring consistent and reliable electrical connections in various environments.

Space-saving and time-saving design: With the ability to connect multiple conductors in a single terminal block, our solution saves space and simplifies wiring processes, resulting in time and cost savings.

Ideal for electrical machine control systems: Our terminal blocks are specifically designed to meet the requirements of electrical machine control systems, providing reliable performance in demanding applications.

Guaranteed quality: We stand behind the quality of our terminal blocks, ensuring that all materials used meet high-quality standards for optimal performance and safety.

Vibration-resistant and gas-tight connections: The terminal blocks establish secure and stable connections that are resistant to vibrations, ensuring long-term stability in challenging environments.

Electric potential distribution with plug-in bridges: Our terminal blocks offer the option for easy potential distribution using plug-in bridges located in the terminal center, facilitating efficient wiring configurations.

Comprehensive range of accessories: We provide a wide range of accessories, including end covers, end stoppers, partition plates, marker strips, fixed bridges, insertion bridges, and more, offering flexibility and customization options to meet diverse wiring requirements.

Choose our multi-conductor terminal blocks to optimize space, save time, and ensure reliable and efficient connections in electrical machine control systems and other applications. We guarantee the quality, durability, and performance of our products to meet your specific wiring needs.

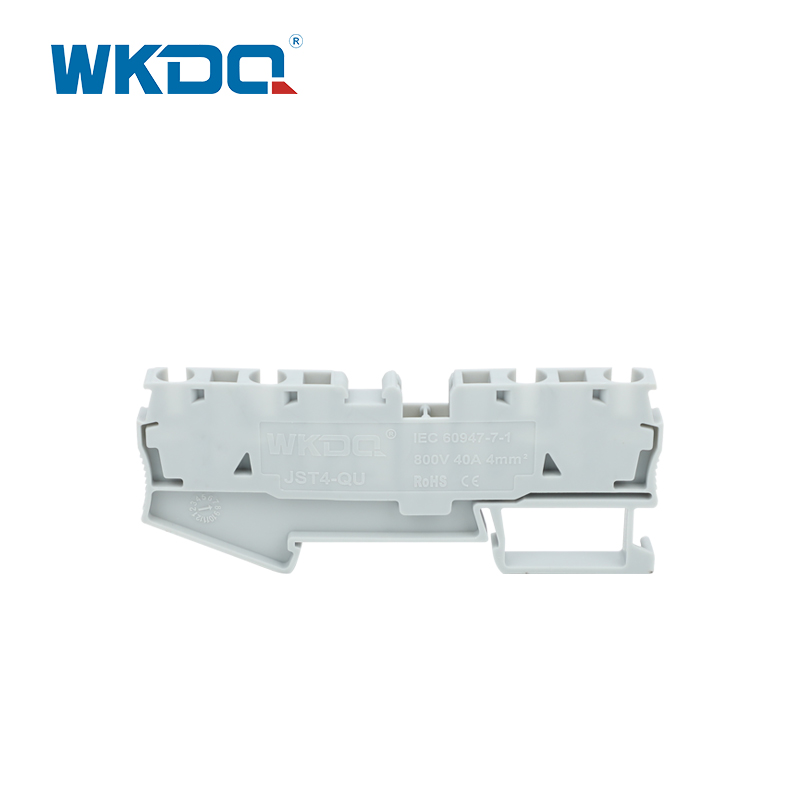

Model Number	JST 4-QUATTRO

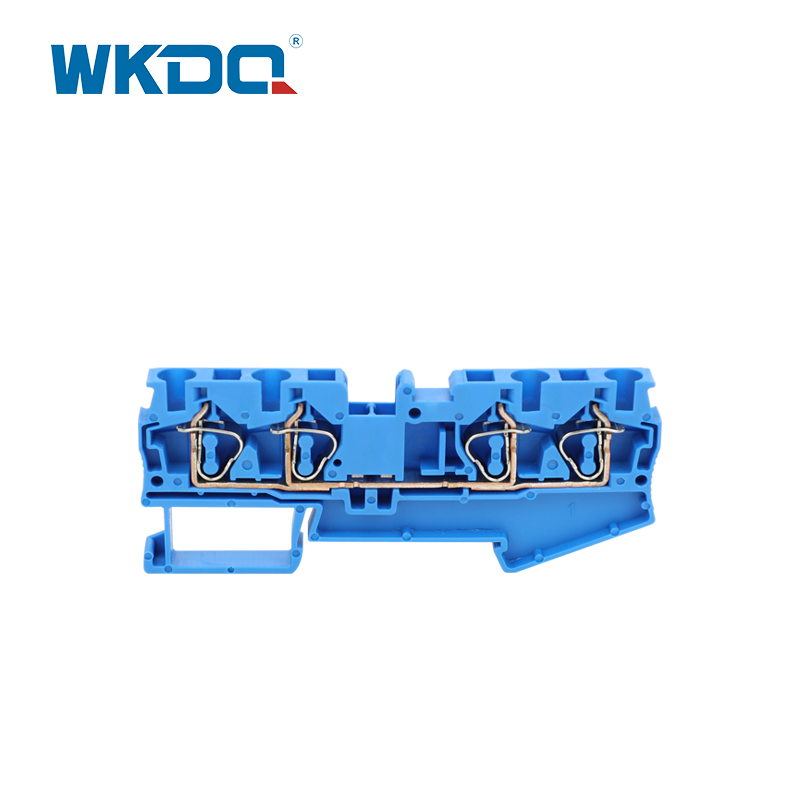

Color	Grey, Blue, other color can be customized
Length/Height/Wide (mm)	87/36.5/6.2
Connection method	Spring type connection
Material	Nylon PA66
Rated Voltage/Current	800V/40A
Cross section, solid/soft Cable	0.5-6mm² / 0.5-4 mm²
Conductor Type	20-10 AWG

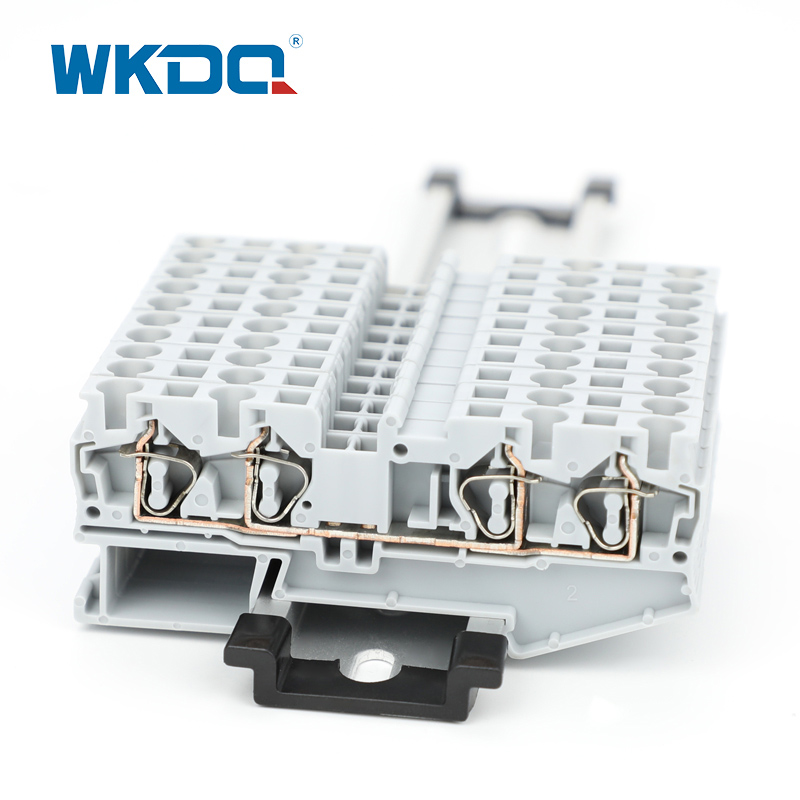

Mounted Type	NS 35/7.5
Standard	IEC 60947-7-1
LOGO	Customized logo and OEM are supported
Packing Detail	13.6g/pc, 50PCS/BOX, 2000PCS/CTN
Certification	CE/RoHS/CQC/ISO 9001
