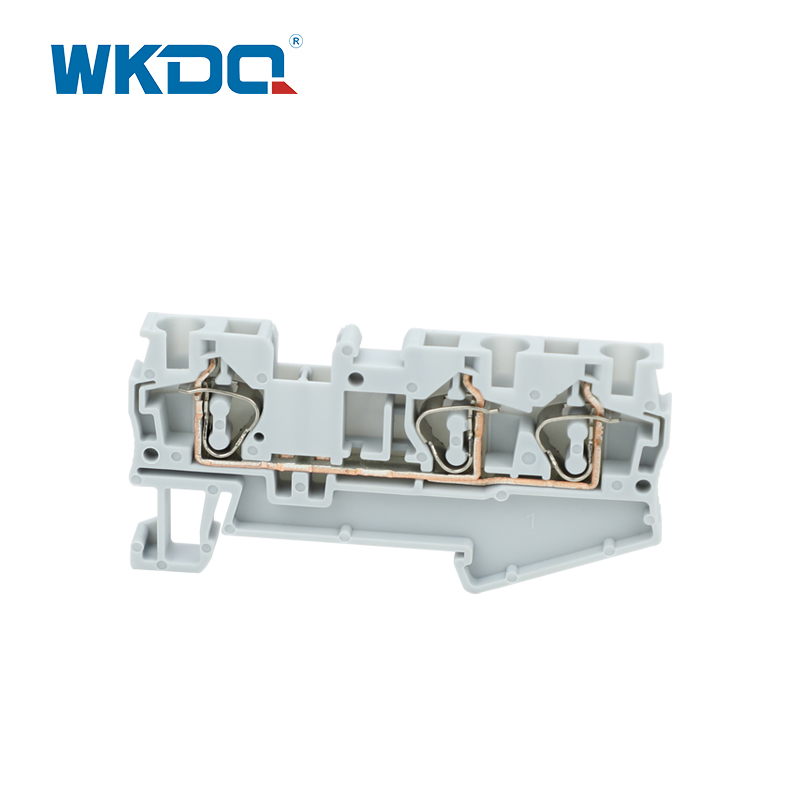

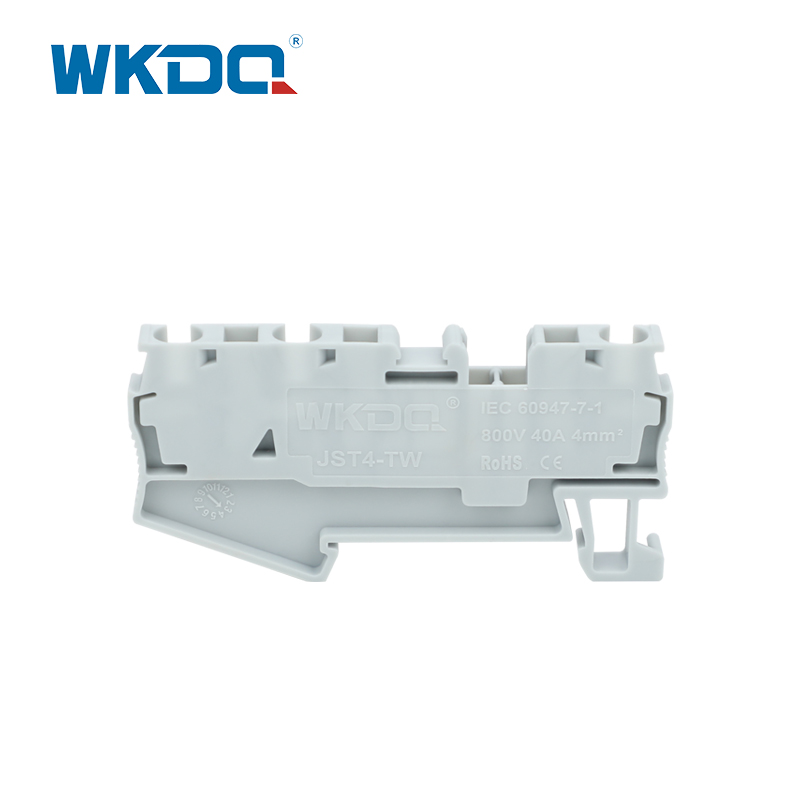

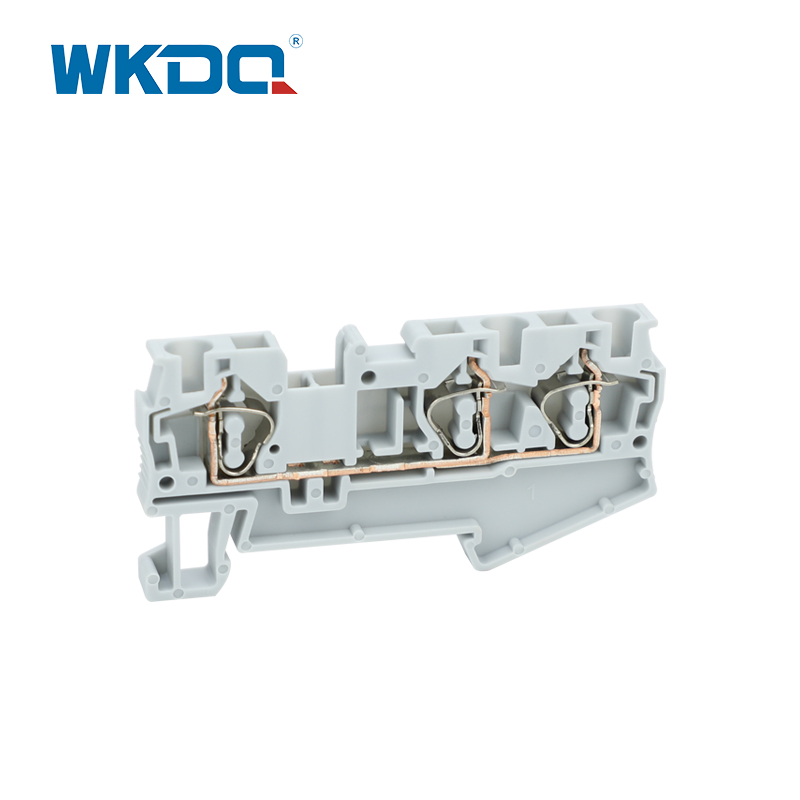

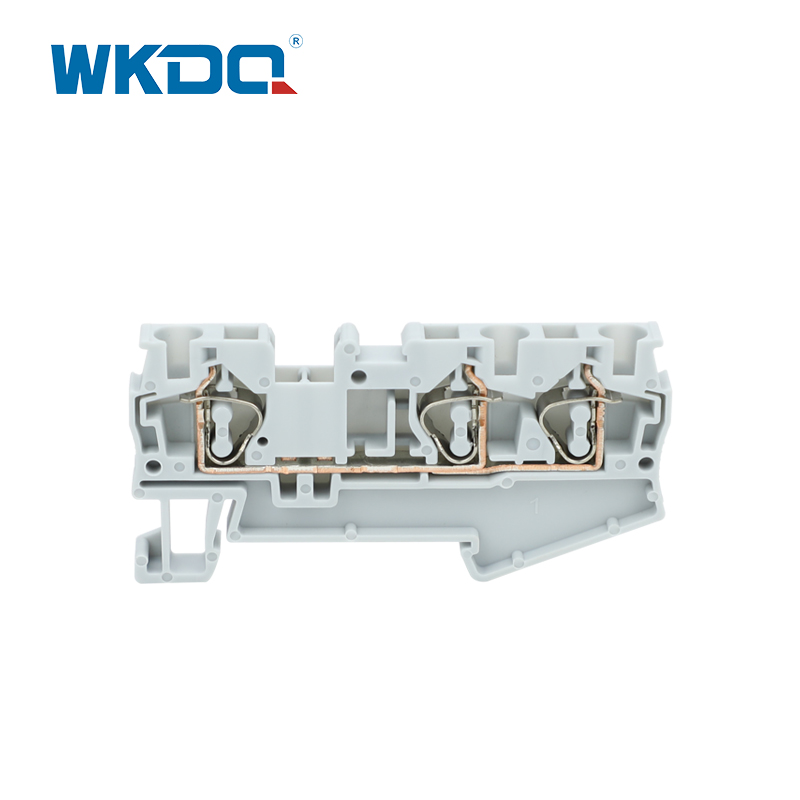

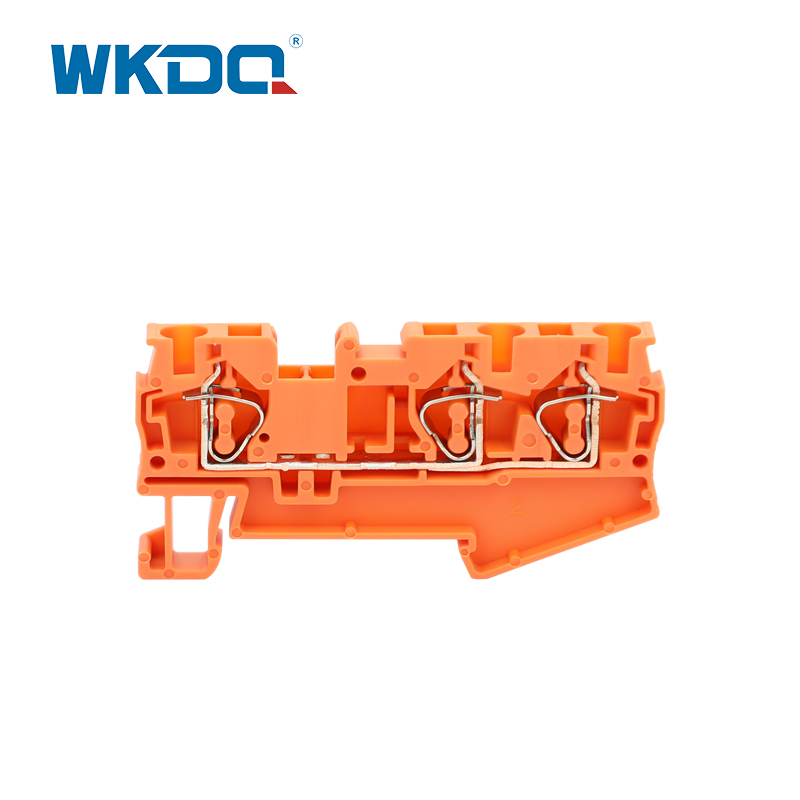

Terminal blocks with spring-loaded connection

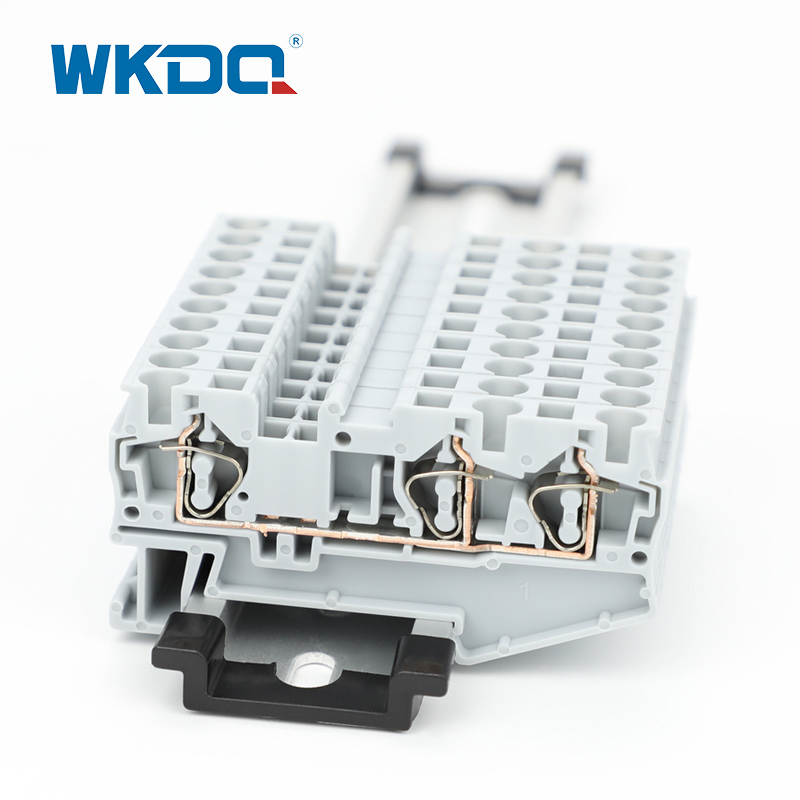

Our terminals are equipped with versatile mounting feet that allow for easy installation on NS32 or NS35 tracks, ensuring convenience and flexibility in various setups.

To enhance user experience and safety, our terminals feature a closed bolt leading hole. This design not only facilitates the use of screwdrivers but also prevents the bolt from accidentally dropping out during installation or maintenance.

Efficient electric potential distribution is achieved through two options: connecting a central adaptor to the terminal's center or inserting a side adaptor into the cone jack. This versatility ensures adaptability to different wiring configurations.

For terminals with multiple sections, we provide general auxiliaries such as end plates, segment spacers, and spacers. These accessories simplify installation, allowing for seamless integration of the terminals into your system.

The insulating shell of our terminals is crafted from high-quality imported engineering plastic, specifically polyamide Nylon 66 (PA66). This material is known for its exceptional mechanical intensity, good electrical properties, and excellent flexibility, ensuring reliable insulation and long-lasting performance.

The top ends of our terminals feature a white marking system, enabling uniform and clear signage. This marking system facilitates easy identification and organization, streamlining maintenance and troubleshooting processes.

We take pride in designing terminals that prioritize ease of installation, secure bolt connections, efficient electric potential distribution, and adaptability to various applications. The use of high-quality materials guarantees durability and reliable performance. The white marking system further enhances usability and ensures efficient organization of terminals within your setup.

Model Number	JST 4 3L
Color	Grey, Blue, other color can be customized
Dimension (mm)	L71.5/H36.5/W6.2
Connection method	Spring cage connection
Material	Anti-flaming Nylon PA66
Rated Voltage/Current	800V/41A
Cross, hard/stranded Cable	0.5-6mm² / 0.5-4 mm²
Conductor	20-10 AWG
Mounting	NS 35 DIN rail
Standard	IEC 60947-7-1
Brand	WonkeDQ, LOGO can be customized
Packing Detail	11.6g/pc, 55PCS/BOX, 2200PCS/CTN
Certification	CE/RoHS/CQC/ISO 9001
