JST 2.5-TWIN Din Rail Power Distribution Block , RoHS Compression Terminal Block Compact

Place of Origin: China
Brand Name: WONKEDQ
Certification: CE/RoHS/CQC/ISO 9001
Model Number: JST 2.5-TWIN
Packaging Details: Box
Delivery Time: 2-7 days
Payment Terms: T/T, Paypal, Western Union, etc

Model:JST 2.5-TWIN

Send Inquiry

Product Description

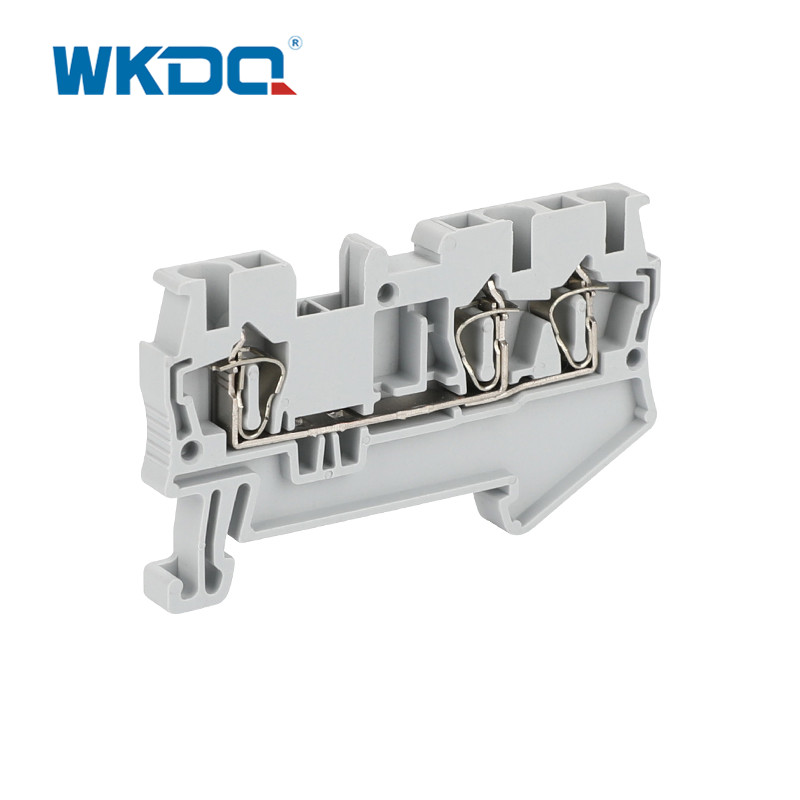

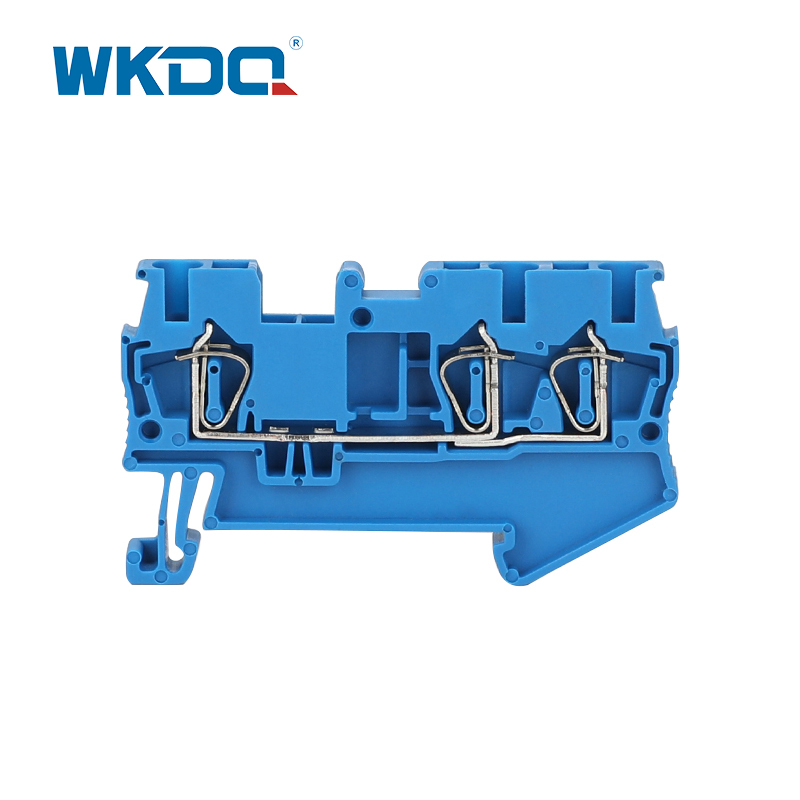

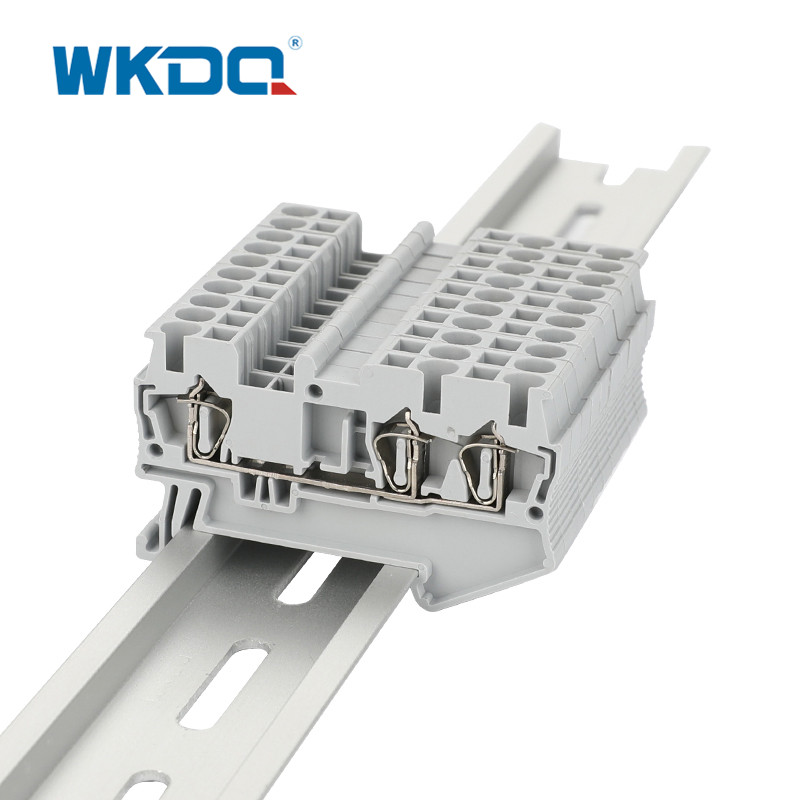

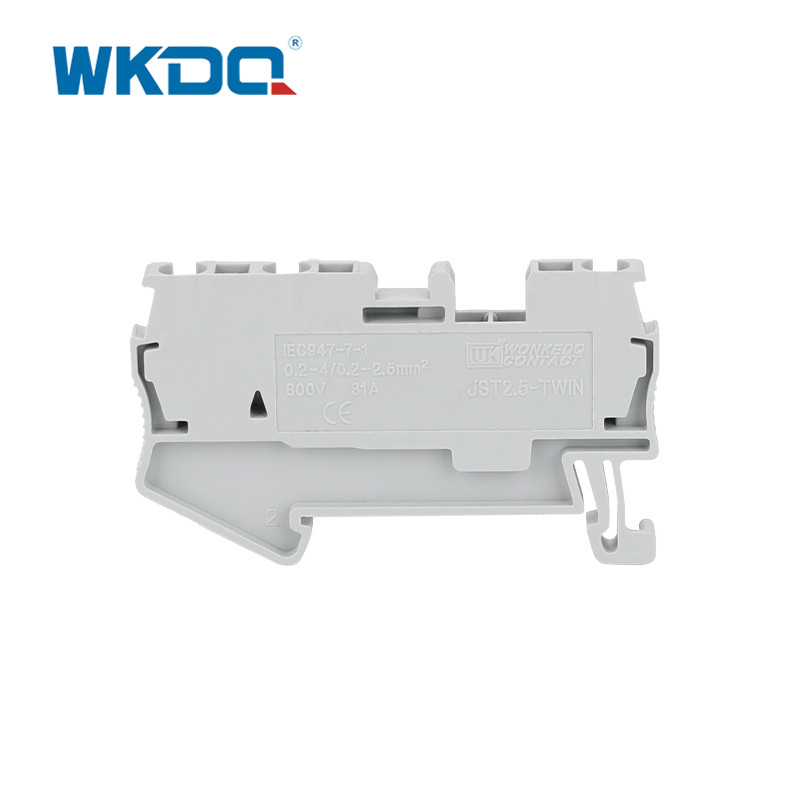

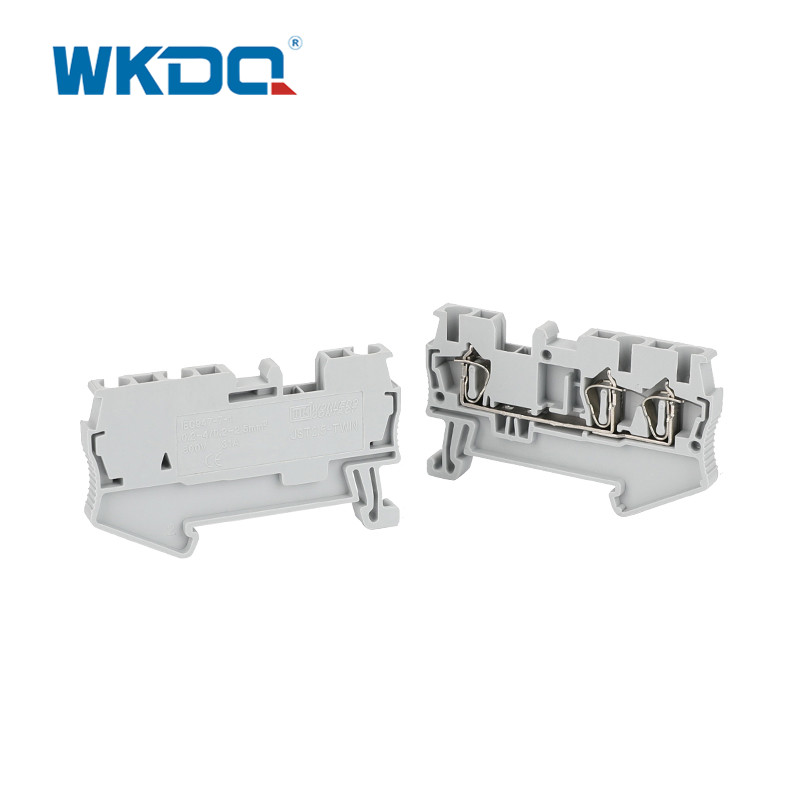

JST 2.5-TW spring cage terminal block is made of flame-retardant PA66+ tin-plated brass material, with a stainless steel spring anti-corrosion design and a DIN rail quick-installation structure to save space. Spring crimping achieves shockproof and airtight connection (<0.05Ω), the flat marking surface supports clear identification, and is suitable for harsh environments such as industry, solar energy, and railways, meeting international certification standards.

Technical Parameters

Model Number	JST 2.5-TW
Color	Grey, Blue, other color can be customized
Length/Height/Wide (mm)	61/36/5.2
Connection method	Spring-cage connection
Material	Nylon PA66
Rated Voltage/Current	800V/65A
Cross section, solid/soft Cable	0.2-4mm² / 0.2-2.5 mm²
Conductor Size	24-12 AWG
Mounting Type	NS 35/7.5
Standard	IEC 60947-7-1
LOGO	Customized logo are supported
Packing Detail	7.3g/pc, 50PCS/BOX, 1500PCS/CTN
Certification	CE/RoHS/CQC/ISO 9001
