JSAK 2.5EN Series Beige Screw Connection Terminal Block 2.5mm² Cross Section
Place of Origin: China
Brand Name: WONKEDQ，WKDQ
Certification: CE/RoHS/CQC/ISO 9001
Model Number: JSAK 2.5E
Packaging Details: Box
Delivery Time: 2-7 days
Payment Terms: T/T, Paypal, Western Union, etc
Send Inquiry
Product Description
| Model No.: | JSAK 2.5EN | Cross Section,solid Cable: | 2.5mm² |
| Mounting Type: | NS 35/7.5 | Packing Unit: | 50PCS/BOX,1000PCS/CTN |
| Net Weight: | 7.03g/pc | Product Color: | Yellow, Other Color Can Be Customized |
| High Light: | screw terminal wire connectors , electrical screw terminal block connector | ||
The JSAK series terminal blocks with clamping yoke connection make planning easer and operational safety, providing a range of different requirements.
Simple and convenience operation.
Stable and low contact resistances.
All types of accessories with high quality.
Ease of handling and a reliable electrical connection.
Made from safe and high quality material.
Reduce the installation costs and speed the wiring.
Strong contact force and excellent connection.
Versatile and vibration proof.
Made from Inflaming retarding PA 66 with Brass conductor.
Maintenance-free and vibration-proof screw connection
Low voltage drop and gas-tight contact point.

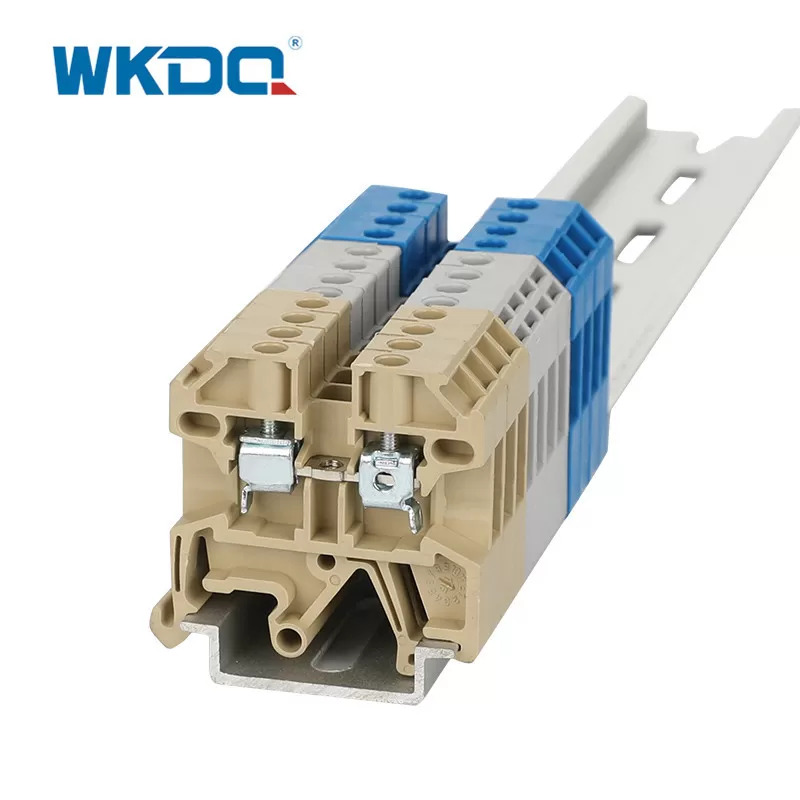

With universal foot which can be installed on Din Rail 35mm. The three different clip-on foot designs available for different types of Din Rails.
Electric potential distribution can use fixed bridges in the terminal center.
Large range of accessories: End covers, End Stops, Marker strips, fixed bridges, etc.
TECHNICAL PARAMETERS
| Part No. | JSAK 2.5EN |
| Color | Yellow, other color can be customized |
| Length/Height/Wide (mm) | 41/41/6 |
| Connection method | Screw connection |
| Material | Nylon PA66 |
| Rated Voltage/Current | 800V/24A |
| Rated Cross section | 2.5 mm² |
| Mounting Type | NS 35/7.5 |
| Standard | IEC 60947-7-1 |
| LOGO | WonkeDQ, LOGO can be customized |
| Packing Detail | 7.03g/pc, 50PCS/BOX,3000PCS/CTN |
| Certification | CE/RoHS/CQC/ISO 9001 |
