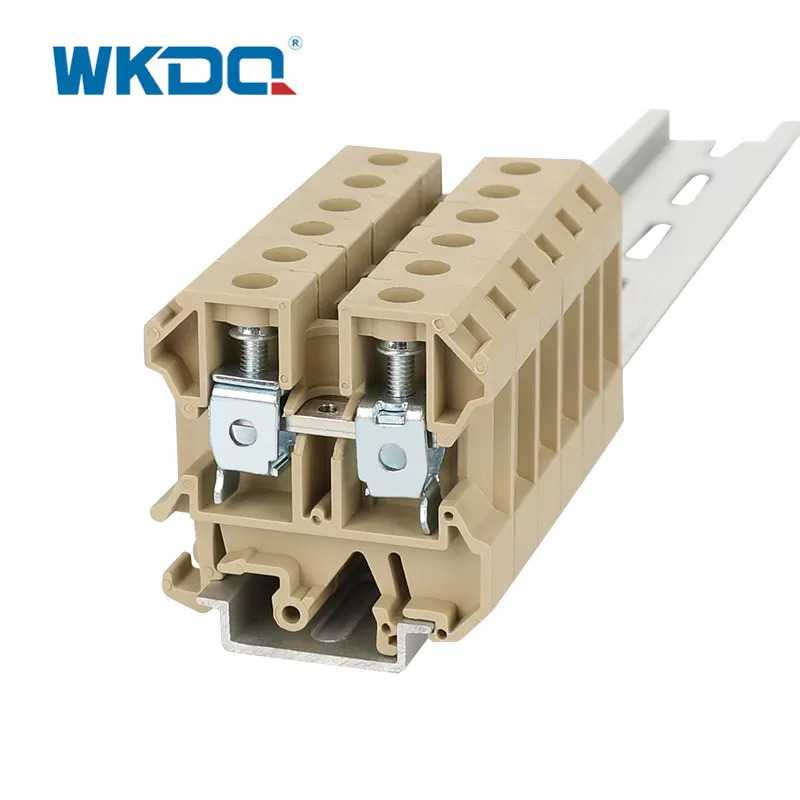

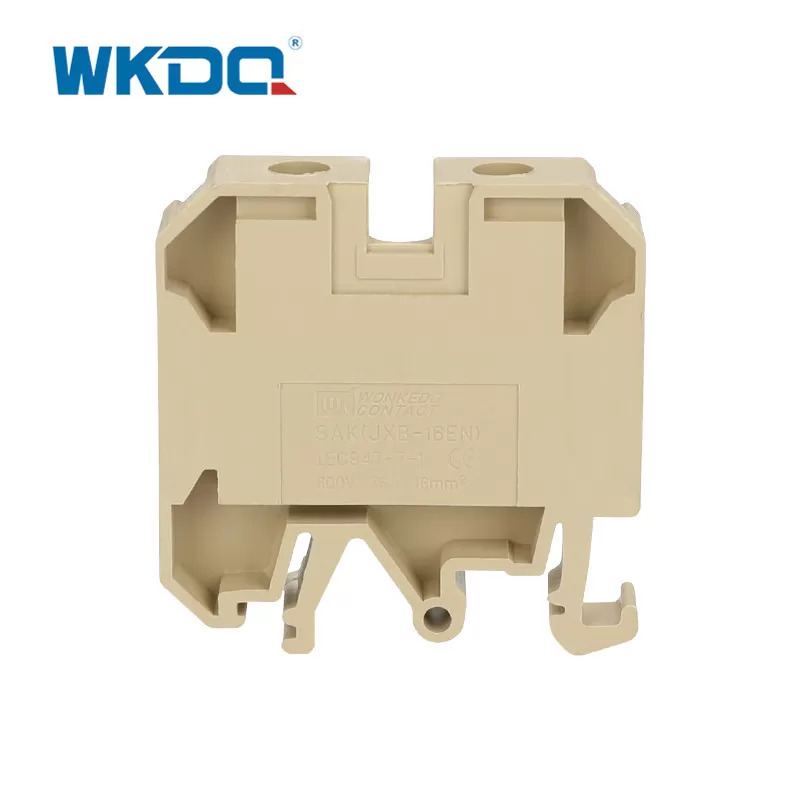

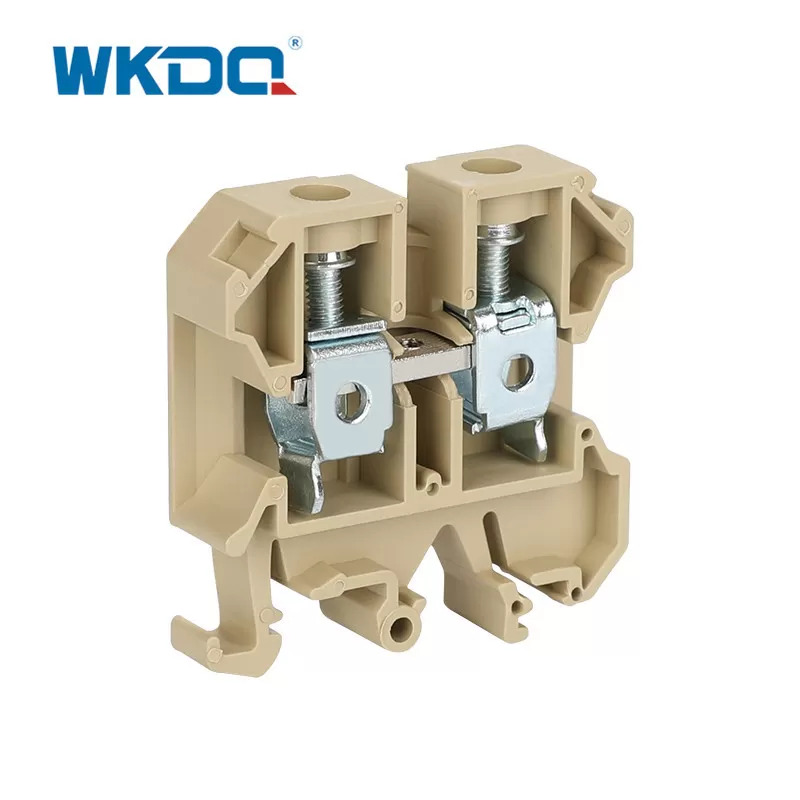

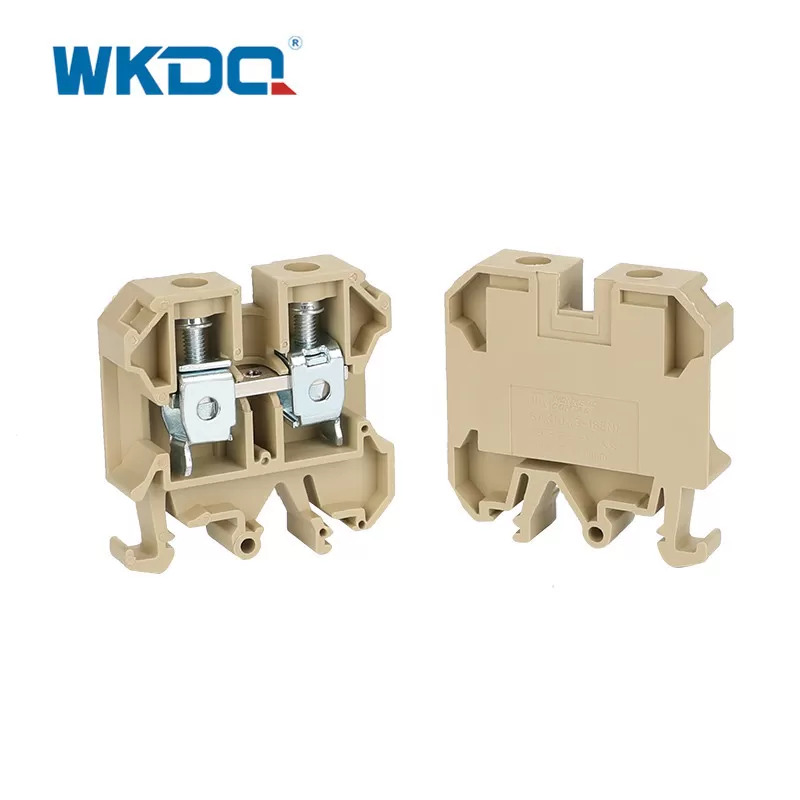

JSAK 16EN Screw Connection Terminal Block Nickel Plated Brass Conductor
Place of Origin: China
Brand Name: WONKEDQ，WKDQ
Certification: CE/RoHS/CQC/ISO 9001
Model Number: JSAK 16EN
Packaging Details: Box
Delivery Time: 2-7 days
Payment Terms: T/T, Paypal, Western Union, etc
Send Inquiry
Product Description
| Part No.: | JSAK 16EN | Wire Cross Section: | 16 Mm² |
| Mounting Type: | Rail NS 35 | Brands: | WONKEDQ, Others Can Be Ordered |
| Number Of Conductor: | 2 | Approval By: | CE/RoHS/CQC/ISO 9001 |
| High Light: | screw terminal wire connectors , screw down wire connector | ||

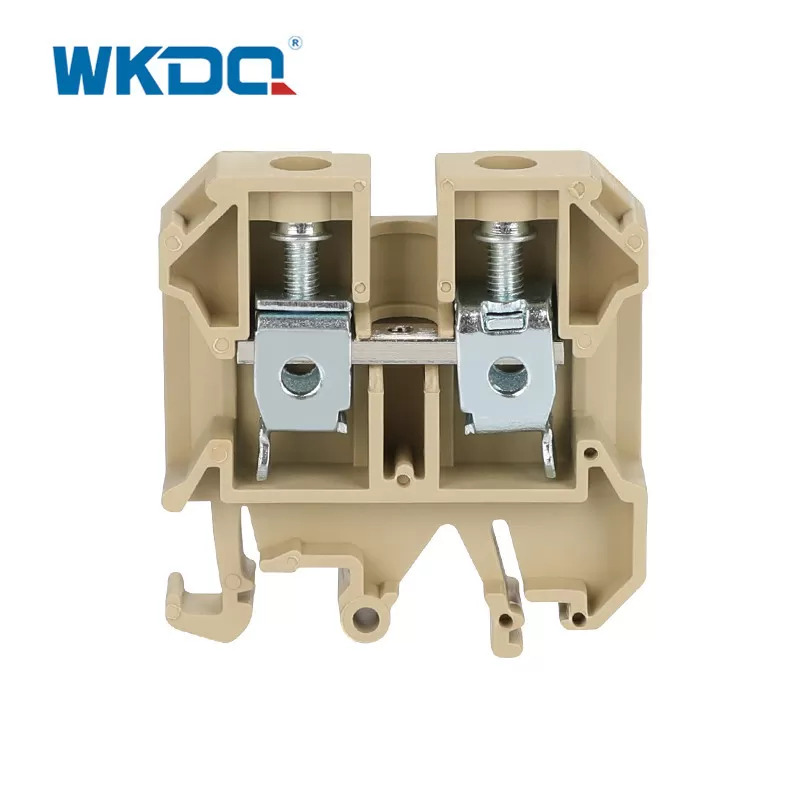

The clamp yoke system of SAK series is used for securing the wiring in terminals.These terminal blocks are maintenance-free and gas-tight clamping.
Design in standard and compact body.
Simple and convenience operation.
Stable and low contact resistances.
All types of accessories with high quality.
Ease of handling and a reliable electrical connection.
Made from safe and high quality material.
Reduce the installation costs and speed the wiring.
Strong contact force and excellent connection.
Versatile and vibration proof.
Made from engineering nylon PA66 with copper current bar.
The copper current bar for low voltages, clamping yoke and screw made of hardened steel.
The clamping type is design for safe contacting and even the smallest conductors are possible to connect.
Large range of accessories: End cover, End Stopper, Partition plate, marker trip, fixed bridge, insertion bridge, etc.
TECHNICAL PARAMETERS
| Model Number | JSAK 16EN |

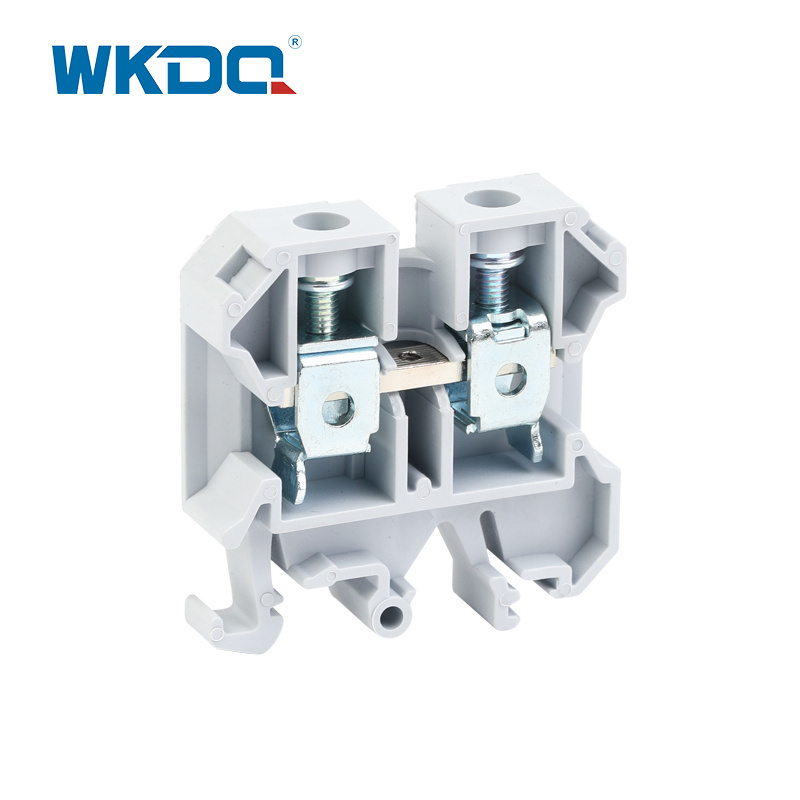

| Color | Yellow, other color can be customized |
| Length/Height/Wide (mm) | 50/51.5/12 |
| Connection method | Screw connection |
| Material | Inflaming Nylon PA66 |
| Rated Voltage/Current | 800V/76A |
| Rated Cross section | 16 mm² |
| Mounting Type | NS 35/7.5 |
| Standard | IEC 60947-7-1 |
| LOGO | Customized logo are supported |
| Packing Detail | 25.46g/pc, 50PCS/BOX, 750PCS/BOX |
| Certification | CE/RoHS/CQC/ISO 9001 |
