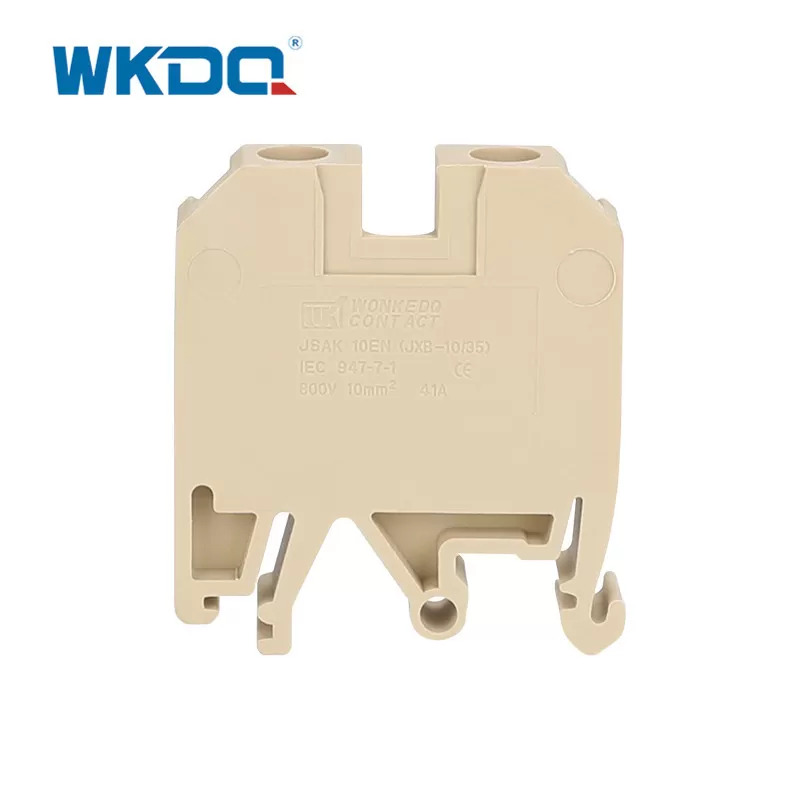

JSAK 10EN Solar Combiner Terminal Block Wire Connectors CE Certification
Place of Origin: China
Brand Name: WONKEDQ，WKDQ
Certification: CE/RoHS/CQC/ISO 9001
Model Number: JSAK 10EN
Packaging Details: Box
Delivery Time: 2-7 days
Payment Terms: T/T, Paypal, Western Union, etc
Send Inquiry
Product Description

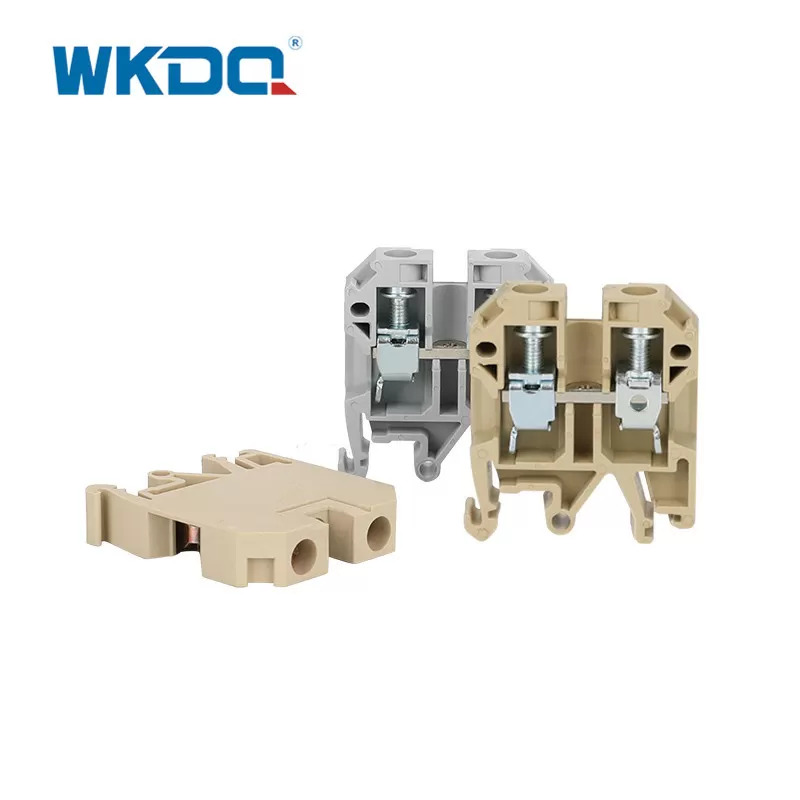

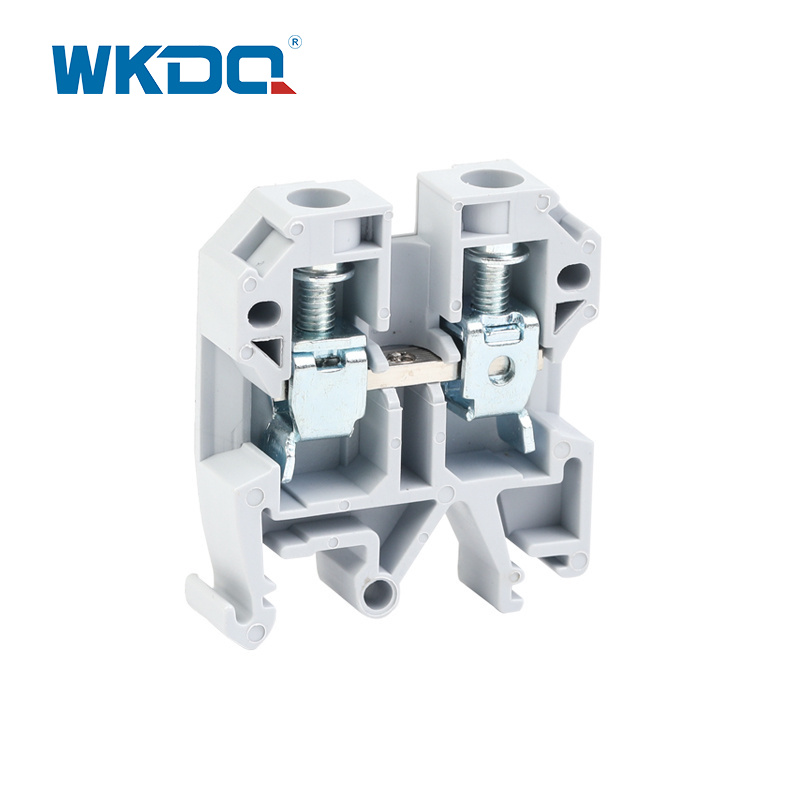

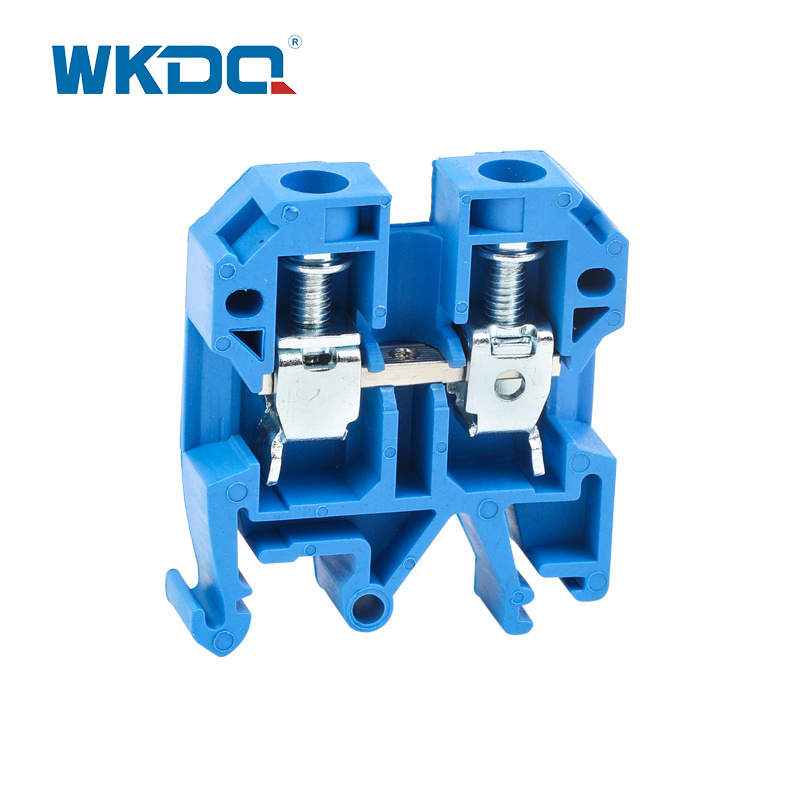

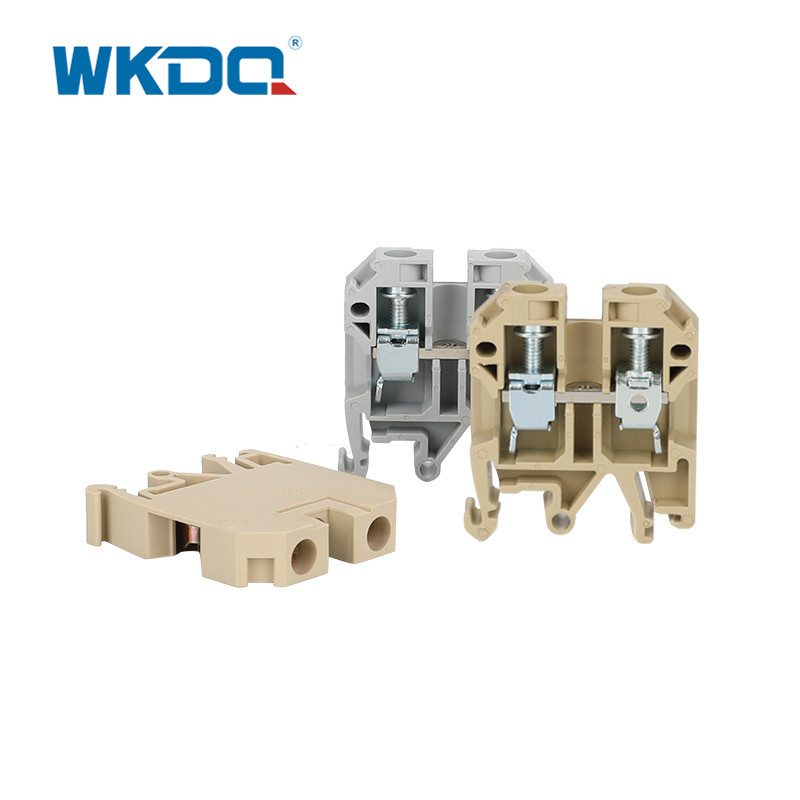

| Model Number: | JSAK 10EN | Outside Color: | Yellow, Other Color Can Be Customized |
| Material Of Housing: | Anti-flaming Nylon PA66 | Potentials: | 1 |
| Wire Cross Section: | 10 Mm² | Voltage: | 800V |
| Current: | 57A | Packing Detail: | 17.59g/pc, 50PCS/BOX, 1400PCS/CTN |
| High Light: | screw terminal wire connectors , screw down wire connector | ||

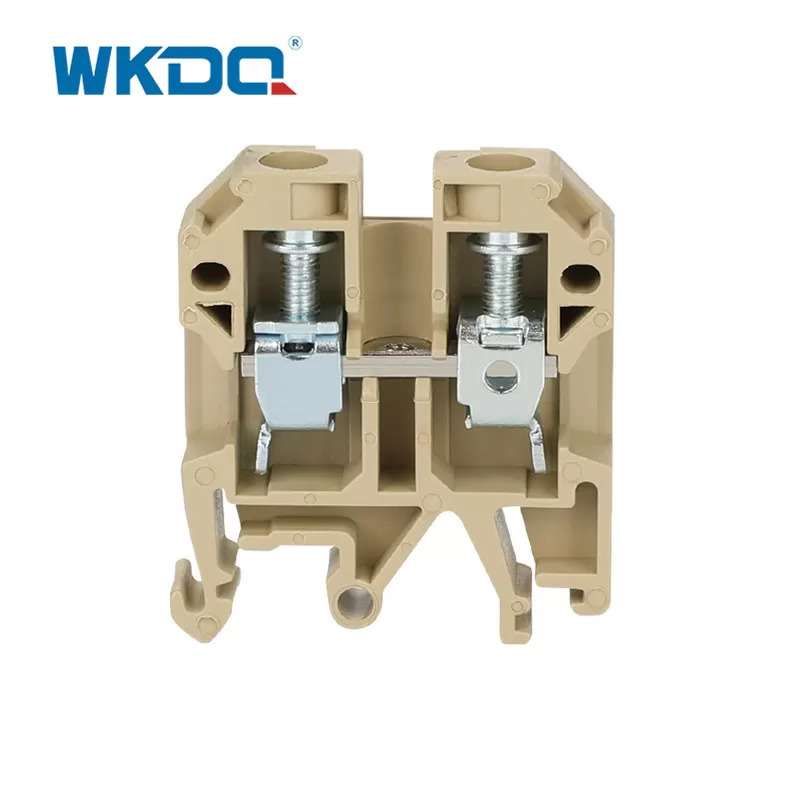

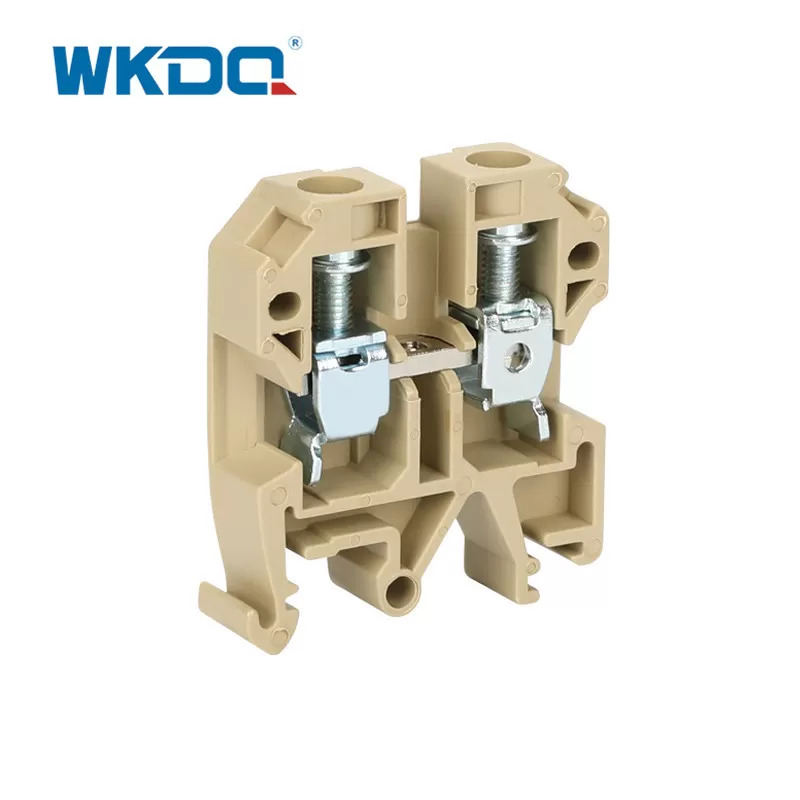

The SAK clamping yoke unit with a high strength terminal screw produces the required contact force and presses the conductor against the busbar. The construction of the clamping yoke has been designed to ensure the connection between the wire and the busbar is gas-tight.
Design in standard and compact body.
Simple and convenience operation.
Stable and low contact resistances.
All types of accessories with high quality.
Ease of handling and a reliable electrical connection.
Made from safe and high quality material.
Reduce the installation costs and speed the wiring.
Strong contact force and excellent connection.
Versatile and vibration proof.
Made from Inflaming Nylon PA 66, Tin plated brass busbar.
Maintenance-free and vibration-proof screw connecting.
Avoid low voltage drop with gas-tight contacting point.

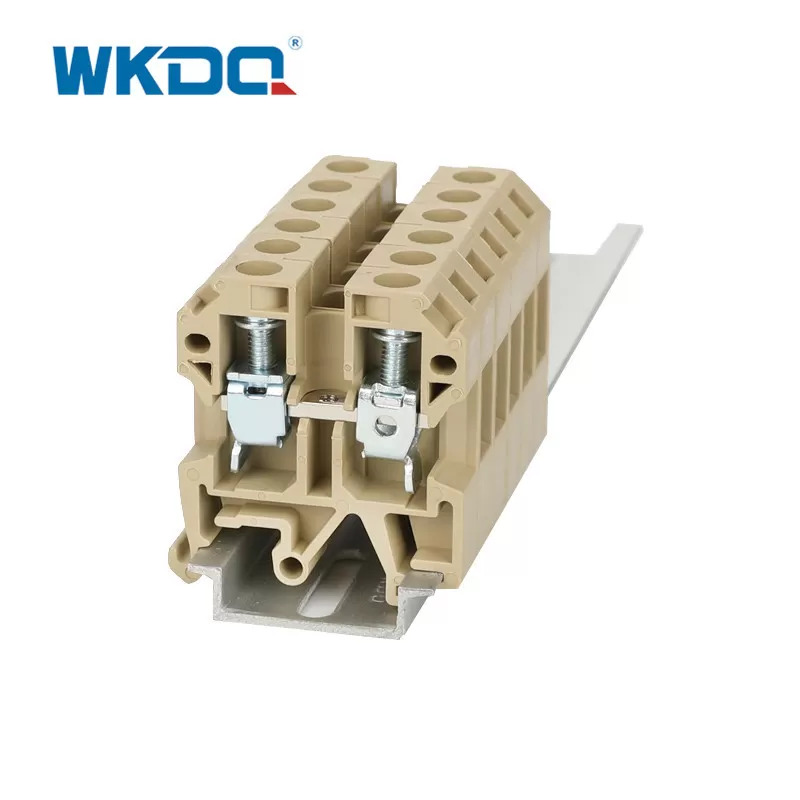

Three clip on foot can meet different terminal DIN Rails.
TECHNICAL PARAMETERS
| Part No. | JSAK 10EN |
| Color | Yellow, other color can be customized |
| Length/Height/Wide (mm) | 42/46.5/10 |
| Connection method | Screw connection |
| Material | Polyamide 66 |
| Rated Voltage/Current | 800V/57A |
| Rated Cross section | 10 mm² |
| Mounting Type | NS 35/7.5 |
| Standard | IEC 60947-7-1 |
| LOGO | WonkeDQ, LOGO can be customized |
| Packing Detail | 17.59g/pc, 50PCS/BOX, 1400PCS/CTN |
| Certification | CE/RoHS/CQC/ISO 9001 |
