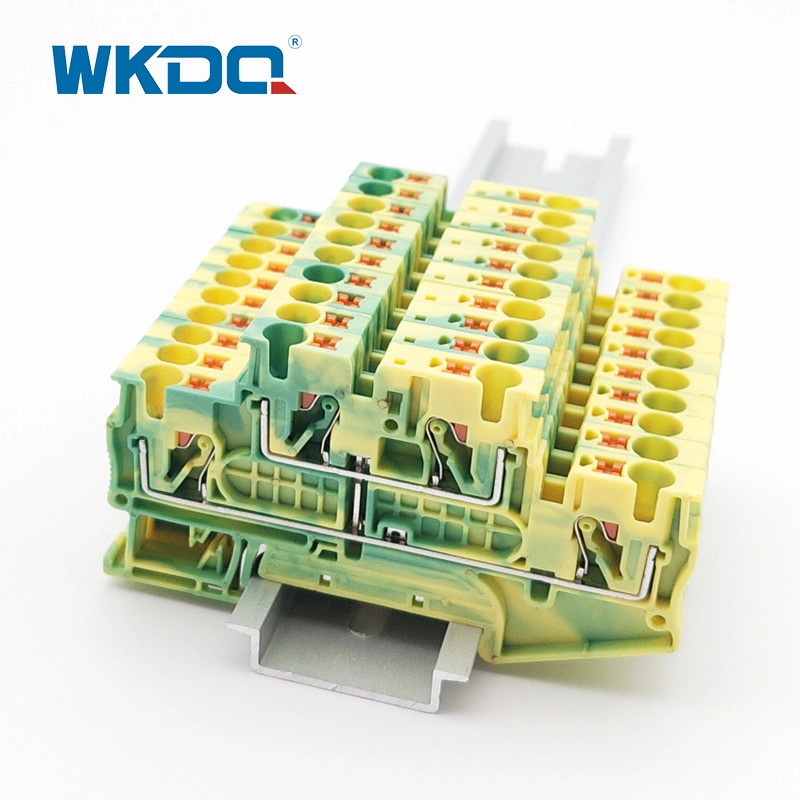

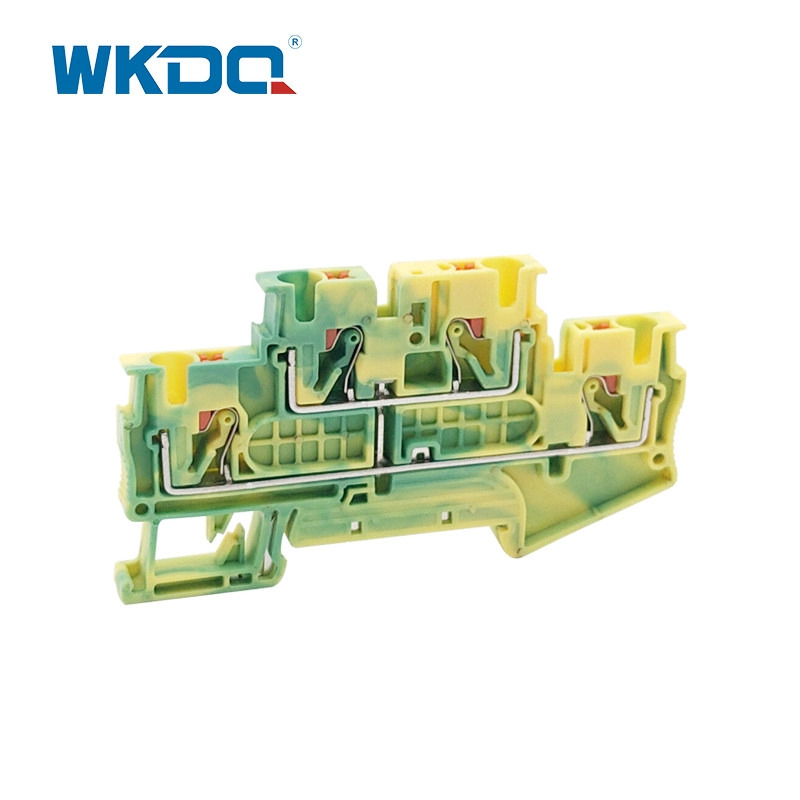

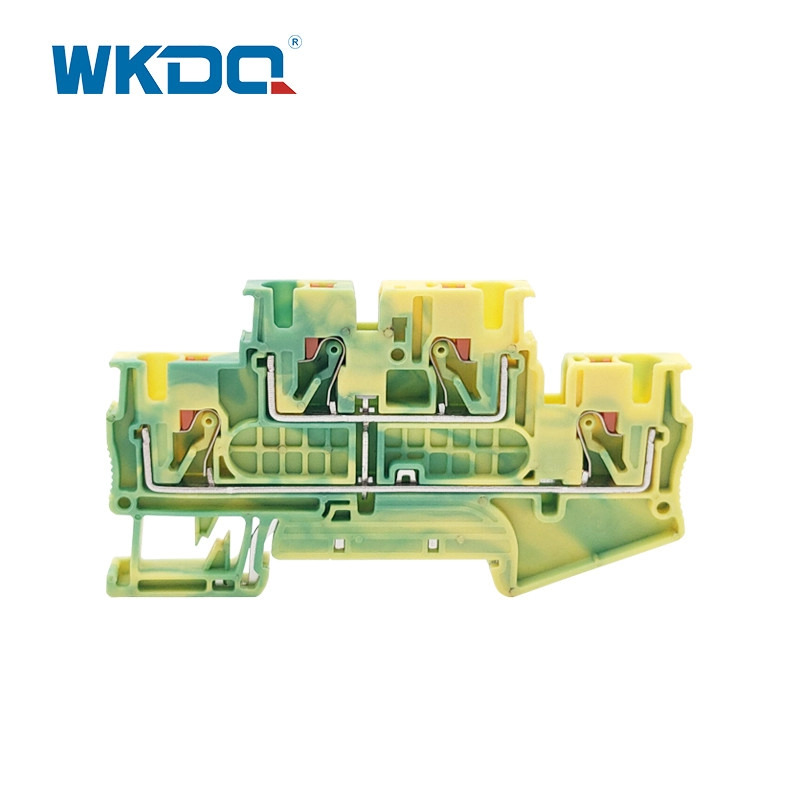

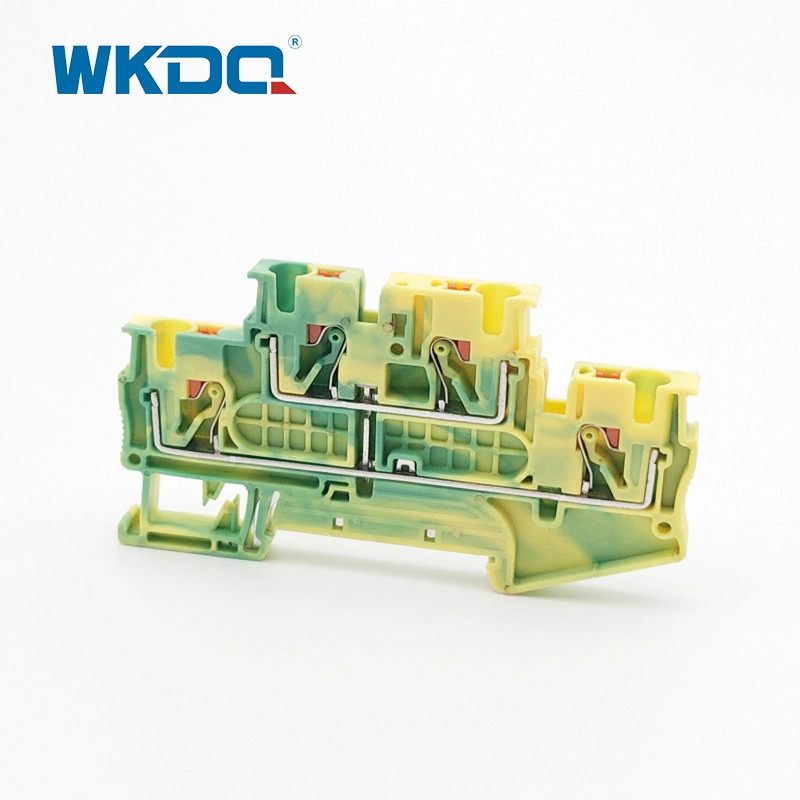

JPTTB 4 - PE 2 Layer Push In Ground Terminal Block Din Rail 4 Contacts
Place of Origin: China
Brand Name: WKDQ
Certification: CE/RoHS/CQC/ISO 9001
Model Number: JPTTB 4-PE
Packaging Details: box
Delivery Time: 2-7 days
Payment Terms: T/T, Paypal, Western Union, etc
Send Inquiry
Product Description
Advanced Push in connection technology, Vo Anti-Flaming Nylon 66 material.
Tool-Free, Time and Double Level space saving design of the push in erminal block and the direct push-in connection enable easy.
Convenient insertion, thanks to 50% lower insertion force.
Safe wiring and operation, thanks to the color-coded push button.
The push button permits easy conductor release using any type of tool, without direct contact with live parts
TECHNICAL PARAMETERS
| Model No. | JPTTB 4-PE |
| Color | Green- Yellow |
| Length/Height/Wide (mm) | 84.3/ 46 /6.2 |
| Connection method | Push-in connection |
| Material | Flame resistant Nylon PA66 V0 |
| Rated Voltage/Current | 500V/30A |
| Cross section, solid/soft Cable | 0.2-6 mm²/0.2-4 mm² |
| Conductor Size | 24-11AWG |
| Mounting Type | DIN Rail NS 35 |
| Standard | IEC 60947-7-1 |
| LOGO | WKDQ LOGO can be customized |
| Packing Detail | 50PCS/BOX |
| Certification | CE/RoHS/CQC/ISO 9001 |
