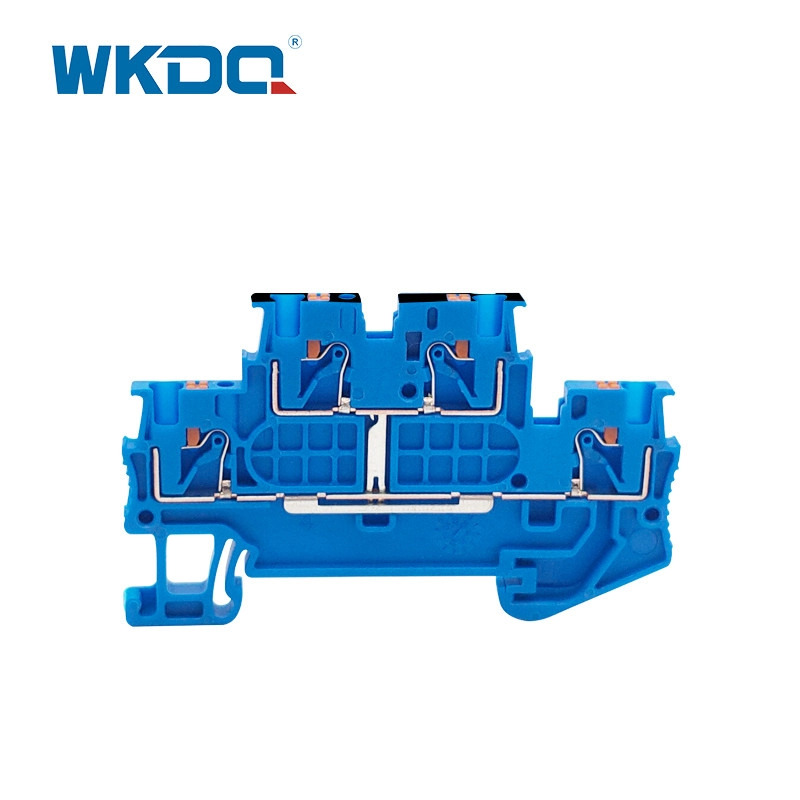

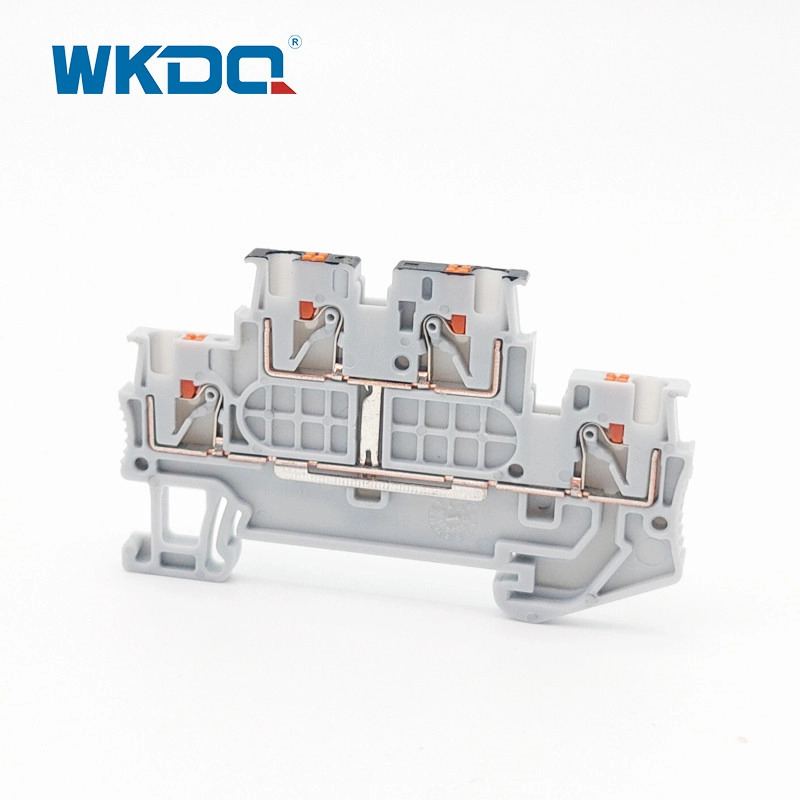

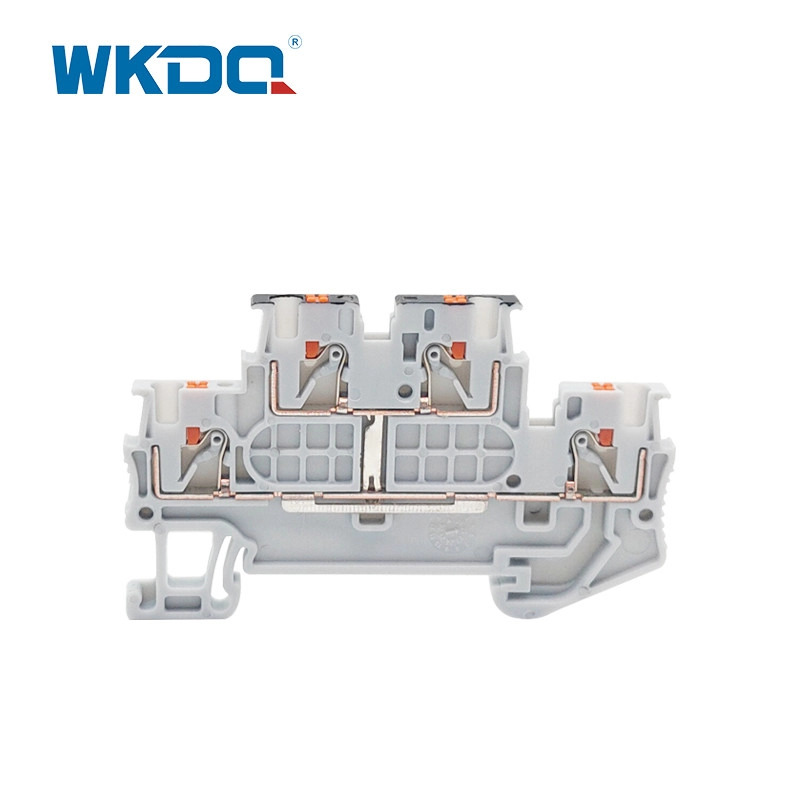

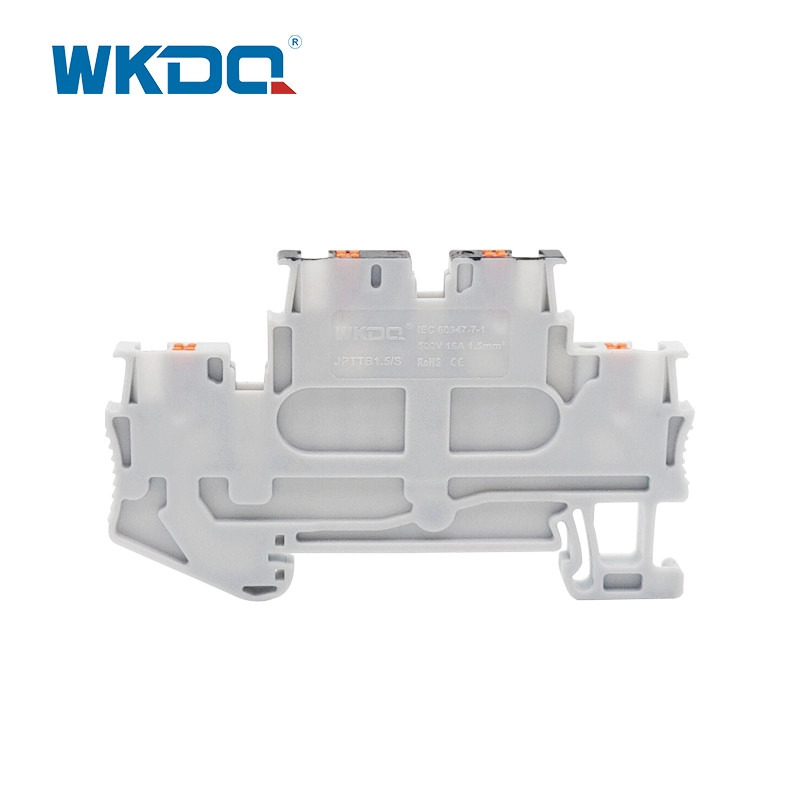

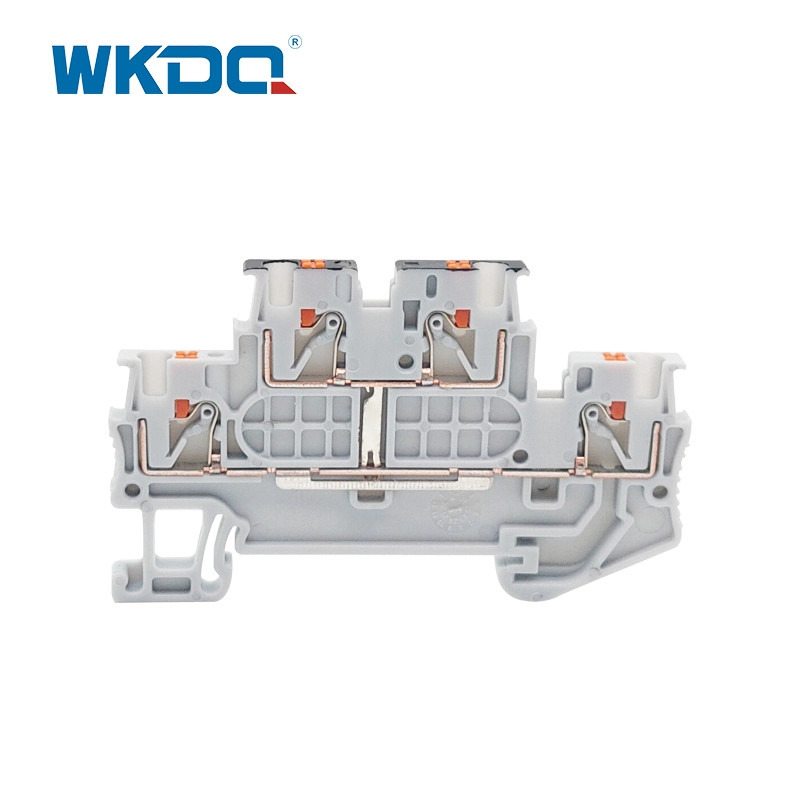

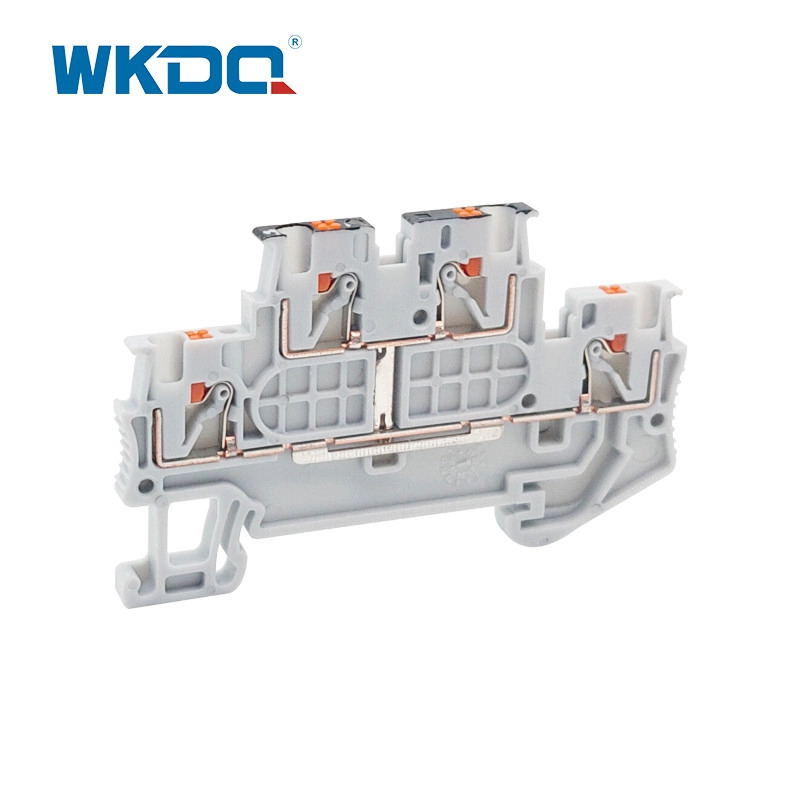

JPTTB 1.5 S-PV Push In Terminal Block Nylon PA66 V0 With Equipotential Bonder

Place of Origin: China
Brand Name: WKDQ
Certification: CE/RoHS/CQC/ISO 9001
Model Number: JPTTB 1.5/S-PV
Packaging Details: box
Delivery Time: 2-7 days
Payment Terms: T/T, Paypal, Western Union, etc

Send Inquiry

Product Description

Double Level compact design saving space. Light weight, saving transportation costs .With advanced push in technology make wiring easily and quickly, Push in directly and without tools, insert forces reduced by 50%. V0 Flame resistant PA66 material and copper conductor.

it is suitable for various applications.

l The Tool- Free design and the push in modular terminal block and the direct push-in connection enable easy

l Convenient insertion, thanks to 50% lower insertion force.

l To achieve electrical interconnection

l Flexibility: snap onto symmetrical and asymmetrical rails


TECHNICAL PARAMETERS

Model No. JPTTB 1.5/S-PV
Color Grey,Blue, other color can be customized
Length/Height/Wide (mm) 66*41*3.5
Connection method Push-in connection
Material Flame resistant Nylon PA66 V0
Rated Voltage/Current 500V/16A
Cross section, solid/soft Cable 0.14-1.5mm²
Conductor Size 26-16AWG

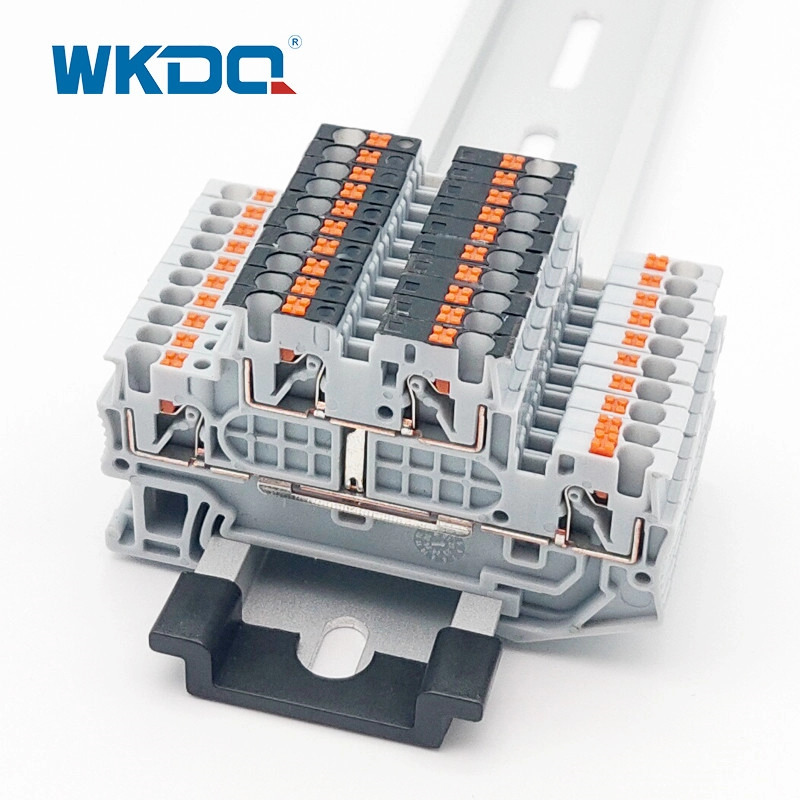

Mounting Type DIN Rail NS 35
Standard IEC 60947-7-1
LOGO WKDQ, LOGO can be customized
Packing Detail 6.4g/pc, 50PCS/BOX
Certification CE/RoHS/CQC/ISO 9001
Place of origin ZheJIang, China
