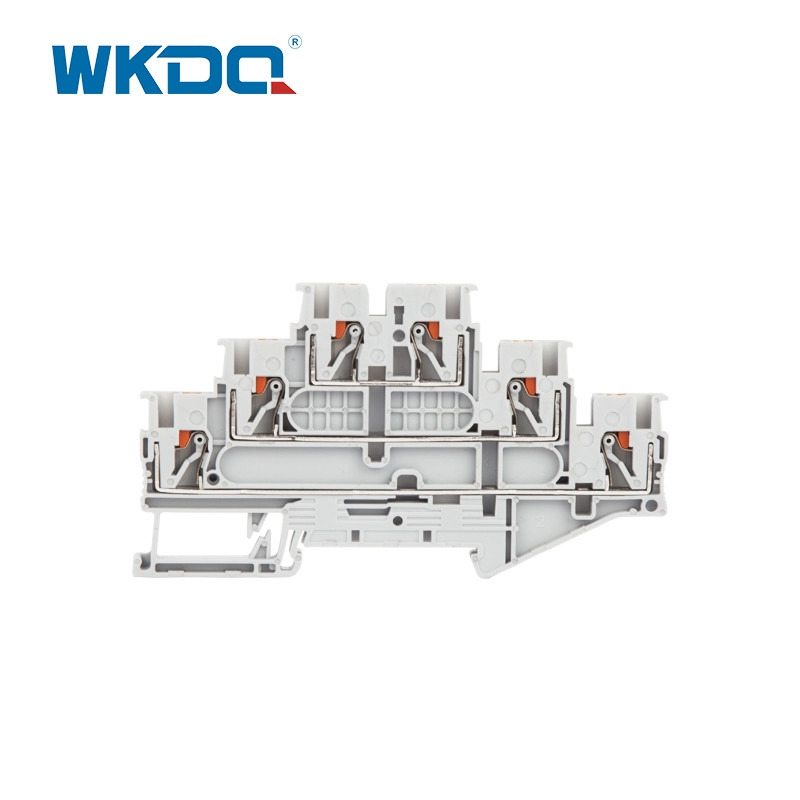

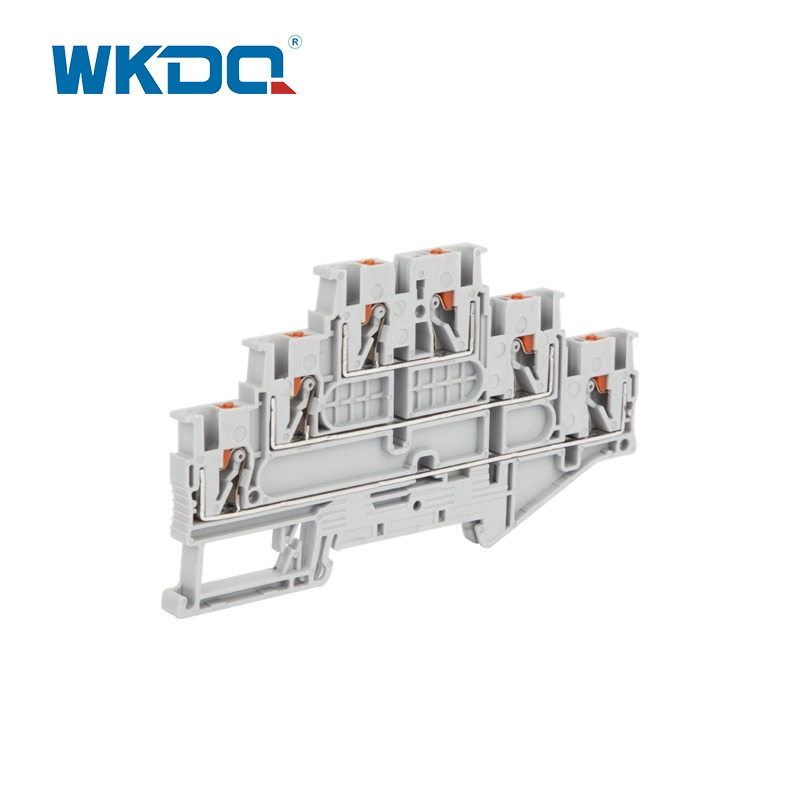

JPT 2.5 - 3L Push In Triple Level Terminal Blocks DIN Rail Flame Retardant PA66
Place of Origin: China
Brand Name: WKDQ
Certification: CE/RoHS/CQC/ISO 9001
Model Number: JPT 2.5-3L
Packaging Details: Box
Delivery Time: 2-7 days
Payment Terms: T/T, Paypal, Western Union, etc
Send Inquiry
Product Description
Advanced Push-in connection technology, insertion forces can reduced by up to 50% and tool-free wiring, enable the conductors to be inserted easily and directly.
l Made from engineering flame -retardants Nylon66 / PA66,Copper conductor.
l Push-in connection terminal blocks are characterized by easy and tool-free wiring of conductors with ferrules or solid conductors.
l The compact design and front connection enable wiring in a confined space.
l With universal foot which can be installed on Din Rail NS 35.
l Electric potential distribution can use fixed bridges in the terminal center.
l Multi-conductor terminal blocks allow you to distribute potentials at low cost while saving space.
l Complet accessories: End cover, End Bracket, Marker strip, Plug-in bridge, Marker carrier,etc.
TECHNICAL PARAMETERS
| Model Number | JPT2.5-3L |

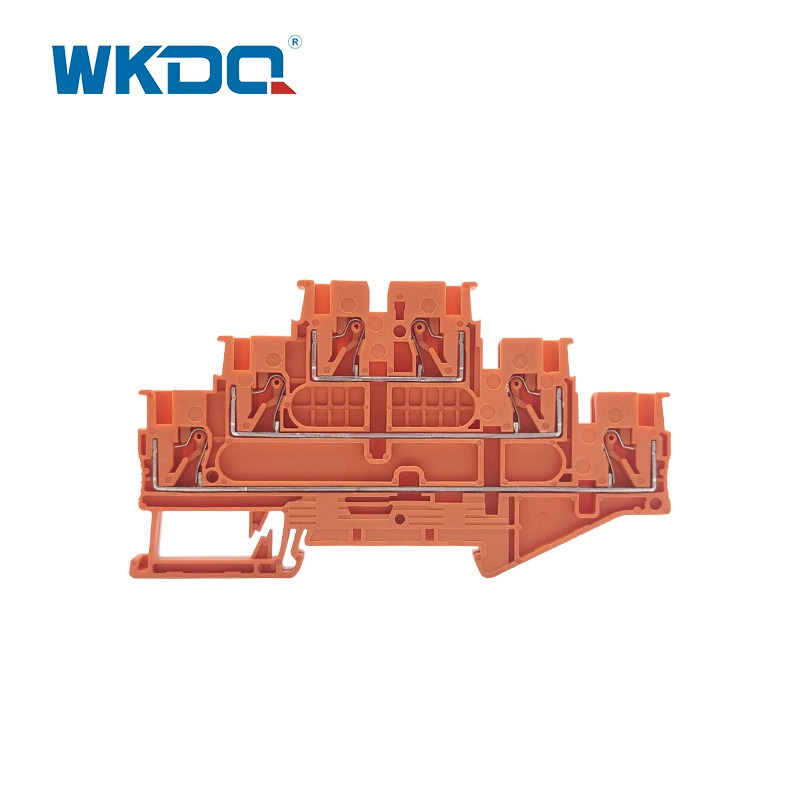

| Color | Grey,Blue, Orange other color can be customized |
| Length/Wide/Height (mm) | 103 / 56.6/ 5.2 mm |
| Connection method | Push-in connection |
| Material | Flame- resistant Nylon PA66 V0 |
| Rated Voltage/Current | 500V/24A |
| Cross section, solid/soft Cable | 0.14-4mm²/0.14-2.5mm² |
| Conductor Size | 26-12AWG |
| Mounting Type | DIN Rail NS 35 |
| Standard | IEC 60947-7-1 |
| LOGO | WKDQ, LOGO can be customized |
| Packing Detail | 10.23g/pc, 50PCS/BOX |
| Certification | CE/RoHS/CQC/ISO 9001 |
