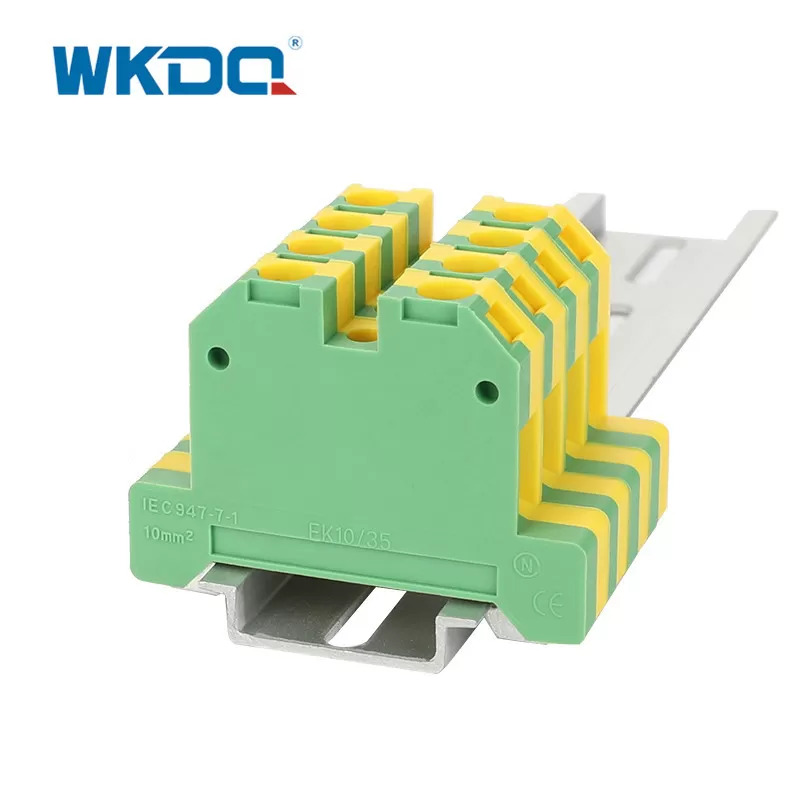

JEK 10_35 Screw Clamp Terminal Block , WPE Universal Removable Terminal Block 57A Current
Place of Origin: China
Brand Name: WONKEDQ，WKDQ
Certification: CE/RoHS/CQC/ISO 9001
Model Number: JEK 10/35
Packaging Details: Box
Delivery Time: 2-7 days
Payment Terms: T/T, Paypal, Western Union, etc
Send Inquiry
Product Description
| Type No.: | JEK 10/35 | Logos: | WONKEDQ,others Can Be Order |
| Voltage: | 800V | Current: | 57A |
| Dimension(mm): | L57.5/H41/W10 | Packing Specification: | 29.18g/pc, 40PCS/BOX, 560PCS/CTN |
| High Light: | screw terminal wire connectors , screw down wire connector | ||
DIN Rail Terminal blocks are for use in Electrical Control Panels and Industrial Automation applications.Use grounding terminal blocks instead of grounding studs and wire lugs to terminate ground wires, saving installation and wiring time.
Steady structure.
Safe and stable performance.
Shock resistance & Corrosion resistance.
Made from safe and high quality materials.
Simple and convenient installation.
Perfectly suitable for electrical machine control systems.
An excellent vibration proof protection against loosening.
Maintenance-free conductor connection and long-term reliable using.
The Ground Terminal Blocks offer protective insulation , it makes you confidence that your product is safe and secure.
Made from nylon PA 66 with copper conductor.
Clamp onto DIN rail use screwdriver by tightening the center mounting screw.
Tightly, these screw ground terminal blocks making a reliable electric PE connection between the terminals and the DIN Rail.
TECHNICAL PARAMETERS
| Model Number | JEK 10/35 |
| Color | Yellow/Green, other color can be customized |
| Length/Height /Wide (mm) | 57.5/41/10 |
| Connection method | Screw connection |
| Material | Nylon PA66 |
| Rated Voltage/Current | 800V/57A |
| Rated Cross section | 10 mm² |
| Mounting Type | NS 35/7.5 |
| Standard | IEC 60947-7-1 |
| LOGO | Customized logo are supported |
| Packing Detail | 29.18g/pc, 40PCS/BOX, 560PCS/CTN |
| Certification | CE/RoHS/CQC/ISO 9001 |
