Installation Terminal Blocks

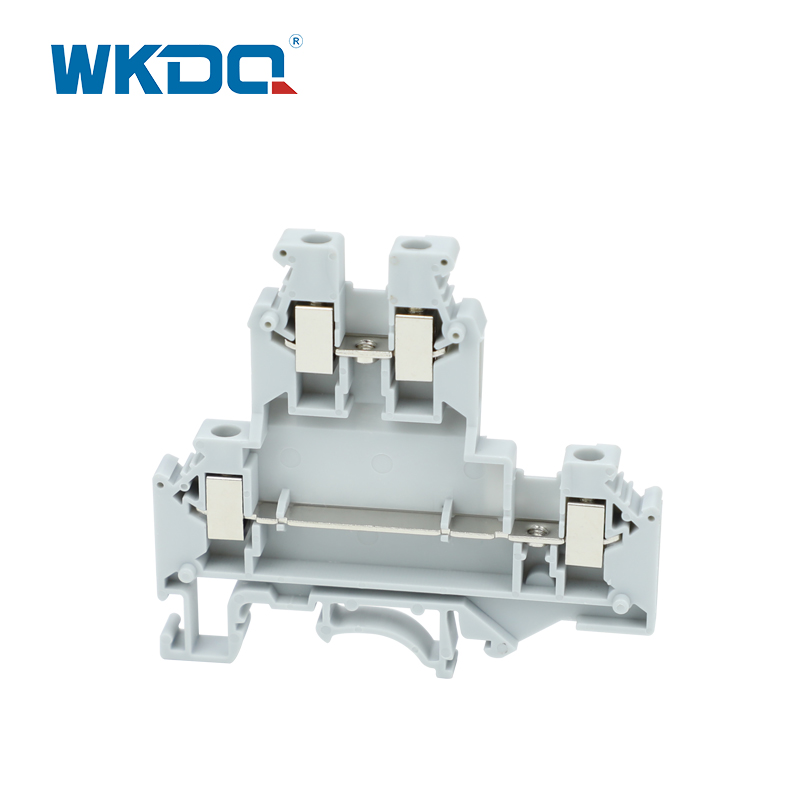

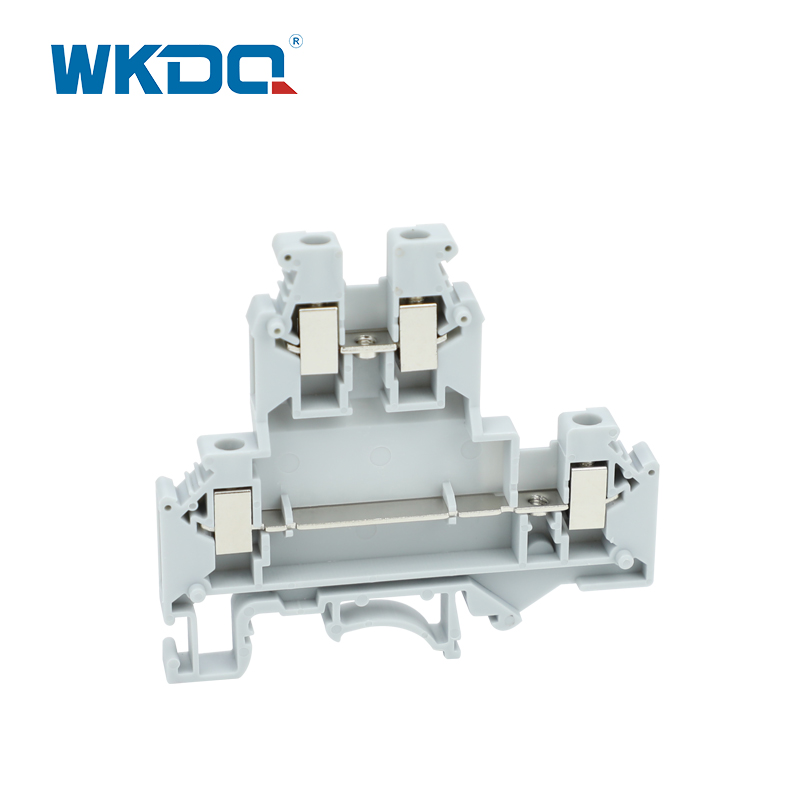

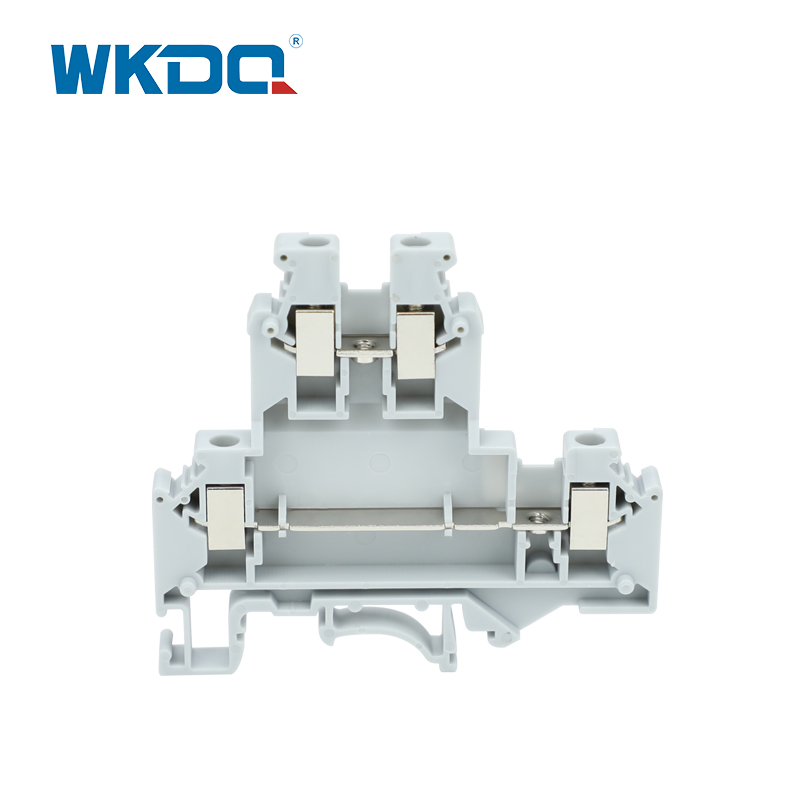

WonkeDQ's Feed-through IEC Screw-type Double layer Terminal Blocks are specifically designed to meet the needs of high-density wiring applications that require efficient distribution and collection of control signals. These terminal blocks offer a range of key features and benefits:

Double Wiring Design: The terminal blocks feature a double wiring design, enabling the efficient distribution and collection of control signals through the same blocks. This eliminates the need for separate blocks, simplifies the wiring process, and reduces complexity.

High-Density Wiring: With their compact design, these terminal blocks are well-suited for high-density wiring applications where space is limited. They allow for efficient utilization of available space, making them ideal for applications with multiple control signals.

Nine Color Options: Available in nine different colors, these terminal blocks facilitate easy visual identification and organization of wiring connections. This feature minimizes errors and simplifies maintenance and troubleshooting tasks.

Easy Operation: WonkeDQ's terminal blocks are designed for easy operation, ensuring smooth and efficient installation and wiring processes. This user-friendly design saves time and enhances convenience during setup.

Safe and Stable Performance: The terminal blocks provide safe and stable performance, ensuring reliable electrical connections. Corrosion-proof contact points enhance their longevity, minimizing the risk of signal loss or disruption.

Space-Saving and Time-Saving Design: These terminal blocks feature a space-saving design that optimizes the utilization of available space in electrical installations. This not only saves valuable space but also reduces installation costs and accelerates the wiring process.

High-Quality Accessories: WonkeDQ offers a comprehensive range of high-quality accessories that complement the terminal blocks. These accessories enhance functionality, customization, and organization, ensuring a reliable and efficient electrical connection.

Suitable for Electrical Machine Control Systems: The terminal blocks are perfectly suited for electrical machine control systems, meeting the requirements of various control applications. They are designed to withstand the demanding conditions typically found in machine control environments.

Engineering Flame Resistance Nylon PA66: Made from engineering flame-resistant nylon PA66, these terminal blocks offer durability and safety. The corrosion-proof metal parts further enhance their reliability and longevity.

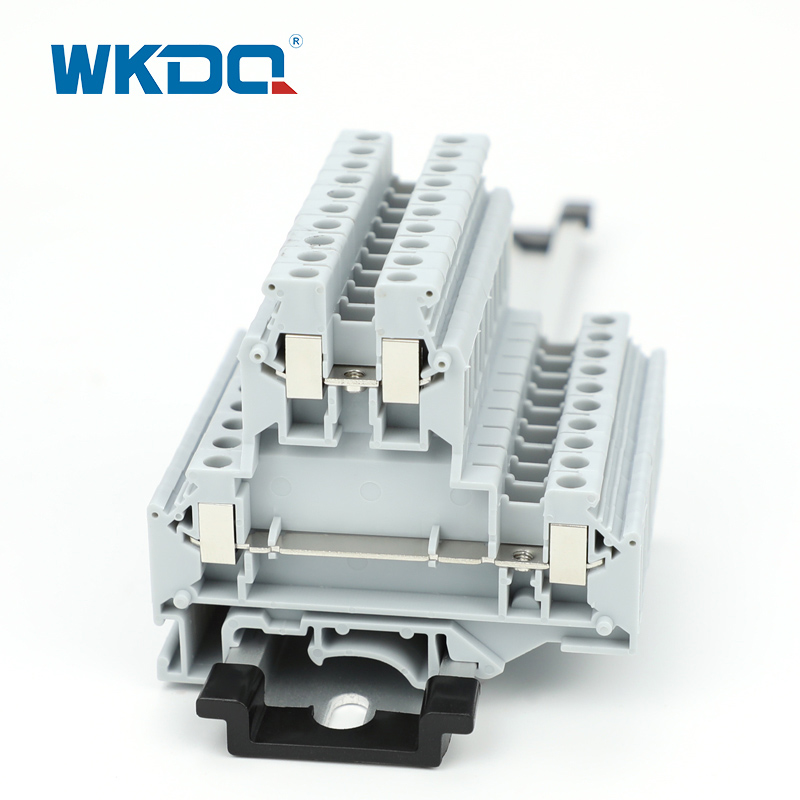

Compatible with DIN Rail NS 35mm: Designed with a combination foot, these terminal blocks are compatible with Din Rail NS 35mm mounting. This ensures easy installation and maintenance by utilizing standard mounting systems.

Flexible Electric Distribution: The terminal blocks support the use of fixed bridges for building electric distribution in the terminal center or insertion bridges in the clamping space. This flexibility allows for the creation of custom wiring configurations to suit specific application requirements.

In summary, WonkeDQ's Feed-through IEC Screw-type Double layer Terminal Blocks provide a reliable and efficient solution for the distribution and collection of control signals in high-density wiring applications. With features such as easy operation, safe and stable performance, space-saving design, high-quality accessories, compatibility with electrical machine control systems, and flexible electric distribution options, these terminal blocks offer a versatile and organized wiring solution.

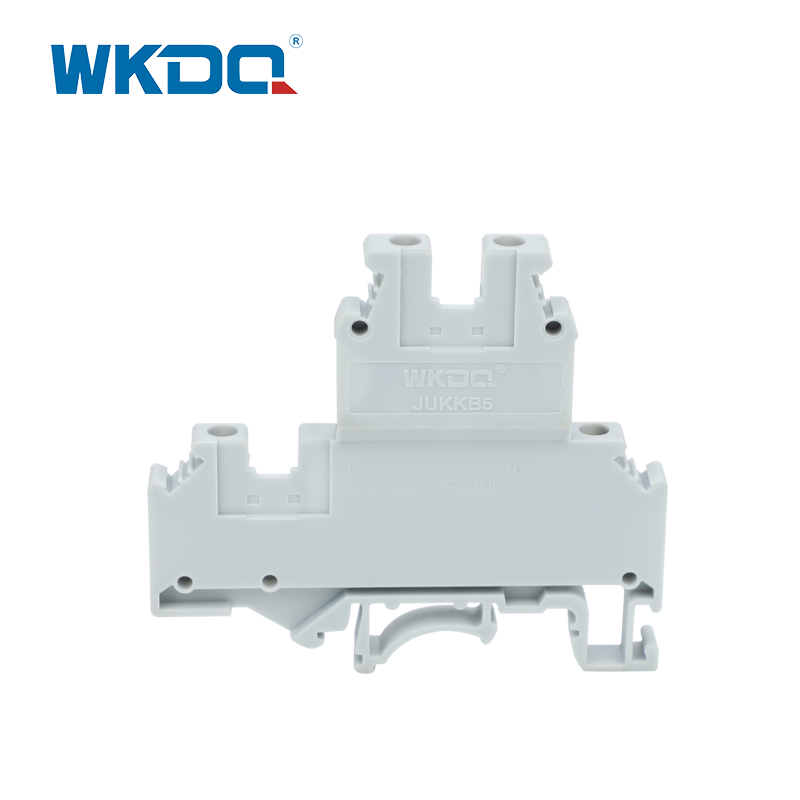

Part No.	JUKK 5, Multi Levels Terminal Blocks
Color	Grey, Blue, other color can be customized
Length/Height/Wide (mm)	57/62/6.2
Connection method	Screw connection
Material	Nylon PA66
Rated Voltage/Current	500V/32A
Cross section, solid/soft Cable	0.2-4 mm² / 0.2-4 mm²
Conductor Size	24-12 AWG
Mounting Type	NS 35/7.5
Standard	IEC 60947-7-1
LOGO	Customized logo are supported
Packing Detail	13.66g/pc, 50PCS/BOX, 2000PCS/CTN
Certification	CE/RoHS/CQC/ISO 9001
