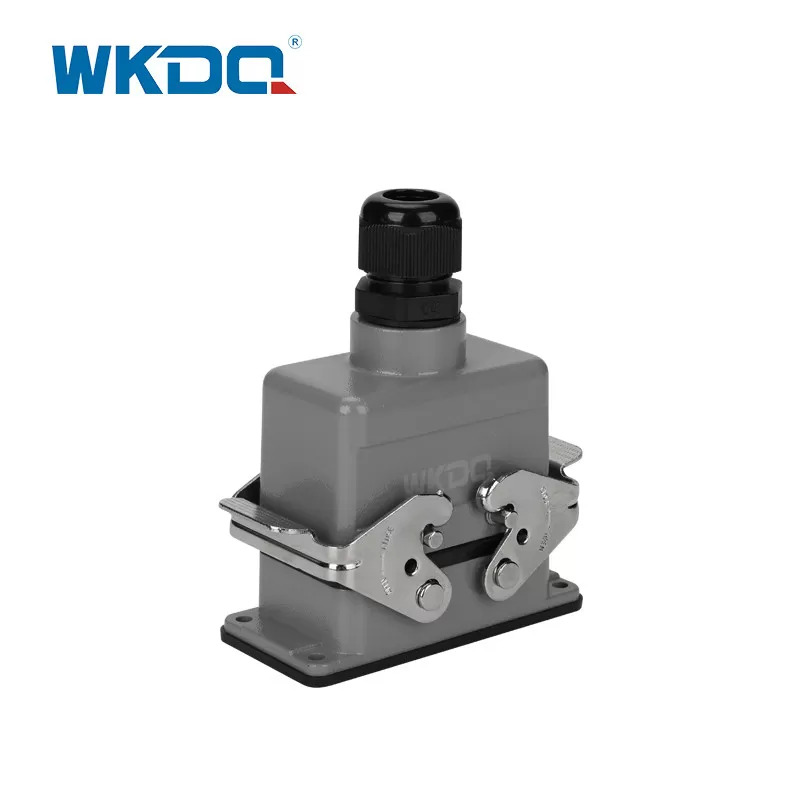

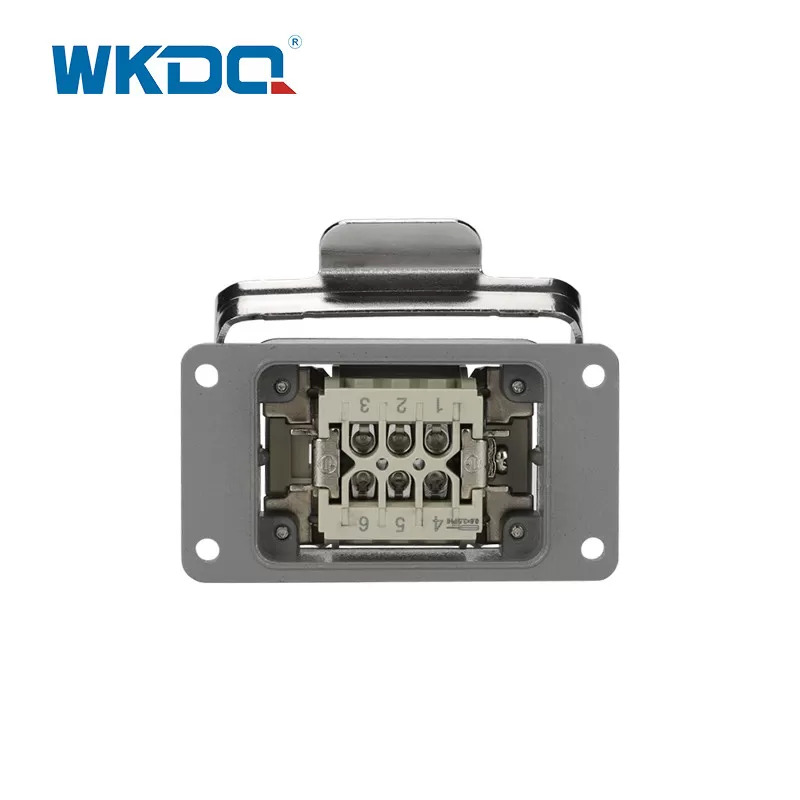

Anti Corrosion IP65 Waterproof Electrical Connectors WHE06D

The WKDQA Anti Corrosion IP65 Waterproof Electrical Connectors WHE06D

designed to provide both protection against corrosion and a high level of ingress protection against dust and water. Here's a breakdown of the key features:

Anti-corrosion: These connectors are constructed using materials and coatings that offer resistance to corrosion. Corrosion can degrade the performance and reliability of electrical connectors, particularly in environments with high humidity, moisture, or chemical exposure. Anti-corrosion properties help to protect the connectors from such damage, ensuring their longevity and reliable operation.

IP65 Rating: IP65 is an Ingress Protection rating that signifies the level of protection provided by the connectors against solids (dust) and liquids (water). In the case of IP65, the connectors are effectively protected against dust ingress and water jets from any direction. The "6" in IP65 indicates the highest level of dust-tight protection, while the "5" represents protection against low-pressure water jets.

Waterproof: The waterproof feature of these connectors means that they are designed to prevent the ingress of water even when subjected to low-pressure water jets. This level of waterproofing ensures that the connectors can be safely used in outdoor or damp environments, where protection against water is essential to maintain electrical integrity and prevent damage.

Anti-corrosion IP65 waterproof electrical connectors are commonly utilized in various industries and applications, such as outdoor lighting, marine equipment, industrial machinery, and electrical systems exposed to challenging environments. They are especially beneficial in environments where there is a risk of water exposure, dust accumulation, or corrosive substances.

When selecting these connectors, it is crucial to consider factors such as the specific application requirements, connector size, pin configuration, and the manufacturer's guidelines to ensure compatibility and optimal performance.

TECHNICAL PARAMETERS

No.	PART NO.	Entry Side	Number of contact	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	G (mm)
Heavy-duty connector Voltage/Current: 500V/16A Surface: Sliver-plated Contact resistance: ≤1m ΩCross section: 1.0-2.5mm² (AWG 18-14) Tightening torque: 0.5Nm Stripping lenngth: 7mm
1	WHE06C	Side entry	6	80.0	43.0	52.2	35.0	32.0	70.0	4.3
2	WHE06D	Top entry	6	80.0	43.0	52.2	35.0	32.0	70.0	4.3
3	WHE10C	Side entry	10	93.0	43.0	65.2	35.0	32.0	83.0	4.3
4	WHE10D	Top entry	10	93.0	43.0	65.2	35.0	32.0	83.0	4.3
5	WHE16C	Side entry	16	113.0	43.0	85.5	35.0	32.0	103.0	4.3
6	WHE16D	Top entry	16	113.0	43.0	85.5	35.0	32.0	103.0	4.3
7	WHE24C	Side entry	24	140.0	43.0	112.2	35.0	32.0	130.0	4.3
8	WHE24D	Top entry	24	140.0	43.0	112.2	35.0	32.0	130.0	4.3
9	WHE32C	Side entry	32	113.0	80.5	86.0	73.0	60.0	103.0	4.5
10	WHE32D	Top entry	32	113.0	80.5	86.0	73.0	60.0	103.0	4.5
11	WHE48C	Side entry	48	140.0	80.5	113.0	73.0	60.0	130.0	4.5
12	WH48D	Top entry	48	140.0	80.5	113.0	73.0	60.0	130.0	4.5
