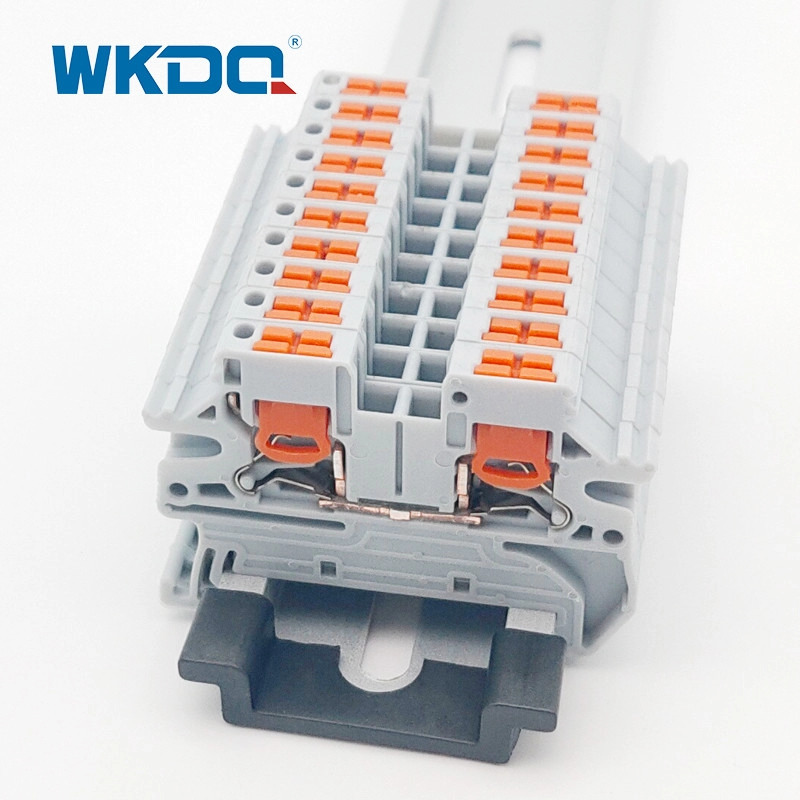

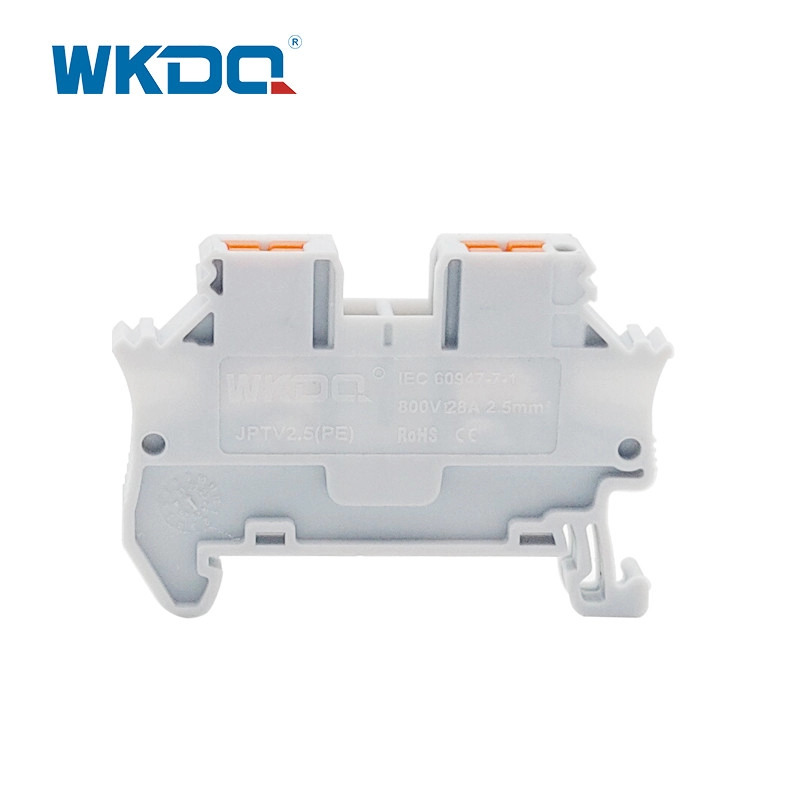

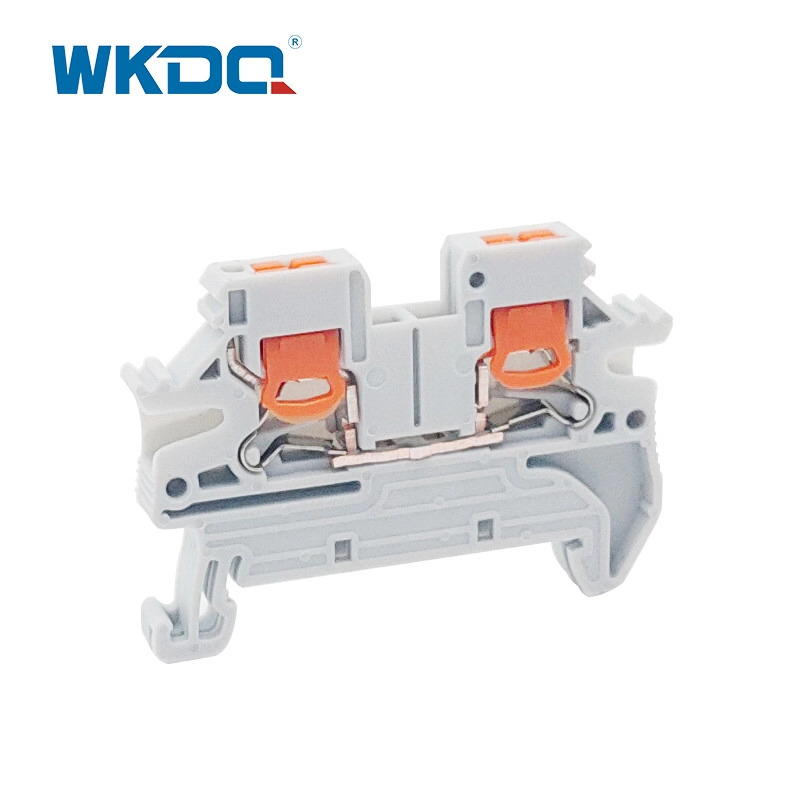

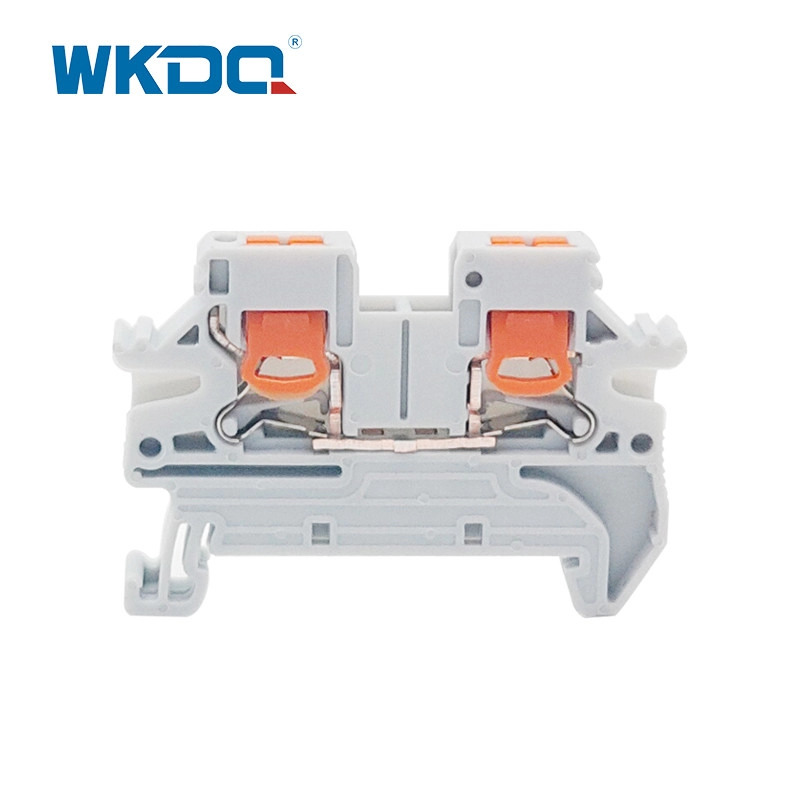

4mm2 Cable Din Rail Push In Terminal Block Anti Inflaming 24 AWG
Place of Origin: China
Brand Name: WKDQ
Certification: CE/RoHS/CQC/ISO 9001
Model Number: JPTV 2.5
Packaging Details: Box
Delivery Time: 2-7 days
Payment Terms: T/T, Paypal, Western Union, etc
Send Inquiry
Product Description
The new PUSH IN modular terminal blocks with their simple handling and compact yet clear design, allow you to benefit from faster installation times and, in turn, from much higher productivity.
Made from engineer Nylon PA 66, Nickle plated Brass.

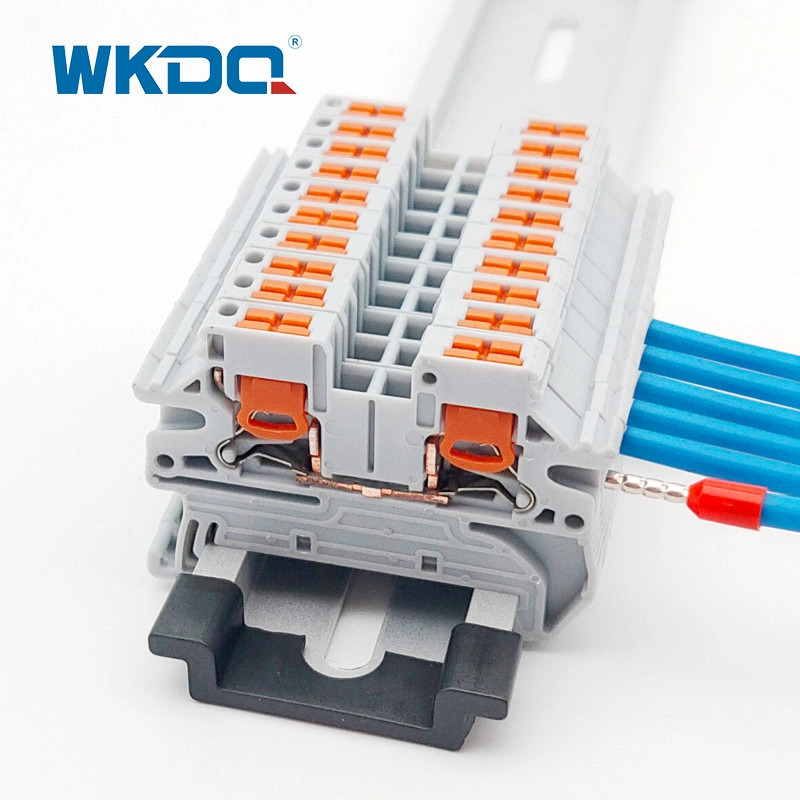

The Push-in connection terminal blocks are characterized by easy and tool-free wiring of conductors with ferrules or solid conductors.

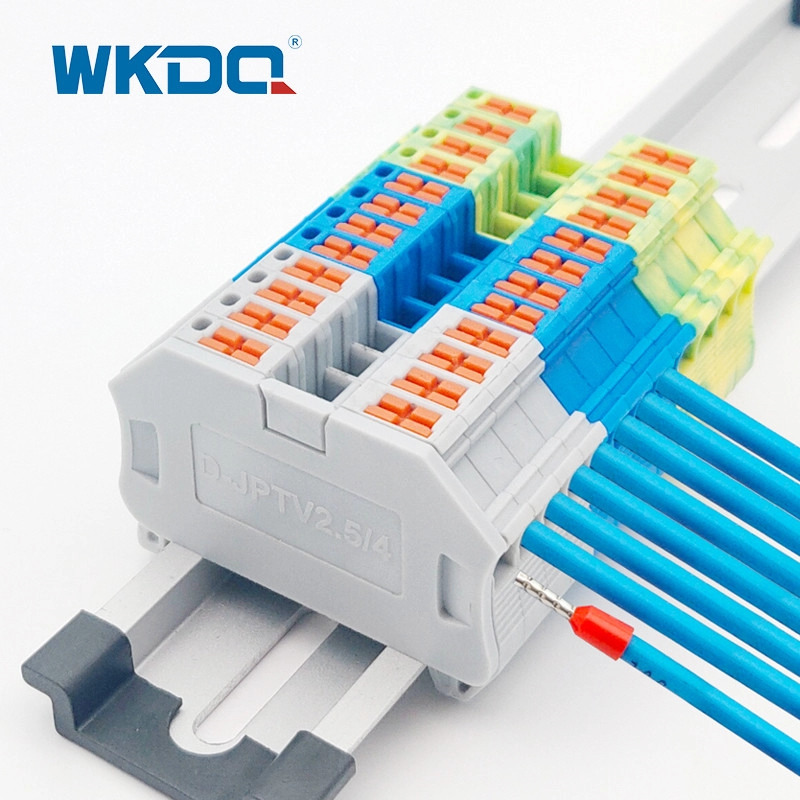

- Clear wiring with no bend radius because conductors are inserted from the side
- Easy-to-identify connection markings on the side of the terminal
- Wire markings are easy to affix and read because conductors are inserted from the side
TECHNICAL PARAMETERS
| Model Number | JPTV 2.5 |

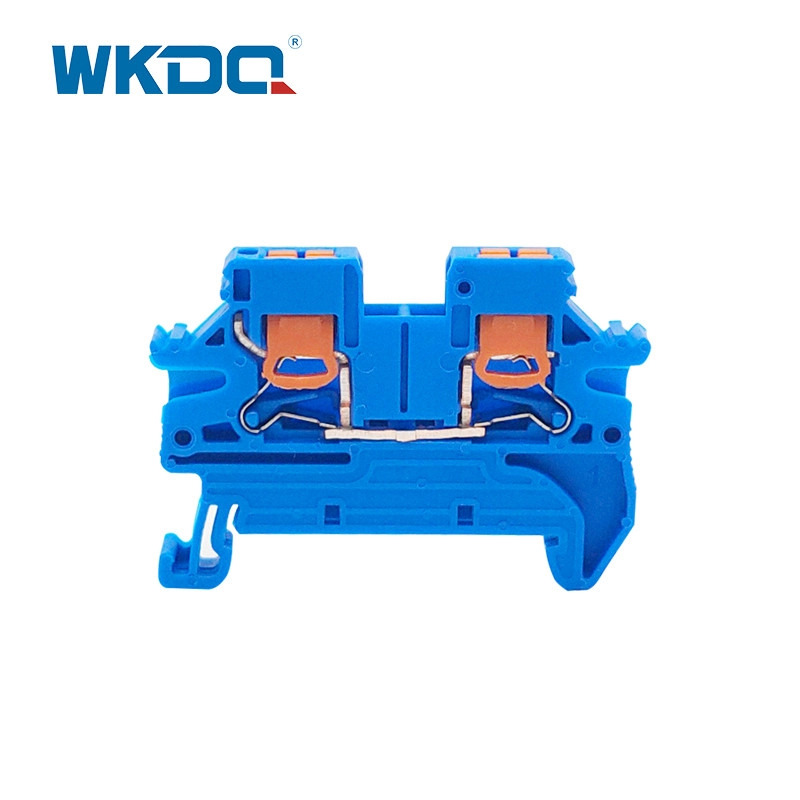

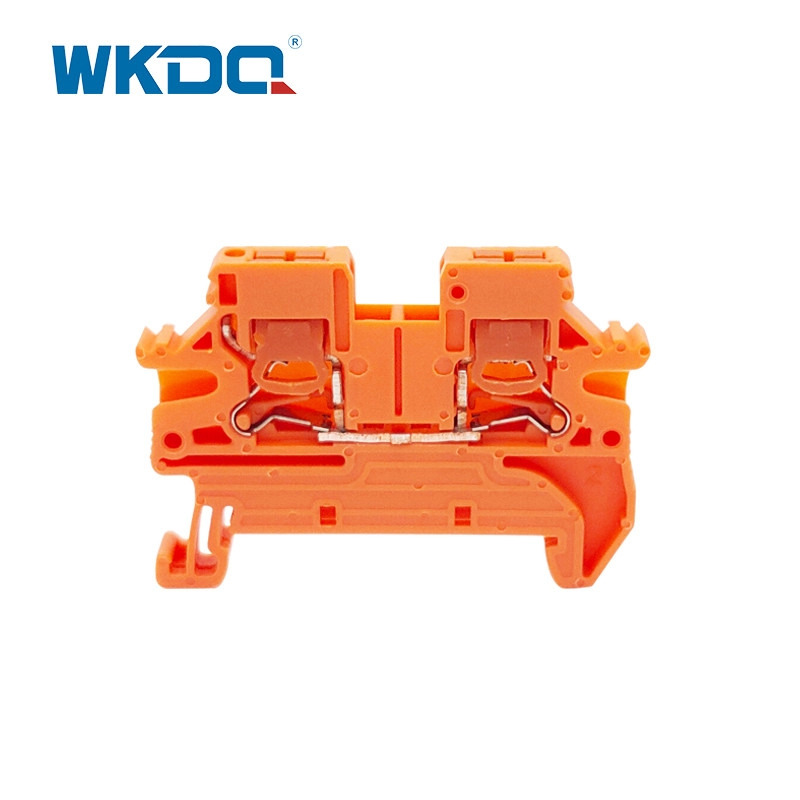

| Color | Grey, Blue, other color can be customized |
| Length/Height/Wide (mm) | 49.4/35.2/5.2 |
| Connection method | Push in connection |
| Material | Anti inflaming Nylon PA66 |
| Rated Voltage/Current | 800V/28A |
| Cross section, solid/soft Cable | 0.2-4mm² / 0.2-2.5mm² |
| Conductor Size | 24-12 AWG |
| Mounting Type | NS 35/7.5 |
| Standard | IEC 60947-7-1 |
| LOGO | WKDQ, OEM serivce is supporting |
| Packing Detail | 5.79g/pc, 100PCS/BOX |
| Certification | CE/RoHS/CQC/ISO 9001 |
