3326-230 Non-woven Fiber Electrical Cabinet Air Filter With The Rotating Parts Waterproof Hood Fit For Current Market
Place of Origin: China
Brand Name: WONKEDQ，WKDQ
Certification: CE, RoHS, CQC
Model Number: 3326-230
Packaging Details: Box
Delivery Time: 2-7 days
Payment Terms: T/T, Paypal, Western Union, etc
Send Inquiry
Product Description
| Model Number: | 3326-230 | Surface Dimension: | 320x320mm |
| Package: | 2.760kgs/pc | Installation Hole Size: | 290x290mm |
| Noise Level: | 59dB | Input Power Rating: | 64W |
| High Light: | electrical enclosure cooling fans , electrical cabinet ventilation fans | ||

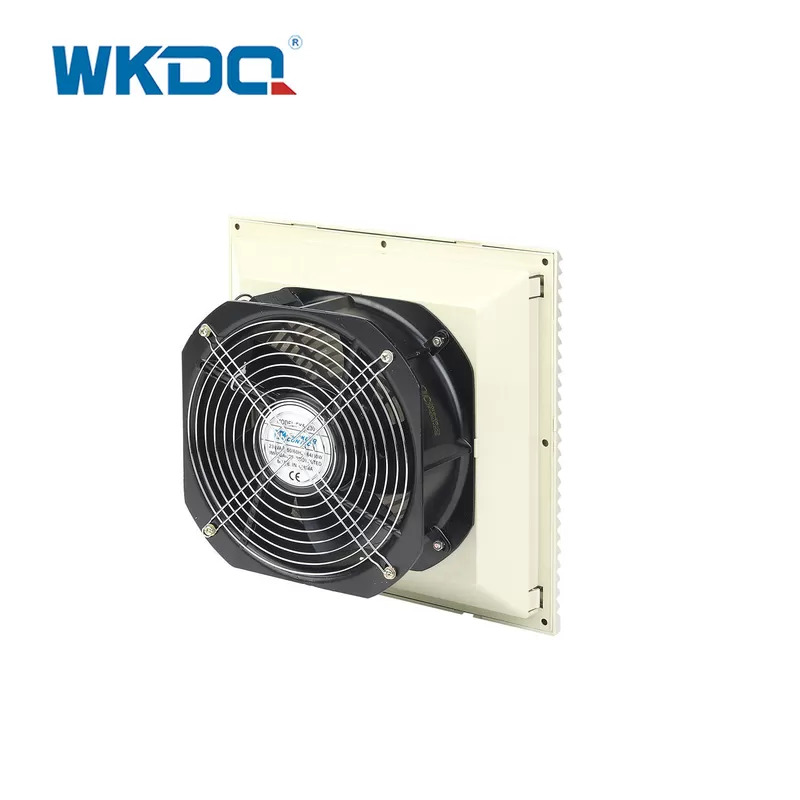

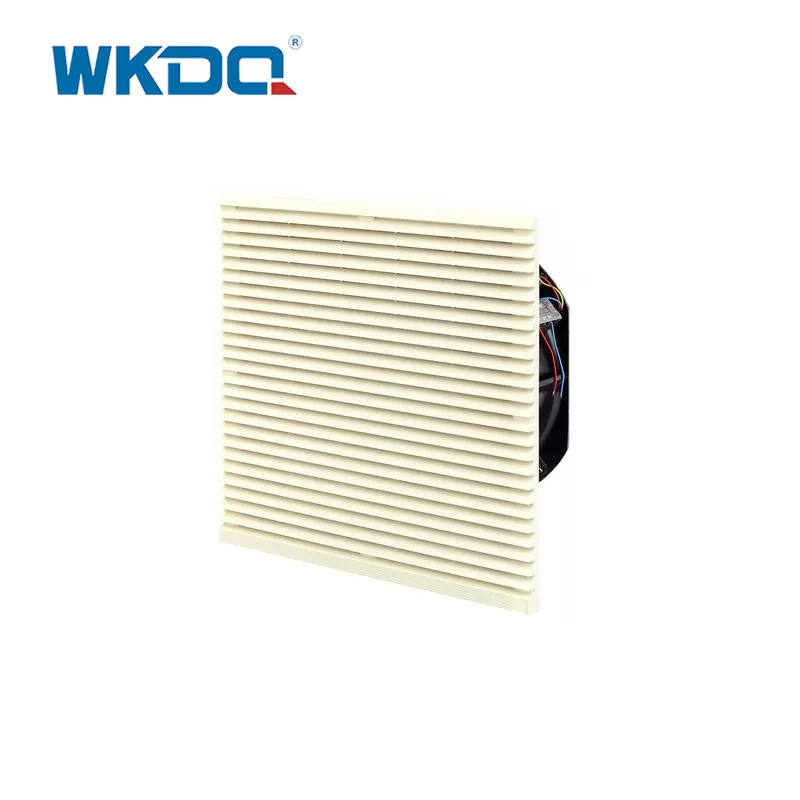

In addition to the easy mounting axial fan, the self-adhesive seal of the mounting frame prevents dust and water from entering the cabinet. The functional design of the intake and exhaust fan hoods very effectively prevents direct infiltration of falling water and dust. The design also provides air channeling which makes the filter fan particularly quiet in operation.
Frame material is made from heat resistance and impact ABS.
Reliable and safe function.
Other dimension can be customized.
Made from safe and high quality material.
It can prevent dust particles more than 10 microns.
All fan filters' dimensions comply with the market standards.
The protection level of sealed box can reach IP54.
The waterproof hood can make the protection level up to IP55.
It is easy to change the filter pad by using the groove handle on shutter.
The design adapt to current market requirement:Super flat,Fast installation,High power.
The rainproof function of ventilation cascade can prevent mechanical damage and damp entering.
The fan filter unit is easy to fix on the enclosure wall.
TECHNICAL PARAMETERS
| Filter unit Part No. | 3326-300 |
| Fan with filter unit Part No. | 3326-230 |
| Unimpeded air flow | 230m³/h |
| Noise level | 59dB |
| Surface dimension (mm) | 320x320 |
| Installation hole size (mm) | 290x290 |
| Voltage/Current | 230V/280mA |
| Input Power Rating | 64W |
| Temperature range | -10℃~+55℃ |
| Packing detail: 3326-300 (Filter unit) | 0.589kgs/pc |
| Packing detail: 3326-230 (Fitler with Fan) | 2.760kgs/pc |
| Certificate | CE, RoHS, CQC |
