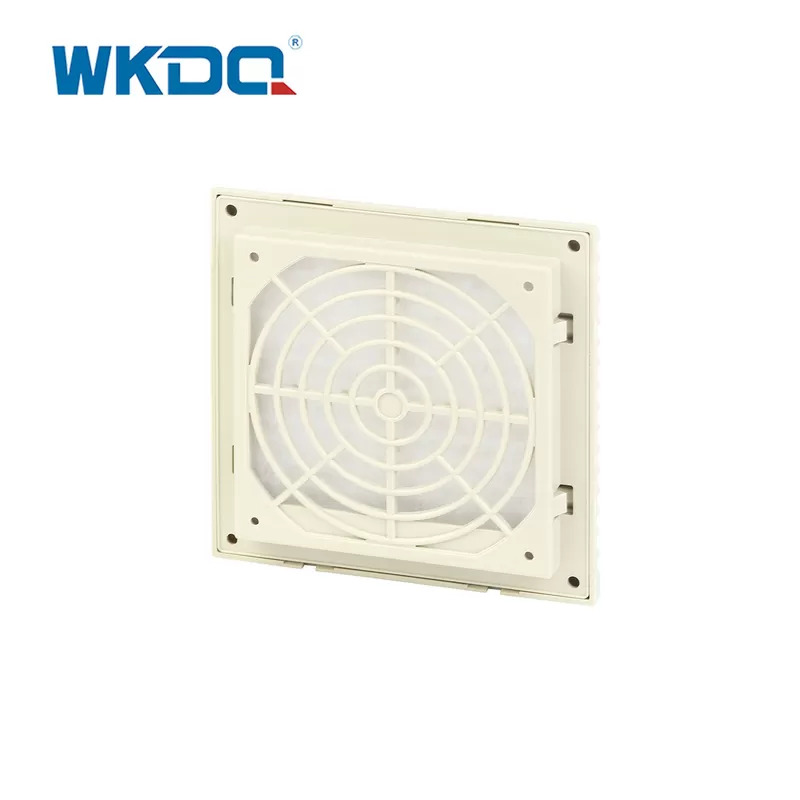

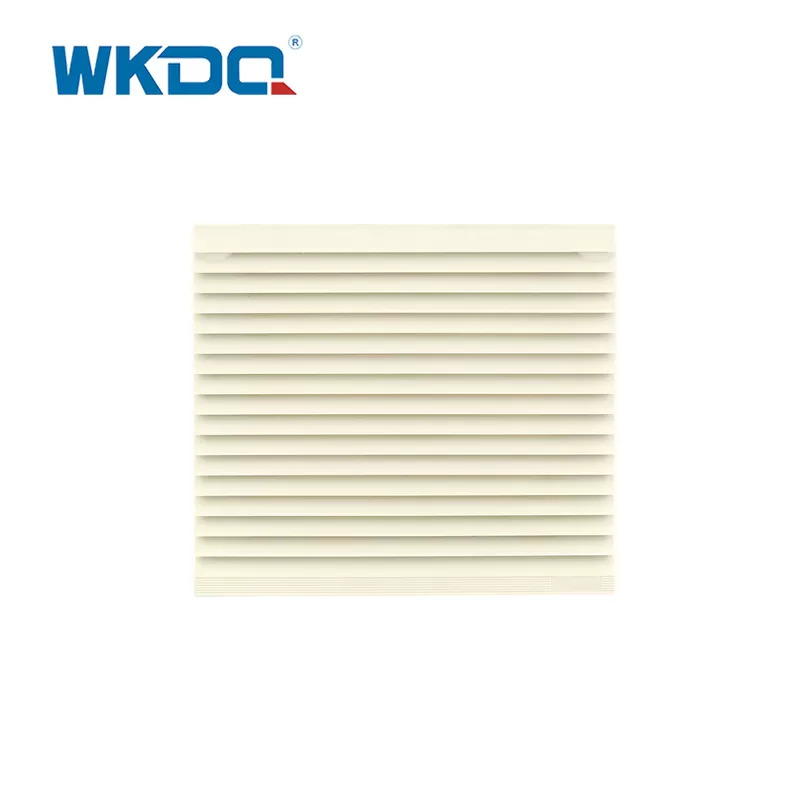

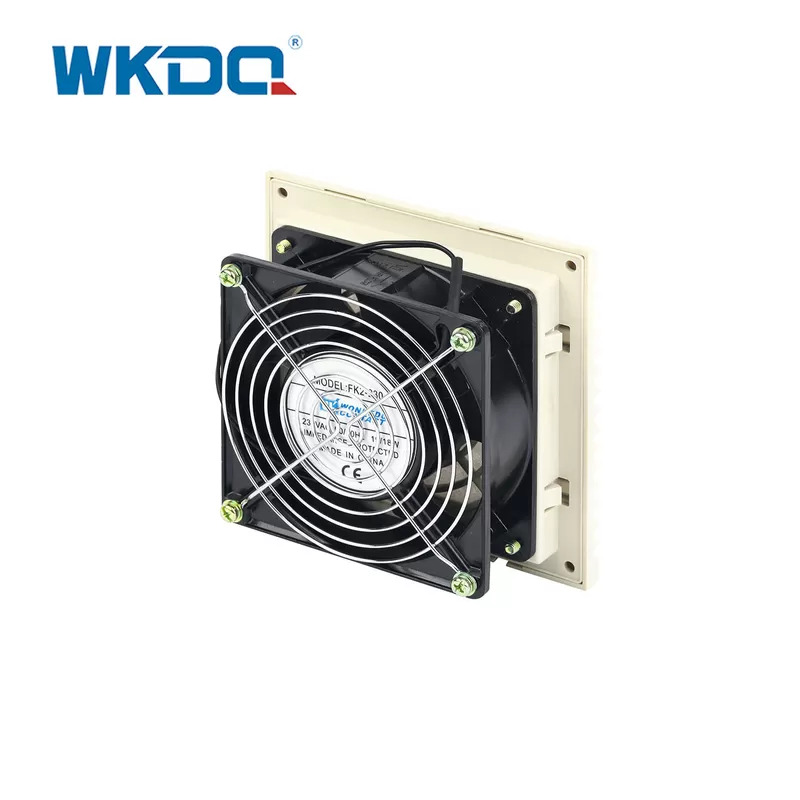

3322-230 Industrial Electrical Cabinet Air Filter , Electrical Panel Air Filter 19W Input Power
Place of Origin: China
Brand Name: WONKEDQ，WKDQ
Certification: CE, RoHs, CQC,etc
Model Number: 3322-230
Packaging Details: Box
Delivery Time: 2-7 days
Payment Terms: T/T, Paypal, Western Union, etc
Send Inquiry
Product Description
| Model Number: | 3322-230 | Material: | ABS |
| Unimpeded Air Flow: | 55m³/h | Packing Unit: | 0.489kgs/pc |
| Mounting Hole Size: | 124x124mm | Input Power: | 19W |
| High Light: | electrical enclosure cooling fans , electrical cabinet cooling fans | ||
Filter fans will cool enclosures to a level slightly above the ambient temperature outside the cabinet. To cool enclosure contents, the fans draw filtered ambient air into the cabinet. At the same time, the heated air within the cabinet is blown out an exhaust.
Frame material is made from heat resistance and anti-flame ABS.
Other dimension can be customized.
Reliable and safe function.
Made from safe and high quality material.
All fan filters’ dimensions comply with the market standards.
It can prevent dust particles more than 10 microns.
The protection level of sealed box can reach IP54.
The waterproof hood can make the protection level up to IP55.
It is easy to change the filter pad by using the groove handle on shutter.
The design adapt to current market requirement:Super flat,Fast installation,High power.
The rainproof function of ventilation cascade can prevent mechanical damage and damp entering.
Click-fit design quickly installs into enclosure wall
OEM service is supported.
TECHNICAL PARAMETERS
| Filter unit Part No. | 3322-300 |
| Fan with filter unit Part No. | 3322-230 |
| Unimpeded air flow | 55m³/h |
| Noise level | 46dB |
| Surface dimension (mm) | 148.5x148.5 |
| Installation hole size (mm) | 124x124 |
| Voltage/Current | 230V/120mA |
| Input Power Rating | 19W |
| Temperature range | -10℃~+55℃ |
| Packing detail: 3322-300 (Filter unit) | 0.102kgs/pc |
| Packing detail: 3322-230 (Fitler with Fan) | 0.489kgs/pc |
| Certificate | CE, RoHS, CQC |
