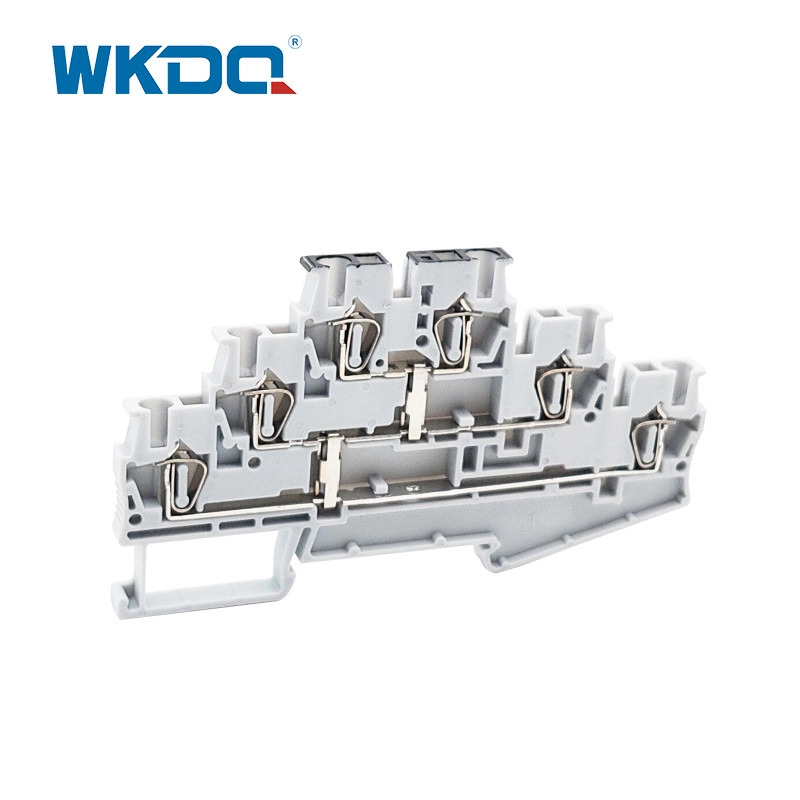

3 Layer Spring Cage Space Saving Terminal Block With Equipotential Bonder

Product Details:
Place of Origin: China
Brand Name: WONKEDQ
Certification: CE/RoHS/CQC/ISO 9001
Model Number: JST 2.5-3L-PV
Packaging Details: Box
Delivery Time: 2-7 days
Payment Terms: T/T, Paypal, Western Union, etc

Send Inquiry

Product Description

These standard multilevel terminal blocks, available in double deck and triple deck configurations, are highly suitable for use in limited spaced areas. The triple level terminal blocks with spring cage technology offer high-density wiring and simplified, cost-effective sensor wiring solutions. With three levels, it becomes possible to wire one terminal block per sensor, eliminating the need for three separate single-level blocks per sensor as required in traditional methods. This design not only saves a significant amount of space but also enables wiring in narrow areas.

Key features of the spring cage triple level terminal blocks include:

Safe and secure connection, ensuring reliable performance.

Long-lasting durability for extended operational life.

Stable and low contact resistances, providing consistent and reliable conductivity.

Corrosion-proof contact points for enhanced durability.

Guaranteed high-quality materials, ensuring superior performance and longevity.

Perfectly suited for electrical machine control systems, offering safe and stable performance.

Designed as standard sensor terminal blocks, they can also incorporate LED lights to indicate the presence of voltage.

Made from engineering flame retardant nylon PA66 with brass metal, ensuring optimal performance and safety.

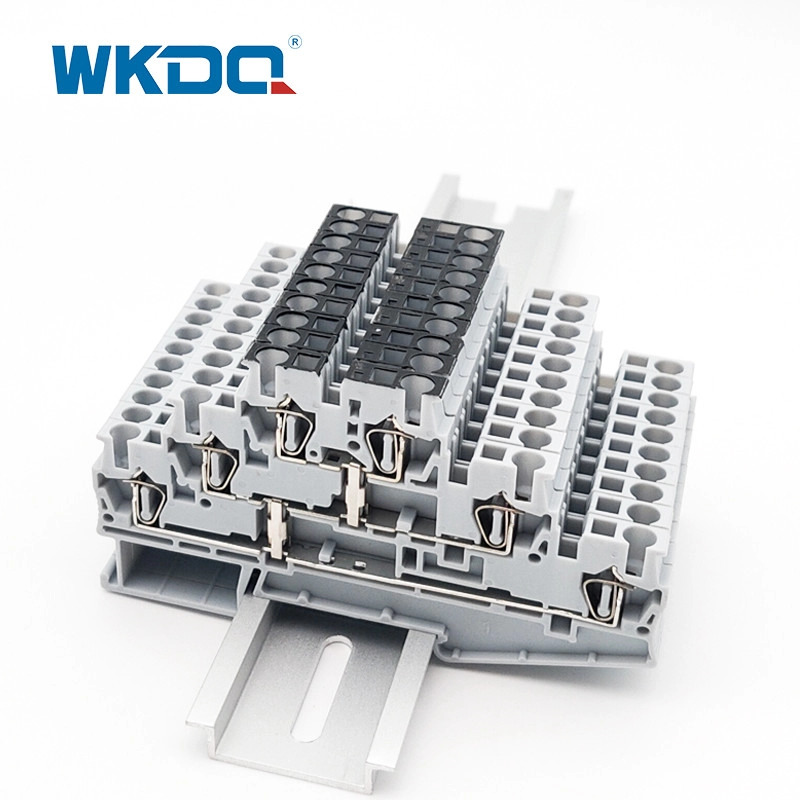

Universal feet that can be easily snapped onto Din Rail for convenient installation.

Possibility to insert bridges in the center of the terminal block for creating distribution.

These terminal blocks provide the necessary potentials and a protective conductor connection within a single terminal housing, streamlining the wiring process and saving valuable space.


Technical Parameters

Model Number JST 2.5-3L-PV

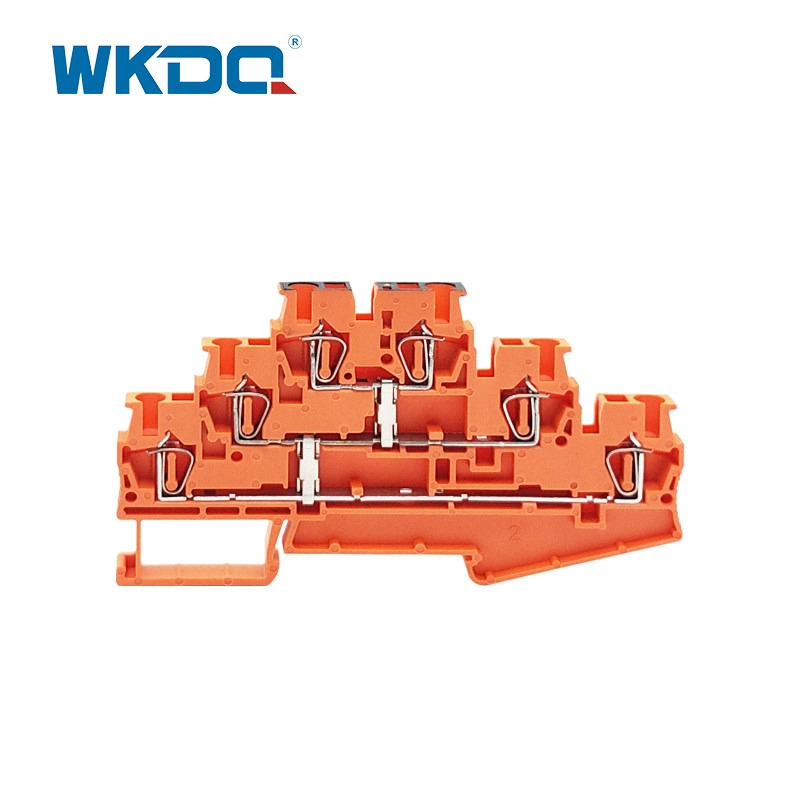

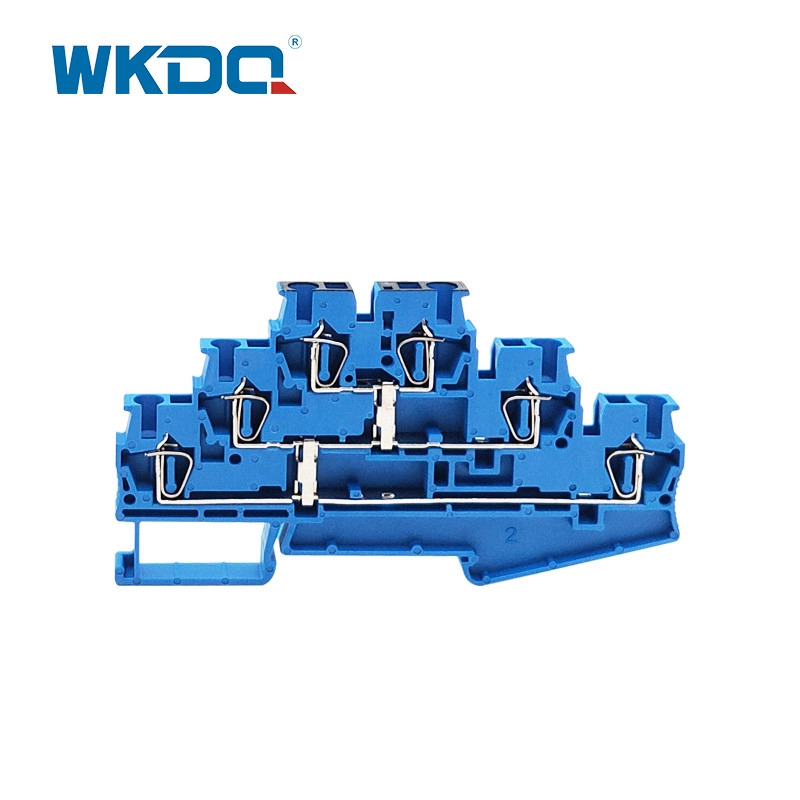

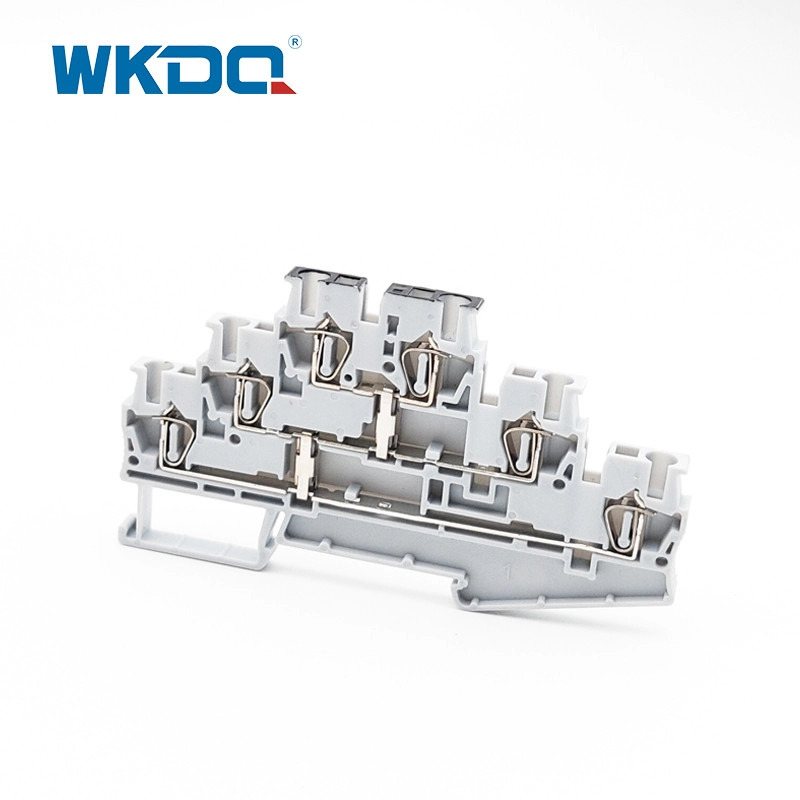

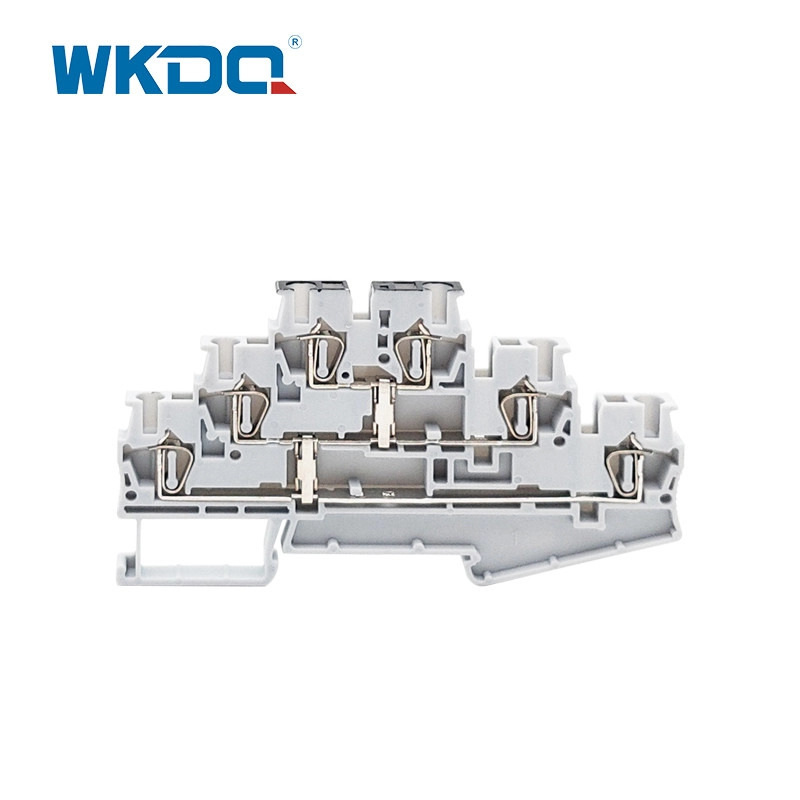

Color Grey, Blue, Orange
L/H/W(mm) 99.5/57/5.2
Connection Spring connecting
Material Flame retardants Nylon PA66
Standing Voltage/Current 500V/28A
Cross size, solid/stranded wire 0.2-4mm2 / 0.2-2.5 mm2
Conductor Dimension 28-12 AWG
Mounting Type DIN 35mm
Standard IEC 60947-7-1
LOGO Customized logo are supported
Packing 17.07g/pc, 50PCS/BOX,1000PCS/CTN
Certificates CE/RoHS/CQC/ISO 9001
