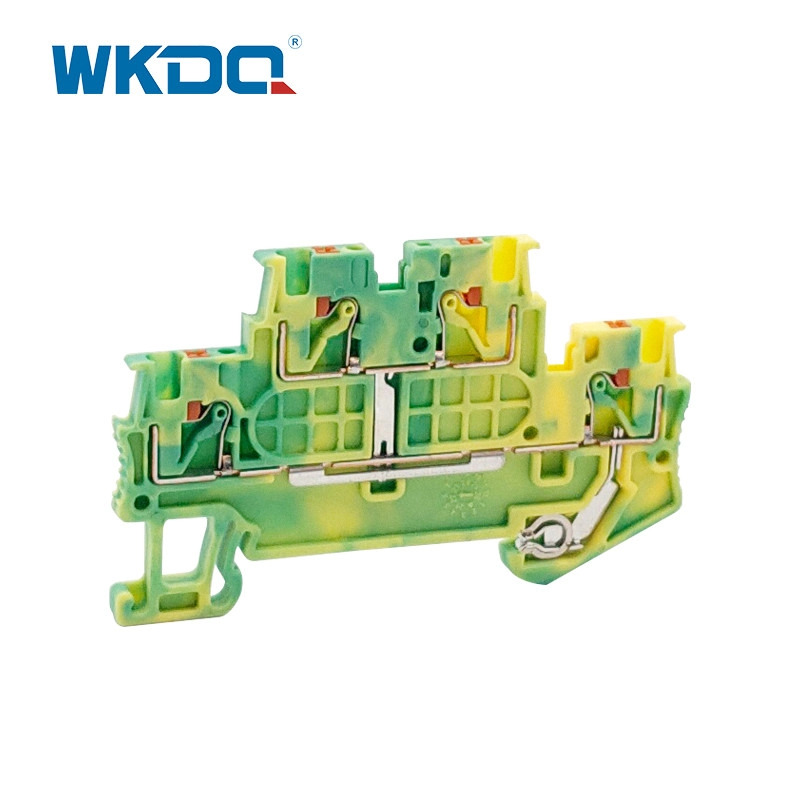

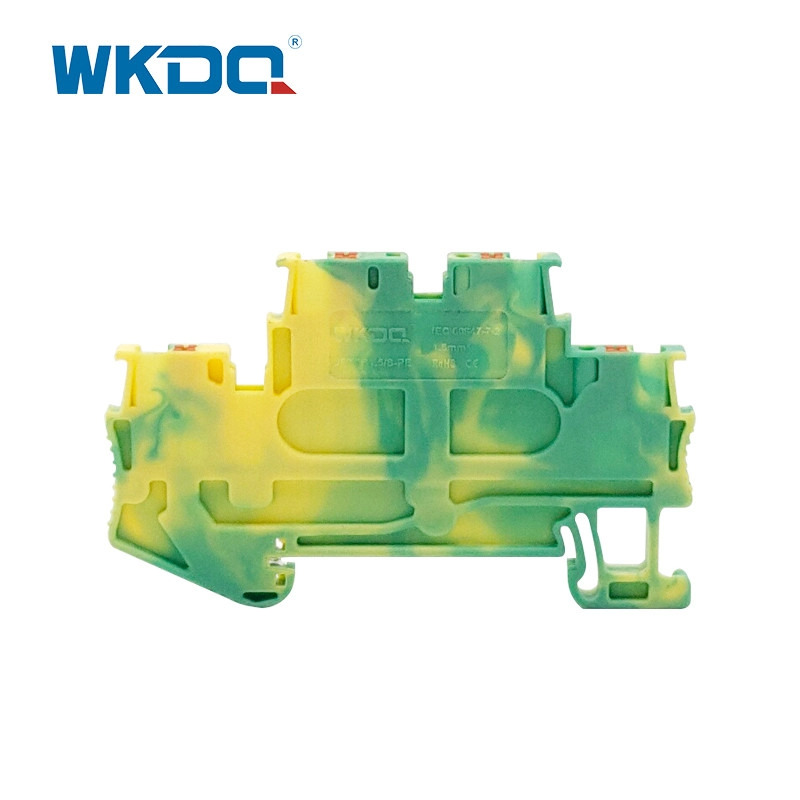

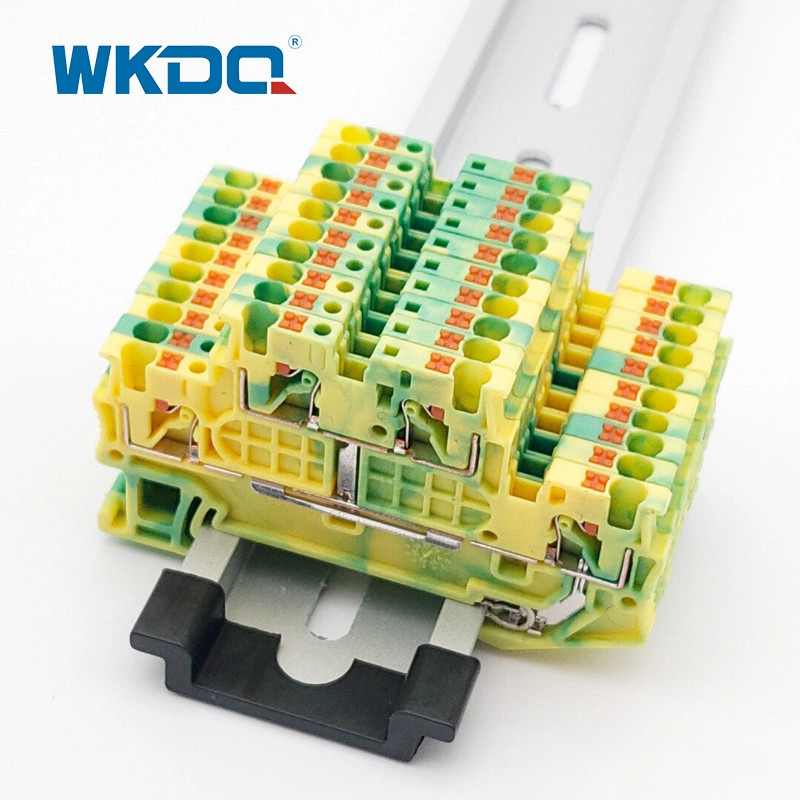

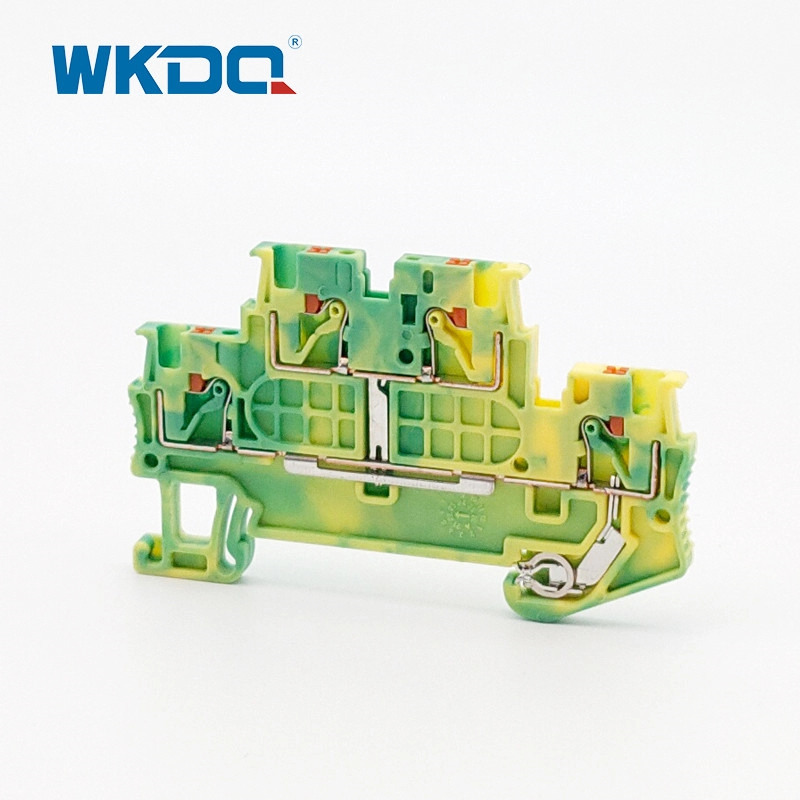

2 Level Push In Din Rail PE Ground Terminal Block JPTTB 1.5 PA66 V0
Place of Origin: China
Brand Name: WKDQ
Certification: CE/RoHS/CQC/ISO 9001
Model Number: JPTTB 1.5/S-PE
Packaging Details: box
Delivery Time: 2-7 days
Payment Terms: T/T, Paypal, Western Union, etc
Send Inquiry
Product Description
2 Level ultra-thin thickness saving space.With advanced push in technology, wiring easily and quickly, just push in directly and realse wire just push the orange button. Insert forces reduced by 50%. V0 Flame resistant PA66 material and copper conductor.
it is suitable for various applications.
l The Tool- Free design and the push in modular terminal block and the direct push-in connection enable easy
l Convenient insertion, thanks to 50% lower insertion force.
l Safe wiring and operation, thanks to the color-coded push button.
l The push button permits easy conductor release using any type of tool, without direct contact with live parts.
TECHNICAL PARAMETERS
| Model No. | JPTTB 1.5/S-PE |
| Color | Green-yellow |
| Length/Height/Wide (mm) | 66*41*3.5 |
| Connection method | Push-in connection |
| Material | Flame resistant Nylon PA66 V0 |
| Rated Voltage/Current | 500V/16A |
| Cross section, solid/soft Cable | 0.14-1.5mm² |
| Conductor Size | 26-16AWG |
| Mounting Type | DIN Rail NS 35 |
| Standard | IEC 60947-7-1 |
| LOGO | WKDQ, LOGO can be customized |
| Packing Detail | 6.4g/pc, 50PCS/BOX |
| Certification | CE/RoHS/CQC/ISO 9001 |
| Place of origin |
ZheJIang, China |
